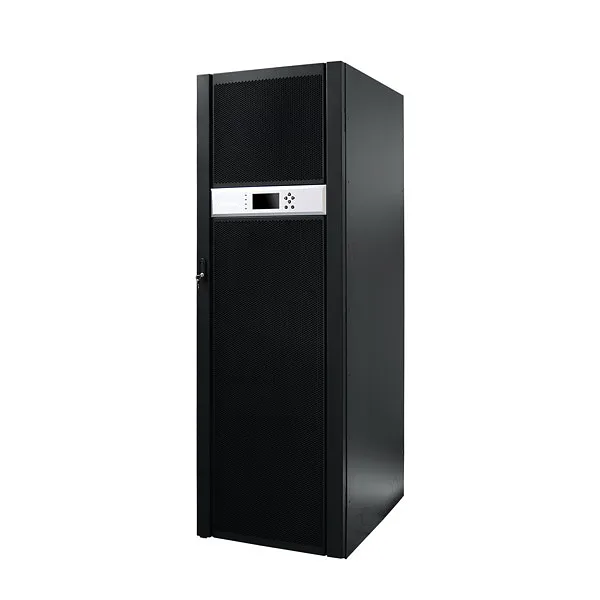

UPS SolarX SX-NE33120H
Specify the price at the manager
12 місяців
в Україні
поставка
підтримка
The SolarX SX-NE33120H UPS with a pure sine wave output and high conversion efficiency has a low maximum heating temperature during operation and a relatively low noise level. This uninterruptible power supply is a solution for providing uninterrupted power to industrial facilities, server rooms, medical equipment, etc. Thanks to the external battery and the wide battery voltage range, autonomous operating time can be tailored to specific equipment and tasks assigned to the UPS.
Key advantages and product features:
- Guarantee of stable and safe operation
The UPS is equipped with protection against overload, overcharge and deep discharge of the battery, which guarantees safe use of both the UPS and the devices connected to it. The output ports are equipped with a noise filtering function, so the uninterruptible power supply can be used in areas with poor-quality electricity.
- Long autonomous operating time
This UPS has an external battery, which allows different numbers of batteries to be connected due to the wide range of total battery voltage, as well as fairly flexible adjustment of autonomous operating time by replacing the batteries with others of lower or higher capacity, depending on the tasks at hand.
- Safe and reliable automatic protection
In case of critical temperature rise during improper operation of the UPS, voltage exceeding the set maximum and minimum values, overcharge, or deep battery discharge, automatic protection is triggered, which opens the electrical circuit of the uninterruptible power supply.
- Pure sine wave
A pure sine wave is very important for equipment that requires high-quality electricity, such as: server and telecommunications equipment, devices used in the medical field, industrial equipment, etc. Also, in the absence of a switching power supply in the devices, a pure sine wave uninterruptible power supply will significantly extend the life of your devices.
Delivery «New Mail»
On average, delivery takes 1-2 days. If necessary, our managers can tell you the exact date and cost of delivery. This delivery method is suitable for people who want to quickly receive their order.
Delivery «New Mail» courier delivery
On average, delivery takes 1-2 days.
Pickup from the office
You can pick up an order from our office in the city of Kiev: st. Liteiny 7. Schedule: Mon – Fri from 9:00 to 18:00.
| Принцип действия |
On-line (непрерывный, двойное преобразование) |
| Design type | Напольный (Tower) |
| Мощность, полная / активная |
120кВА / 108кВт |
| Input | |
| Input voltage range | 285 - 485 В AC |
| Grid frequency | 50/60 Гц (автоматически) |
| Диапазон частоты сети |
40 - 70 Гц |
| Power factor | ≥ 0,99 |
| Искривление входного напряжения (TDH) |
Линейная нагрузка: ≤ 1% Нелинейная нагрузка: ≤ 4% |
| Output | |
| Output voltage | 380/400/415 В АС ± 1% (3P + N ± 1) |
| Output frequency | 50/60 Гц ± 1% |
| Sine wave shape | Чистая синусоида |
| Switch-over time to battery | 0 мс |
| Количество фаз |
3 фазы вход / 3 фазы выход |
| КПД |
96% |
| Емкость перегрузки |
110% - 150%: 10 мин. > 150%: 1 мин. |
| ECO режим |
Yes |
| Battery | |
| Battery | Внешние |
| Battery type | Необслуживаемая герметичная свинцово-кислотная батарея с защитой от утечек. (VRLA) |
| Quantity | 16-20 (конфигурируемый) |
| Battery voltage | ± 180/192/204/216/228/240 В (настраиваемая) |
| Information display | |
| ЖК-дисплей |
Yes |
| Light indication | Yes |
| Audible alarm | Yes |
|
Коммуникации и дополнительное оснащение | |
| RS-232 |
Yes |
| RS-485 |
Yes |
| SNMP слот |
Yes |
| Разъем аварийного отключения (EPO) |
Yes |
| Режим байпас (обходная линия) |
Yes |
| General characteristics | |
| Short-circuit protection | Yes |
| Overload protection | Yes |
| Защита от всплесков напряжения |
Yes |
| Защита от глубокого разряда батарей |
Yes |
| Защита от перезаряда батарей |
Yes |
| Защита от завышенного и заниженного напряжения |
Yes |
| Микропроцессорное управление |
Да (централизованное с возможностью обновления) |
| Dimensions | 800 x 600 x 1876 мм |
| Weight | 311 кг. |
| Automatic fuse | Yes |
| Система охлаждения |
Принудительное охлаждение воздуха |
|
Окружающей среды | |
| Operating temperature | 0 ° С - 55 ° C |
| Protection rating | IP21 |
| Relative humidity at 25°C | 10 - 95% (без конденсата) |
| Warranty | |
| UPS | 5 лет |
