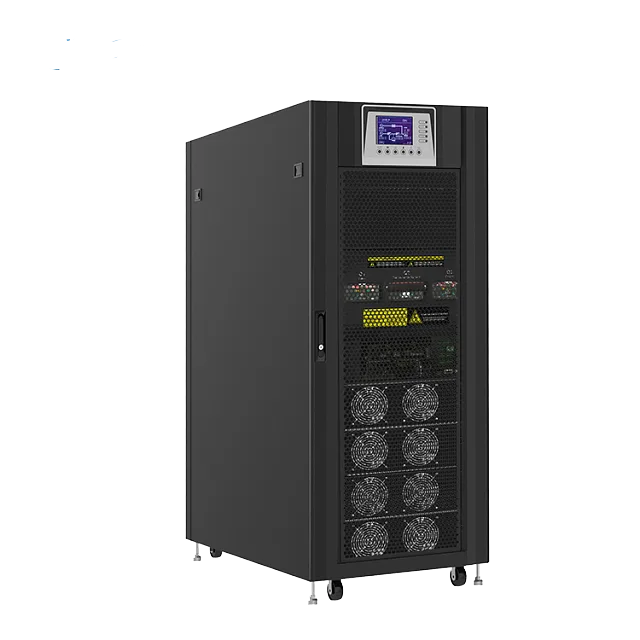

UPS SolarX NE2060
Specify the price at the manager
12 місяців
в Україні
поставка
підтримка
UPS SolarX NE2060 with a output pure sine wave and high conversion efficiency has a multi-stage fan for automatic internal temperature regulation, low maximum heating temperature during operation and a fairly low noise level. This UPS has a modern modular design and allows power modules to be serviced and replaced without disconnecting the UPS load
Key advantages and product features:
Guaranteed stable and safe operation
The UPS is equipped with protection against overload, overcharge and deep discharge of the battery, as well as a voltage regulator, ensuring safe use of both the UPS and the devices connected to it. The output ports are equipped with a noise filtering function, so the uninterruptible power supply can be used in areas with poor-quality electricity.
Simple connection
To commission the UPS, you simply need to connect it to the mains and to the power consumers. It is so simple that connecting the UPS takes less than a minute.
Safe and reliable automatic protection
In the event of a critical temperature rise due to UPS malfunction, voltage exceeding the set maximum or minimum values, overcharging, or deep battery discharge, automatic protection will trigger and break the UPS electrical circuit.
Unique design
This UPS has a modular design with a modern architecture that provides:
- connection of input cables using a 5-wire TN-C-S system;
- the ability to replace and service power modules without disconnecting the UPS load;
- each power module has an internal control system independent of the UPS overall control system and other UPS subsystems;
- electronic and mechanical bypass rated for the full UPS power, located in the same cabinet as the power modules and the control system;
- if one cooling fan fails, each power module continues to operate normally
Delivery «New Mail»
On average, delivery takes 1-2 days. If necessary, our managers can tell you the exact date and cost of delivery. This delivery method is suitable for people who want to quickly receive their order.
Delivery «New Mail» courier delivery
On average, delivery takes 1-2 days.
Pickup from the office
You can pick up an order from our office in the city of Kiev: st. Liteiny 7. Schedule: Mon – Fri from 9:00 to 18:00.
| Model | NE2060 |
| Architecture type | on-line по технологии двойного преобразования с внешними АКБ |
| Apparent power | 60 кВА |
| Output power | 60 кВт |
Мощность одного силового модуля |
20кВт |
Максимальное количество модулей |
3 |
| Input | |
| Rated input voltage | 380 В (380/400/415 В) |
Диапазон напряжения без перехода на АКБ (при 100% нагрузке) |
295 - 500 В |
Диапазон напряжения без перехода на АКБ (при 50% нагрузке) |
160 - 500 В |
Входной коэффициент мощности ИБП |
0,99 |
| Grid frequency | 50/60 Гц (автоматический выбор) |
Защита от электромагнитных и радиочастотных помех |
Yes |
Уровень искажений входного тока (THDi) при линейной нагрузке |
<0.6% |
| Number of phases, input/output | 3/3 |
| Output | |
| Rated output voltage | 380 В (380/400/415 В) |
Выходное напряжение при работе от АКБ |
230 В ± 5% |
Входной коэффициент мощности ИБП |
1,0 |
КПД при работе от сети при 100% нагрузке |
96 % |
Стабильность напряжения: 100% Статическая / динамическая |
±1% / ±2% |
Уровень искажений выходного напряжения THDu: линейное / нелинейное нагрузки |
<1% / <2% |
| Output frequency | 50Гц ±0,01 Гц |
| Transfer time to battery | 0 мс |
|
Время работы при перегрузке при работе от электросети: • 105% перегрузки • 120% перегрузки • 130% перегрузки • 160% перегрузки •> 160% перегрузки |
Без ограничения времени 60 минут 10 минут 1 минута 20 секунд |
| Sine wave shape | Чистая синусоида |
| Bypass | |
Автоматический байпас |
Статический байпас |
Сервисный байпас |
Стандартно |
| Battery | |
| Battery type | Герметичные, свинцово-кислотные, необслуживаемые (VRLA AGM) |
Размещение аккумуляторных батарей |
Отдельная батарейная шкаф, который имеет жесткую устойчивую конструкцию, не требует дополнительного бокового крепления |
Размеры батарейной шкафы (ДхШхВ) |
1400х700х1500 мм |
Габариты батарейной шкафы |
площадь – 0,98 м2, высота – 1,5 м |
Емкость и количество батарей |
40х65Аг |
| Charge time | До 8 часов |
Максимальный зарядный ток |
20А |
Срок службы АКБ в буферном режиме эксплуатации при температуре окружающей среды 20 ° C |
12 лет |
Время работы при 50% нагрузке (30 кВт) |
≥ 60 мин |
Время работы при 100% нагрузке (60 кВт) |
≥ 30 мин |
| Alarm | |
| Low battery | При работе от АКБ и низком заряде четыре коротких сигнала каждую секунду и заряд АКБ |
| Overload | Гудок. Непрерывное звучание сигнала и уровень нагрузки на ИБП |
| Battery replacement error/indication | Непрерывное звучание сигнала и символ на экране |
| UPS control | |
Мониторинг ИБП |
Сенсорный ЖК дисплей с мнемосхемой и клавиатурой, общий на ИБП и панели управления на каждом силовом модуле |
| Software | ПО для контроля ИБП через коммуникационные порты |
Интерфейс связи |
RS232 / RS485 / Web / SNMP |
| General characteristics and functions | |
| Information display | Сенсорный ЖК-экран на лицевой панели |
Кнопки управления ИБП |
Yes |
Индикация и светодиоды |
Yes |
| Voltage stabilizer (AVR) | Yes |
| Cold start function | Yes |
автоматический выключатель |
Yes |
Самодиагностика с отображением состояния компонентов ИБП на дисплее |
Yes |
| Short-circuit protection | Yes |
| Overload and voltage surge protection | Yes |
| Overheat protection | Yes |
| Deep discharge protection | Yes |
Размещение ИБП |
Отдельный шкаф, которая имеет жесткую устойчивую конструкцию, не требует дополнительного бокового крепления |
Габариты шкафа ИБП |
площадь - 0,5 м2, высота - 1,5 м |
| UPS dimensions (LxWxH) | 1000х500х1475 мм |
| Weight | 333 кг |
Комплектация |
|
| Environment | |
| Operating temperature | -10 ~ 60 ° С |
| Storage temperature | -20 ~ 60 ° С |
| Relative humidity at 25°C | 0 ~ 93% (без конденсации) |
Уровень акустического шума при 100% |
<58 дБ на расстоянии 1 метр |
Гарантия и соответствие стандартам |
|
Моответствие стандартам |
EN 62040-2: 2005, EN 62040-2: 2006, IEC62040-1-1, CE |
| UPS warranty | 36 месяцев |
Гарантия на АКБ |
24 месяца |
