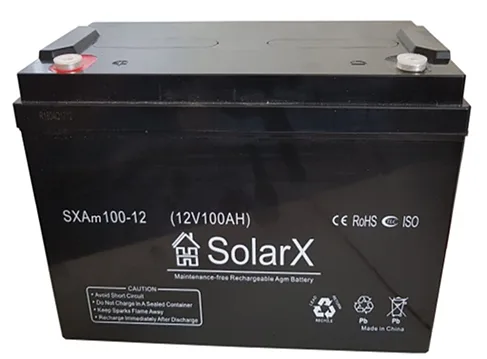

Battery SolarX SXAm 100-12
Specify the price at the manager
Гарантія
12 місяців
12 місяців
Сервіс
в Україні
в Україні
Швидка
поставка
поставка
Технічна
підтримка
підтримка
Application area of SolarX batteries.
Designed for accumulating, storing and transmitting electrical energy in the following fields:
- communication equipment, telecommunications
- electronic equipment
- security alarm systems
- emergency lighting systems
- IT industry
- medicine
- wide use of uninterruptible power supply systems in alternative energy.
Main advantages:
- Long service life (SXAm) of 12-15 years in float mode.
- Only virgin raw materials are used in production.
- Technical quality control at every stage, from production to shipment to the customer (completely eliminates the risk of defective products).
- No harmful impact on the environment or human life.
- The heat-resistant material of the sealed casing ensures maximum safety when using SolarX batteries.
- A wider operating temperature range and support for higher discharge current expand the range of applications.
- The high-density gel electrolyte improves battery efficiency, significantly extending the service life of SolarX batteries and making their use safer. If the casing is damaged, the electrolyte will not leak, so it will not harm the environment.
Complies with the following standards:
- GB/T 19639.1-2005
- IEC60896-21/22:2004
- IEC61056-1/2 :2002
- BS 6290-4:1997
- JIS C 8702-1/2 :2009
Delivery «New Mail»
On average, delivery takes 1-2 days. If necessary, our managers can tell you the exact date and cost of delivery. This delivery method is suitable for people who want to quickly receive their order.
Delivery «New Mail» courier delivery
On average, delivery takes 1-2 days.
Pickup from the office
You can pick up an order from our office in the city of Kiev: st. Liteiny 7. Schedule: Mon – Fri from 9:00 to 18:00.
| Type | Аккумуляторная батарея свинцово-кислотная, герметичная, необслуживаемая (AGM) |
|||||
| Application | для источников бесперебойного питания |
|||||
| Number of cells | 6 | |||||
| Rated voltage | 12 В | |||||
| Напряжение в буферном режиме подзарядки | 13,6 - 13,8 В | |||||
| Напряжение в циклическом режиме подзаряда |
14,7 - 15,0 В | |||||
| Capacity (at 20°C) | 20 ч. (1.8 В/ел) | 100 Ач | ||||
| 5 hr (1.75 V/cell) | 87 Ач | |||||
| 1 hr (1.6 V/cell) | 62 Ач | |||||
| Dimensions | Длина |
330 мм | ||||
| Width | 171 мм | |||||
| Height | 214 мм | |||||
| Total height | 224 мм | |||||
| Weight | 33 кг | |||||
| Terminal type | Т11 (болт М8) | |||||
| Internal resistance (at full charge) | 4,5mΩ | |||||
| Self-discharge | 6 месяцев | 82% | ||||
| 9 months | 73% | |||||
| 12 months | 64% | |||||
| Rated operating temperature | 25 ± 3 °С | |||||
| Допустимая рабочая температура |
Разряд | -20 … +60 °С | ||||
| Charge | -10 … +60 °С | |||||
| Storage | -35 … +60 °С | |||||
| Ток заряда |
30 A | |||||
| Terminal material | Медь | |||||
| Housing material | ABS | |||||
| Ток короткого замыкания |
2600 А | |||||
| Service life in float mode | 12 лет | |||||
| Гарантийный срок |
24 месяца | |||||
| Серийный номер | R001Q2855 | |||||
