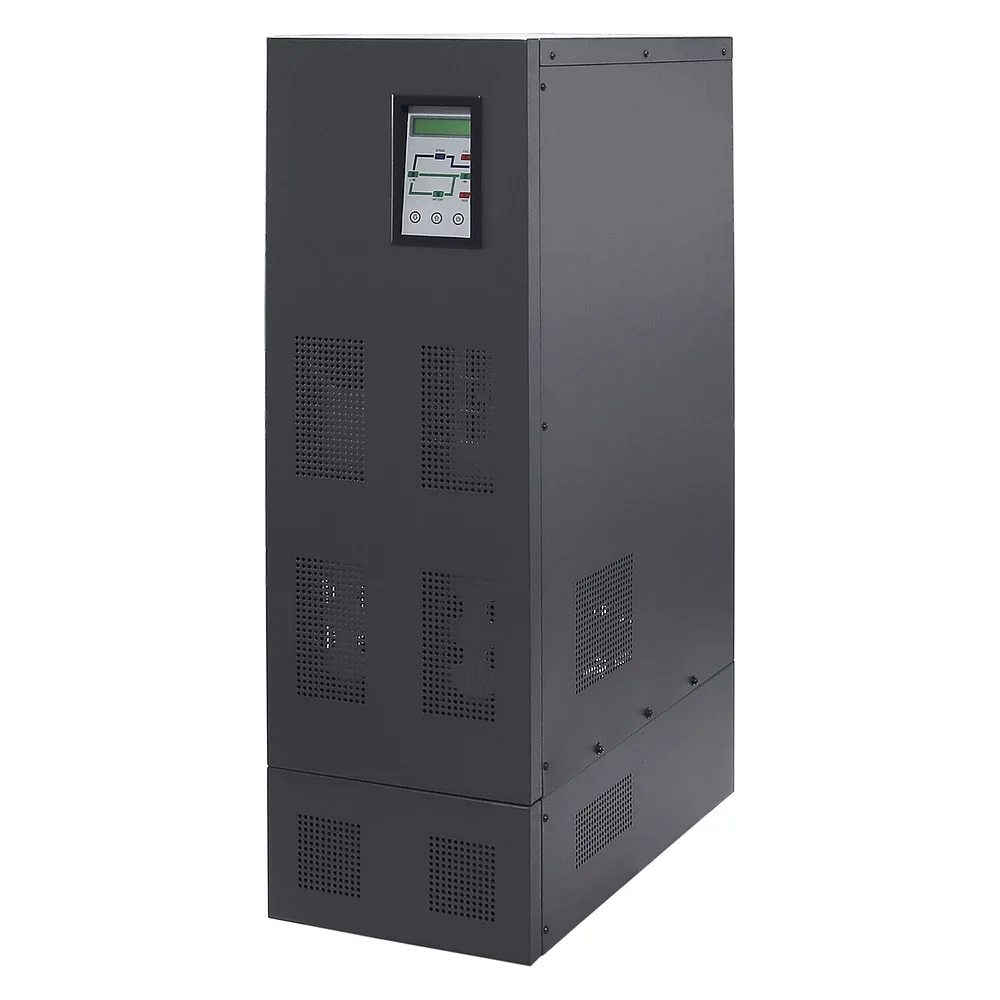

UPS SolarX SX-NE1531

The SolarX NE 10KVA-40KVA series UPS system is connected between the input power source and the load, providing important equipment with power that is not subject to mains interference, unstable voltage or frequency. It switches to the load, continuing to provide power for a set period of time. This UPS series uses a high-frequency double-conversion structure with an output isolation transformer and advanced, fully digital control technology, stable output, clean and uninterrupted power, and complete grid management.

Key advantages and product features:

High design reliability

● Online double-conversion architecture makes the UPS output a pure sine-wave power source with frequency filtering, phase-synchronized voltage stabilization, noise filtering, low distortion levels and no interference from mains fluctuations, providing complete and thorough equipment protection.

● Zero switching time to meet demanding power supply requirements.

● The standard output isolation transformer responds effectively to short-term load impact.

● Independent air duct design for improved heat dissipation.

Scheduled switching function

● The NE series UPS system has scheduled start and shutdown functions, with a parameter-setting cycle ranging from a single day to daily, making the UPS power source more user-friendly.

Adjustable output voltage and frequency

● NE series UPS units allow output voltage and frequency to be configured. Up to 5 output voltage values can be set, and the output frequency can be set to 50 Hz or 60 Hz, meeting a variety of user needs.

Cold start function

● The UPS can start up directly when there is no AC power but the battery has been connected to the DC bus.

Alarm and protection function

● The NE series UPS has several alarm methods that can quickly, accurately and in detail display current alarms via audible and visual indicators, an LCD display, input and output nodes, and network transmission methods, simultaneously increasing system reliability and helping maintenance personnel accurately locate and resolve faults.

Battery management function

● The NE series has advanced battery management functions, including UPS system performance. Set two parameters: the number of batteries and the maximum charging current value.

Automatic restart on mains power recovery

● The automatic start function is specifically designed for systems in which the UPS equipment has a battery. Once the battery has reached the minimum permissible voltage and the AC input voltage has normalized, the UPS power source starts automatically according to the pre-set operating mode. This function, together with mains monitoring, ensures the UPS starts automatically in unforeseen situations.

Emergency stop

● The "emergency stop" button can shut down the rectifier and inverter, as well as block the output (including bypass and inverter). This button can be used in the event of an emergency or when normal shutdown is not possible.
