- Battery SolarX SXG 200-12r
Battery SolarX SXG 200-12r
Specify the price at the manager
12 місяців
в Україні
поставка
підтримка

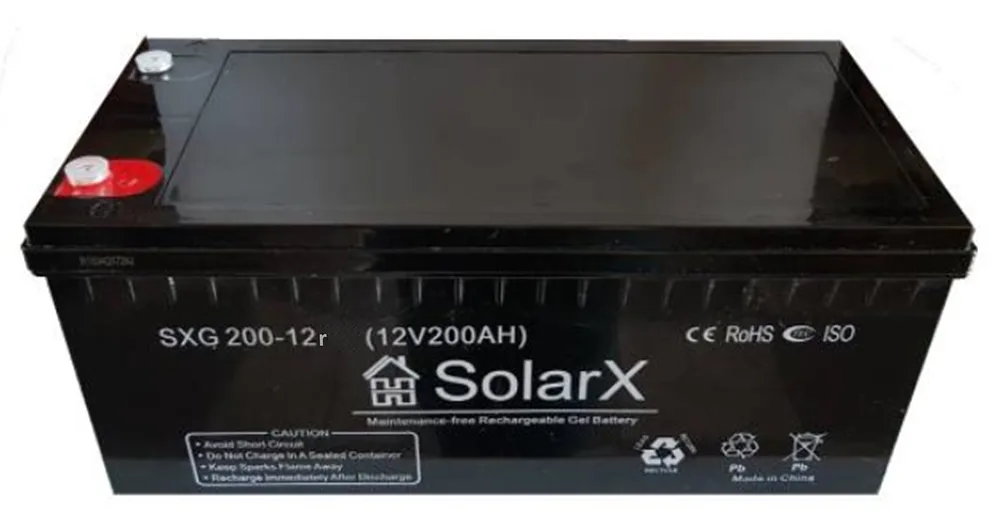

Gel battery SolarX SXG 200-12r (12V 200Ah)
The SolarX SXG 200-12r (12V200Ah) battery is a sealed maintenance-free battery for use in uninterruptible power supplies, protected against electrolyte overflow, leakage or evaporation.
Application area of SolarX batteries.
Designed for accumulating, storing and transmitting electrical energy in the following fields:
- communication equipment, telecommunications
- electronic equipment
- security alarm systems
- emergency lighting systems
- IT industry
- medicine
- wide use of uninterruptible power supply systems in alternative energy.
Main advantages:
- Long service life (for high-capacity SXA-SXG series (100-200 Ah)) of 12-15 years in float mode.
- Only virgin raw materials are used in production.
- Technical quality control at every stage, from production to shipment to the customer (completely eliminates the risk of defective products).
- No harmful impact on the environment or human life.
- The heat-resistant material of the sealed casing ensures maximum safety when using SolarX batteries.
- A wider operating temperature range and support for higher discharge current expand the range of applications.
- The high-density gel electrolyte improves battery efficiency, significantly extending the service life of SolarX batteries and making their use safer. If the casing is damaged, the electrolyte will not leak, so it will not harm the environment.
- Does not require maintenance or electrolyte top-up
- Vibration resistant
- Withstands deep discharge (up to 70%)
- Works in both vertical and horizontal positions
- Improved separator - modified for operation under elevated pressure
Delivery «New Mail»
On average, delivery takes 1-2 days. If necessary, our managers can tell you the exact date and cost of delivery. This delivery method is suitable for people who want to quickly receive their order.
Delivery «New Mail» courier delivery
On average, delivery takes 1-2 days.
Pickup from the office
You can pick up an order from our office in the city of Kiev: st. Liteiny 7. Schedule: Mon – Fri from 9:00 to 18:00.
| Battery type | GEL |
| Номинальное напряжение Udc | 12 В |
| Capacity | 200 Ач |
| Weight | 66 кг |
| Dimensions (LxWxH) | 522±2 x 238±2 x 222±2 мм |
| Total height | 222±2 мм |
| Maximum charge current | 60 А |
| Maximum discharge current | 2000 А (5 сек) |
| Напряжение подзаряда | 13,5 - 13,8 В |
| Напряжение заряда при циклическом режиме |
14,5 - 15.0 В |
| Self-discharge | ~ 2.5% |
| Внутренне сопротивление | 3.3 мОм |
| Terminal type | Т11 |
| Operating temperature | 20±10 °С |
| Operating temperature range | -20...+60 °С |
| Температура заряда | 0...+50 °С |
| Storage temperature | -20...+60 °С |
| Housing material | ABS с примесями специальных огнеупорных компонентов |
| Срок эксплуатации в буферном режиме (20 °С) | 15 лет |
