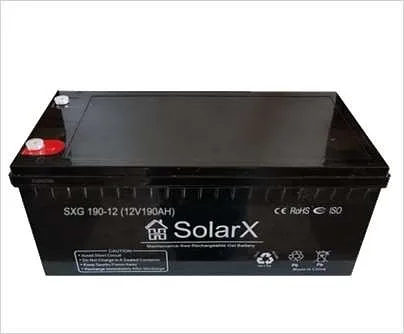

Battery SolarX SXG 190-12

GENERAL INFORMATION

SolarX stationary GEL lead-acid batteries, sealed with an excess-pressure valve, are reliable, durable, maintenance-free autonomous power sources throughout their service life, designed for continuous float-charge or cyclic operation.

Only qualified personnel with the necessary clearance to work with electrical installations up to 1000 V, familiar with the Operating Instructions and having completed safety training, are permitted to work with batteries.

TECHNICAL DATA

SolarX batteries are imported by the manufacturer already filled with electrolyte, fully charged and ready for use.

The main technical characteristics of the batteries are given in the Operating Instructions.

SolarX batteries are approved for use in emergency power systems, communication equipment, alarm systems, telecommunication systems, marine equipment, wheelchairs, electric vehicles, uninterruptible power supplies, medical equipment, fire and security systems.

The stated technical characteristics apply at a nominal temperature of +20...+25°C and must have at least 95% of guaranteed capacity on the first charge-discharge cycle and 100% by no later than the 5th cycle.

The technical characteristics are guaranteed by the manufacturer provided the storage, operation and maintenance requirements for the batteries are met.

Transportation requirements

SolarX stationary sealed maintenance-free lead-acid batteries with silica-gel-bound electrolyte are safe to transport by any means of transport.

Transportation is only permitted in an upright position. Protection against short circuits, drops, impacts and tipping is required during transportation.

They may be placed on pallets. Stacking pallets on top of each other is prohibited.

The outer packaging must show no signs of electrolyte leakage. Batteries with a damaged casing must be packaged and transported as dangerous goods.

DELIVERY SET

The delivery set is determined by the contract.

Basic delivery set:

SolarX batteries;

mounting bolts and nuts;

technical passport;

Operating Instructions;

By additional agreement, the following may be supplied:

racks, battery cabinets;

battery-carrying mechanisms;

control and measuring instruments;

torque wrenches;

rectifying and charging equipment.

SERVICE LIFE AND STORAGE

The maximum storage period for SolarX batteries without recharging is 24 months in a dry room at an air temperature not exceeding 20°C.

The design service life in continuous float-charge mode at 20°C is 10-12 years. The actual service life is halved for every 10-degree increase in operating temperature.
