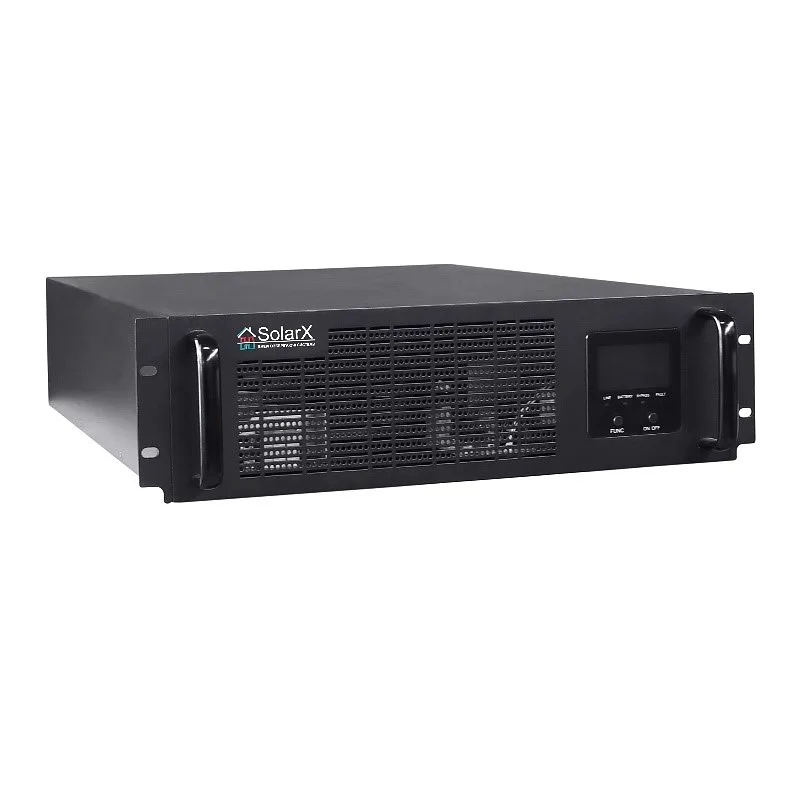

UPS SolarX SX-NE1106R
Specify the price at the manager
12 місяців
в Україні
поставка
підтримка
UPS SolarX SX-NE1106R with a output pure sine wave and high conversion efficiency has a low maximum heating temperature during operation and a fairly low noise level. This UPS is an example of an affordable and versatile device. Thanks to the built-in battery, all you need to do to operate the UPS is connect it to the mains and connect your devices to the uninterruptible power supply.
Main features
Guaranteed stable and safe operation
The UPS is equipped with protection against overload, overcharge and deep discharge of the battery, which guarantees safe use of both the UPS and the devices connected to it. The output ports are equipped with a noise filtering function, so the uninterruptible power supply can be used even in places with poor-quality electricity.
Simple connection
To put the UPS into operation, it is enough to simply connect it to the mains, the battery pack and the consumers of electricity. This is so simple that connecting the inverter takes no more than 5 minutes.
Safe and reliable automatic protection
In case of critical temperature rise during improper operation of the inverter, voltage exceeding the set maximum and minimum values, overcharge, or deep battery discharge, automatic protection is triggered, which opens the UPS electrical circuit.
Pure sine wave
A pure sine wave is very important for devices that require high-quality electricity, such as server and telecommunications equipment, devices used in the medical field, etc. Also, in the absence of a switching power supply in the devices, a UPS with a pure sine wave will significantly extend the life of your devices.
Delivery «New Mail»
On average, delivery takes 1-2 days. If necessary, our managers can tell you the exact date and cost of delivery. This delivery method is suitable for people who want to quickly receive their order.
Delivery «New Mail» courier delivery
On average, delivery takes 1-2 days.
Pickup from the office
You can pick up an order from our office in the city of Kiev: st. Liteiny 7. Schedule: Mon – Fri from 9:00 to 18:00.
| Model | SX-NE1106R |
| Design type | Rack Mount (монтаж в серверный шкаф, стойку 19’’) |
| UPS type | On-line (с двойным преобразованием, VFI-SS-111) |
| Power, apparent/active | 6000 ВА / 6000 Вт |
| Input | |
| Rated input voltage | 1 фаза: 220 В АС |
Допустимый диапазон напряжения (без перехода на батарею) |
110 В – 300 В (При 100% нагрузке 160 В – 290 В) |
| Grid frequency | 40 – 70 Гц (автоматическая настройка) |
Коэффициент мощности на входе |
≥ 0,99 при полной нагрузке |
Максимальный ток при номинальном входном напряжении |
34 А |
Искажение входного тока |
4% |
| Output | |
| Rated output voltage | 1 фаза: 208/220/230/240 В АС ± 1% (настраивается) |
| Output frequency | 50/60 Гц |
Стабильность частоты |
± 0,1% (батарейный режим) |
Стабильность напряжения |
<1% |
Выходной коэффициент мощности |
1 |
Искажения напряжения |
≤ 1% (линейная нагрузка), ≤ 5% (нелинейная нагрузка) |
| Sine wave shape | Чистая синусоида |
Время переключения на работу от батареи |
0 мс |
Время переключения с инвертора на байпас |
0 мс |
Устойчивость к перегрузкам (инверторный режим) |
105% - 110 % переход на байпас через 10 мин.; 111% - 125% переход на байпас через 1 мин.; 126% - 150% переход на байпас через 30 с., отключение через 1 мин. |
Инвертор |
3 – уровневый, возможность работы с индуктивной и с емкостной нагрузкой. Возможность работы с полуволновой нагрузкой |
Крест-фактор тока |
3:1 |
| Battery | |
| Battery type | Внешние |
Количество АКБ |
16 – 20 |
| Battery voltage | 192 – 240 В |
Возможность подключения дополнительных АКБ |
Yes |
Зарядное устройство |
Да (цифровой, регулированное 1 – 6 А) |
| Information display | |
Дисплей |
Да (LCD) |
Мнемосхема |
Yes |
Дисплей и индикаторы |
Напряжение, емкость батарей, режим работа от сети/АКБ, байпас, ошибка |
| UPS control | Yes |
| Communications | |
USB, RS232 |
В комплекте |
Плата сухих контактов |
Опционально |
| General characteristics | |
КПД |
Полностью заряженная батарея: 95% при 100% нагрузке 96% при 60% нагрузке 99% в режиме ECO |
Электронный байпас |
Yes |
Автоматический выключатель в контуре электронного байпаса |
Yes |
Параллельная работа |
До 4-х штук (при условиях наличия платы параллельной работы и интерфейсных кабелей) |
Программное обеспечение на CD |
В комплекте |
Крепление для монтажа в шкаф 19’’ |
В комплекте |
Аварийное отключение питания (EPO) |
Yes |
Защита от завышенного и заниженного напряжения |
Yes |
Защита от завышенного тока |
Yes |
| Overheat protection | Yes |
| Short-circuit protection | Yes |
| Audible alarm | Yes |
SNMP карта |
Yes |
| Dimensions (LxWxH) | 600х438х133 [2U] |
Размеры с монтажным креплениям |
3U |
| Weight | 15 кг |
| Environment | |
| Operating temperature | 0°С – 40°C |
| Relative humidity at 25°C | 0 – 95% (без конденсата) |
| Noise level | < 55 дБ на расстоянии 1 метр |
