- UPS SolarX SX-NBR1500T02

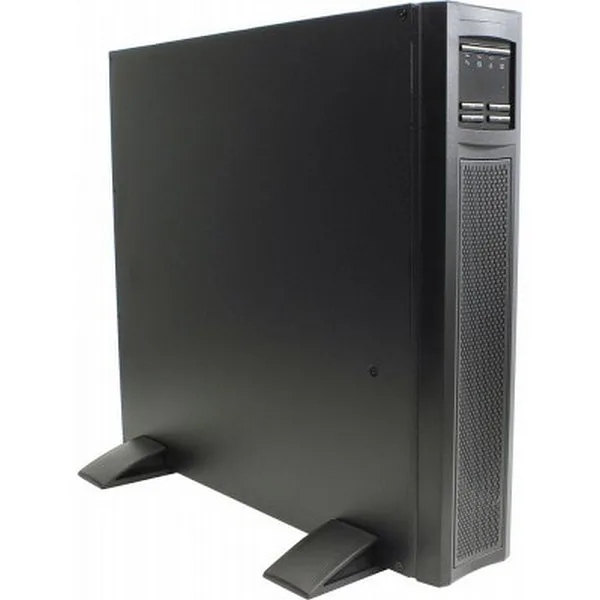

UPS SolarX SX-NBR1500T02
Specify the price at the manager
12 місяців
в Україні
поставка
підтримка
The SolarX SX-NBR1500 UPS with pure sine wave output and high conversion efficiency has a low maximum heating temperature during operation and a fairly low noise level. This UPS is an example of an affordable and versatile device. Thanks to the built-in battery, all you need to do to operate the UPS is connect it to the mains and connect your devices to the uninterruptible power supply.
Main features
Guaranteed stable and safe operation
The UPS is equipped with protection against overload, overcharge and deep discharge of the battery, which guarantees safe use of both the UPS and the devices connected to it. The output ports are equipped with a noise filtering function, so the uninterruptible power supply can be used even in places with poor-quality electricity.
Simple connection
To put the UPS into operation, it is enough to simply connect it to the mains and the consumers of electricity. This is so simple that connecting the inverter takes no more than 5 minutes.
Safe and reliable automatic protection
In case of critical temperature rise during improper operation of the inverter, voltage exceeding the set maximum and minimum values, overcharge, or deep battery discharge, automatic protection is triggered, which opens the UPS electrical circuit.
Pure sine wave
A pure sine wave is very important for devices that require high-quality electricity, such as server and telecommunications equipment, devices used in the medical field, etc. Also, in the absence of a switching power supply in the devices, a UPS with a pure sine wave will significantly extend the life of your devices.
Delivery «New Mail»
On average, delivery takes 1-2 days. If necessary, our managers can tell you the exact date and cost of delivery. This delivery method is suitable for people who want to quickly receive their order.
Delivery «New Mail» courier delivery
On average, delivery takes 1-2 days.
Pickup from the office
You can pick up an order from our office in the city of Kiev: st. Liteiny 7. Schedule: Mon – Fri from 9:00 to 18:00.
| Model | SX-NBR1500T02 |
| Design type | Rack/Tower |
| UPS type | On-line (з двойным преобразованием) |
| Power, apparent/active | 1500 ВА / 1350 Вт |
| Input | |
| Rated input voltage | 220 – 250 В АС (максимально 300 В) 1 фаза |
Допустимый диапазон напряжения (без перехода на батарею) |
140 В ~ < Vвх < 276 В при 50% нагрузке 184 В ~ < Vвх < 276 В при 100% нагрузке |
Искажения тока |
≤ 7% |
Номинальная входная частота |
50/60 Гц ± 5% (управляемая) |
Коэффициент мощности на входе |
≥ 0,98 при полной линейной нагрузке |
Подключение на входе |
IEC 320-C14 |
| Output | |
| Rated output voltage | 220/230/240 В АС (управляемая) 1 фаза |
| Rated output frequency | 50/60 Гц ± 0,1% (управляемая) |
КПД в режиме Eco Mode та Smart Active |
До 98% |
Смены в динамике |
≤ 5% за 20 мс |
| Sine wave shape | Чистая синусоида |
Крест-фактор тока |
3:1 |
| Output connector type | IEC 320-C13 |
| Number of output connectors | 4 с резервированием от АКБ/фильтрацией шумов |
| Bypass | Внутренний автоматический байпас (200 – 253 В) |
| Battery | |
Количество батарей |
4 |
| Battery type | Свинцево – щелочная герметичная, без обслуживания (VRLA) |
| Maximum charge current | 1,5 А |
Время автономной работы при линейной нагрузке 50% |
> 10 минут |
Время зарядки |
До 4 часов до 90% после полного разряда |
| Information display | |
Дисплей и индикаторы |
Светодиоды и кнопки (контроль в реальном времени состояния и основных параметров ИБП) |
| UPS control | Yes |
| Communications | |
| USB | В комплекте |
RS232 |
В комплекте |
| General characteristics | |
Программное обеспечение на CD |
В комплекте |
Защита от завышенного и заниженного напряжения |
Yes |
Защита от завышенного тока |
Yes |
| Overheat protection | Yes |
Защита от низкого заряда батарей |
Yes |
Окружение | |
| Operating temperature | 0°С – 40°C |
| Relative humidity at 25°C | 20 – 80% (без конденсата) |
Стандарты безопасности | |
EN 62040-1 |
Yes |
EN 620040-2 категория С2 |
Yes |
