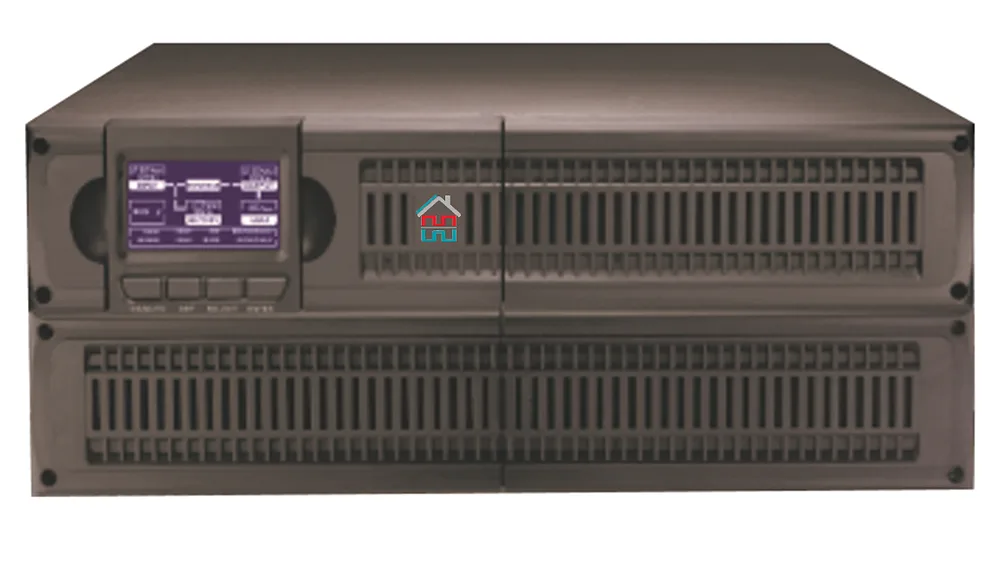

UPS SolarX SX-NBR1000
Specify the price at the manager
12 місяців
в Україні
поставка
підтримка
UPS SolarX SX-NBR1000 with a output pure sine wave and high conversion efficiency has a low maximum heating temperature during operation and a fairly low noise level. This UPS is an example of an affordable and versatile device. Thanks to the built-in battery, all you need to do to operate the UPS is connect it to the mains and connect your devices to the uninterruptible power supply.
Main features
Guaranteed stable and safe operation
The UPS is equipped with protection against overload, overcharge and deep discharge of the battery, which guarantees safe use of both the UPS and the devices connected to it. The output ports are equipped with a noise filtering function, so the uninterruptible power supply can be used even in places with poor-quality electricity.
Simple connection
To put the UPS into operation, it is enough to simply connect it to the mains and the consumers of electricity. This is so simple that connecting the inverter takes no more than 5 minutes.
Safe and reliable automatic protection
In case of critical temperature rise during improper operation of the inverter, voltage exceeding the set maximum and minimum values, overcharge, or deep battery discharge, automatic protection is triggered, which opens the UPS electrical circuit.
Pure sine wave
A pure sine wave is very important for devices that require high-quality electricity, such as server and telecommunications equipment, devices used in the medical field, etc. Also, in the absence of a switching power supply in the devices, a UPS with a pure sine wave will significantly extend the life of your devices.
Delivery «New Mail»
On average, delivery takes 1-2 days. If necessary, our managers can tell you the exact date and cost of delivery. This delivery method is suitable for people who want to quickly receive their order.
Delivery «New Mail» courier delivery
On average, delivery takes 1-2 days.
Pickup from the office
You can pick up an order from our office in the city of Kiev: st. Liteiny 7. Schedule: Mon – Fri from 9:00 to 18:00.
| Model | SX-NBR1000 |
| UPS type | On-line (с двойным преобразованием) |
| Design type | Rack Mount |
| Power, apparent/active | 1000 ВА / 800 Вт |
| Input | |
| Input voltage | 200/208/220/230/240 В АС |
| Permissible voltage range | 100 – 300 В AC |
| Grid frequency | 50/60 Гц (автоматически) |
| Output | |
| Output voltage | 200/208/220/230/240 В АС |
| Output frequency | 50/60 Гц ±2% |
| Sine wave shape | Чистая синусоида |
| Switch-over time to battery | 0 мс |
| Crest factor | 3:1 |
| Output connector type | IEC320 C13 |
| Number of output connectors | 4 с резервированием от АКБ/фильтрацией шумов |
| Bypass | Да (автоматическое/ручное управление) |
| Battery | |
| Battery voltage | 24 В DC |
| Battery type | Необслуживаемая герметичная свинцово-кислотная батарея с защитой от утечек |
| Battery specifications | 2х9AH12V |
| Battery service life | 3 – 5 лет |
| Runtime at full load | ≤ 10 минут |
| Recharge time | До 5 часов до 90% после полного разряда |
| Information display | |
ЖК-дисплей |
Yes |
| UPS control | Yes |
| Light indication | Yes |
| Audible alarm | Да (возможность выключения) |
| Communications | |
| USB | В комплекте |
| Serial RJ45 | В комплекте |
SNMP плата |
В комплекте (возможность подключения датчика температуры и влажности) |
Датчик температуры и влажности |
В комплекте |
| General characteristics | |
| Dimensions (LxWxH) | 430х440х87(2U) мм |
Комплект монтажа в стойку 19’’ |
В комплекте |
| Automatic fuse | Yes |
Интеллектуальный расчет замены АКБ |
Yes |
Термокомпенсация заряда АКБ |
Yes |
| Software | Встроенное (централизованное, возможность обновления) |
| Environment | |
| Operating temperature | 0°С – 45°C |
| Noise level | < 50 дБ на расстоянии 1 метр |
| Relative humidity at 25°C | 20 – 95% (без конденсата) |
| Warranty | |
| UPS | 24 месяца |
| Battery | 12 месяцев |
