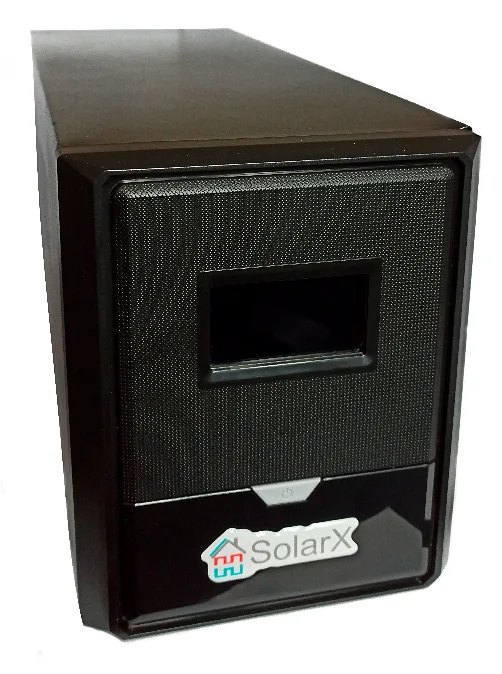

UPS SolarX SX-LBT800 S4
Specify the price at the manager
12 місяців
в Україні
поставка
підтримка
UPS SolarX SX-LBT800 S4 with a output pure sine wave and high conversion efficiency has a low maximum heating temperature during operation and a fairly low noise level. This UPS is an example of an affordable and versatile device. Thanks to the built-in battery, all you need to do to operate the UPS is connect it to the mains and connect your devices to the uninterruptible power supply.
Main features
Guaranteed stable and safe operation
The UPS is equipped with protection against overload, overcharge and deep battery discharge, guaranteeing safe use of both the UPS and the devices connected to it. The output ports feature noise filtering, so the uninterruptible power supply allows devices to be used even in areas with poor-quality electricity.
Simple connection
To commission the UPS, you simply need to connect it to the mains and to the power consumers. It takes less than a minute to connect the inverter
Safe and reliable automatic protection
In the event of a critical temperature rise during improper inverter operation, voltage exceeding the set maximum or minimum values, overcharging, or deep battery discharge, automatic protection will trigger and break the UPS electrical circuit.
Unique design
Thanks to its unique design and well-thought-out styling, the UPS does not take up much space and looks quite modern. This allows it to be placed in a visible spot and installed where other inverters simply would not fit. Also, thanks to its large number of output ports, the UPS guarantees uninterrupted power to important devices.
Delivery «New Mail»
On average, delivery takes 1-2 days. If necessary, our managers can tell you the exact date and cost of delivery. This delivery method is suitable for people who want to quickly receive their order.
Delivery «New Mail» courier delivery
On average, delivery takes 1-2 days.
Pickup from the office
You can pick up an order from our office in the city of Kiev: st. Liteiny 7. Schedule: Mon – Fri from 9:00 to 18:00.
| Model | SX- LBT800 S4 |
| Placement type | Напольное (Tower) |
| Architecture type | Линейно-интерактивный |
| Input | |
| Input voltage | 230 В AC |
| Диапазон напряжения без перехода на АКБ |
170 – 300 В |
| Корректирование повышенного напряжения (242 В – 300 В) |
Снижение напряжения на 15% |
| Корректирование пониженного напряжения (170 В – 209 В) |
Повышение напряжения на 20% |
| Grid frequency | 50/60 Гц |
| Импульсная защита |
320 Дж (мгновенная защита от скачков напряжения) |
| Защита от электромагнитных и радиочастотных помех |
Yes |
| Входной ток при максимальной нагрузке |
3,7 А |
| Входной разъем |
1xSchuko (CEE 7/7) |
| Количество фаз, вход/выход |
1/1 |
| Output | |
| Apparent power | 850 ВА |
| Output power | 480 Вт |
| Rated output voltage | 220 В / 230 В / 240 В |
| Выходное напряжение при работе от АКБ |
230 В ± 5% |
| Номинальный КПД при работе от сети |
>98% |
| КПД при работе от сети при 100% нагрузке |
>97 % |
| Output frequency | 50/60 Гц (автоматический выбор) |
| Transfer time to battery | 6 мс |
| Напряжение перехода на АКБ |
Больше 300В, или меньше 170В (значение задается) |
| Sine wave shape | Чистая синусоида |
| Размещение розеток |
Сзади корпуса |
| Number and type of outputs | 4 шт. х Schuko (CEE 7/7) с батарейной поддержкой и фильтрацией шумов |
| Особенности розеток |
Battery Backup, Surge/Noise Protection |
| Battery | |
| Battery type | Встроенная, герметичная необслуживаемая свинцово-кислотная батарея (AGM). |
| Voltage and capacity | 12 В 7 Ач |
| Срок эксплуатации АКБ |
10 лет |
| Время работы при 50% нагрузке (240 Вт) |
≥ 11 минут |
| Время работы при 100% нагрузке (480 Вт) |
≥ 5 минут |
| Charge time | До 6 часов до 90% заряда |
| Alarm | |
| Low battery | При работе от АКБ и низком заряде четыре коротких сигнала каждую секунду и заряд АКБ |
| Overload | Гудок. Беспрерывное звучание сигнала и уровень нагрузки |
| Battery replacement error/indication | Беспрерывное звучание сигнала и символ на экране |
| UPS control | |
| Мониторинг ИБП |
Да (контроль ИБП и мониторинг состояния электропитания объекта) |
| Software | ПО для контроля ИБП через коммуникационные порты |
| Интерфейс связи |
USB (поддержка HID) |
| USB кабель |
Yes |
| Кабель питания |
Да (2 кабеля, длинна 1,5 м, разъемы C13, C14) |
| WatchDog |
Да (перезагрузка операционных систем, аппаратное скидывание при дистанционном управлении) |
| General characteristics and functions | |
| Information display | Сенсорный ЖК-экран на лицевой панели |
| Информация на экране |
Входное напряжение Выходное напряжение Выходная нагрузка (%) Уровень заряда АКБ (%) |
| Дополнительные опции экрана |
Подсветка экрану (20 секунд после любого действия пользователя при питании от сети, все время при питании от АКБ) |
| Отображение режима работы |
Да (ЖК-экран) |
| Кнопки управления ИБП |
Да (лицевая панель) |
| Индикация и светодиоды |
Да (лицевая панель) |
| Voltage stabilizer (AVR) | Yes |
| Cold start function | Yes |
| Функция авто-старт |
Yes |
| Автоматический выключатель |
Да (5 А) |
| Short-circuit protection | Yes |
| Overload and voltage surge protection | Yes |
| Low/high voltage protection | Yes |
| Overheat protection | Yes |
| Deep discharge protection | Yes |
| Dimensions (LxWxH) | 347 х122 х 160 мм |
| Weight | 5.7 кг |
| Исполнение корпуса |
Металлический, черного цвета |
| Кабель питания |
Да (1,5 м) |
| Environment | |
| Operating temperature | -10 ~ 60 °С |
| Storage temperature | -20 ~ 60 °С |
| Relative humidity at 25°C | 0 ~ 93% (без конденсации) |
| Тепловыделение (при полной нагрузке) |
60 БТЕ/час |
| Noise level | < 40 дБ на расстоянии 1 метр |
|
Гарантия и соответствие стандартам | |
| Соответствие стандартам |
CE, EAC, IEC 62040-1: 2008 + A1 до: 2013; EN62040-2: 2006; IEC62040-2 действует до: 2016, кат. C2 |
| UPS warranty | 24 месяца |
| Обслуживание в сервисном центре во время гарантийного периода |
Yes |
