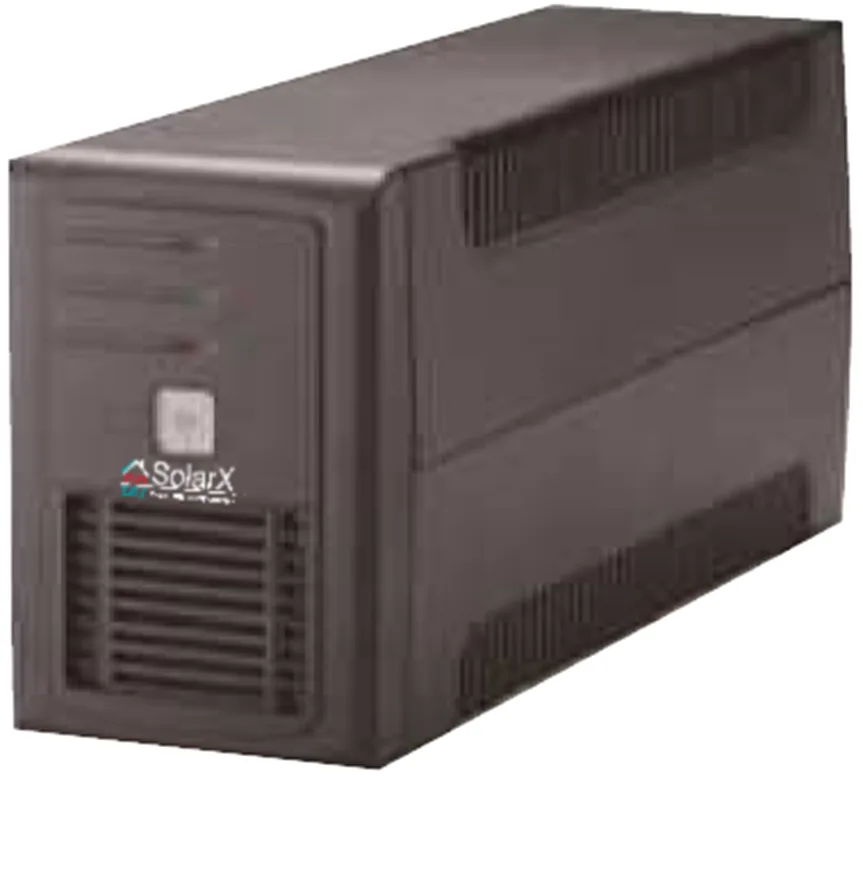

UPS SolarX SX-LBT600
Specify the price at the manager
12 місяців
в Україні
поставка
підтримка
UPS SolarX SX-LBT600 with a output pure sine wave and high conversion efficiency has a low maximum heating temperature during operation and a fairly low noise level. This UPS is an example of an affordable and versatile device. Thanks to the built-in battery, all you need to do to operate the UPS is connect it to the mains and connect your devices to the uninterruptible power supply.
Main features
Guaranteed stable and safe operation
The UPS is equipped with protection against overload, overcharge and deep discharge of the battery, which guarantees safe use of both the UPS and the devices connected to it. The output ports are equipped with a noise filtering function, so the uninterruptible power supply can be used to power electrical appliances even in areas with poor-quality electricity.
Simple connection
To put the UPS into operation, it is enough to simply connect it to the mains and the consumers of electricity. This is so simple that connecting the inverter takes less than a minute.
Safe and reliable automatic protection
In case of critical temperature rise during improper operation of the inverter, voltage exceeding the set maximum and minimum values, overcharge, or deep battery discharge, automatic protection is triggered, which opens the UPS electrical circuit.
Unique design
Thanks to its unique construction and well-thought-out design, the UPS does not take up much space and looks quite modern. This allows it to be placed in a visible spot where other inverters simply would not fit. And thanks to the large number of output ports, the UPS guarantees uninterrupted power to important devices.
Delivery «New Mail»
On average, delivery takes 1-2 days. If necessary, our managers can tell you the exact date and cost of delivery. This delivery method is suitable for people who want to quickly receive their order.
Delivery «New Mail» courier delivery
On average, delivery takes 1-2 days.
Pickup from the office
You can pick up an order from our office in the city of Kiev: st. Liteiny 7. Schedule: Mon – Fri from 9:00 to 18:00.
| Model | SX-LBT600 |
| UPS type | Линейно-интерактивный |
| Design type | Tower |
| Power, apparent/active | 600 ВА / 360 Вт |
| Input | |
| Input voltage | 220/230/240 В АС |
| Permissible voltage range | -30% +25% |
| Grid frequency | 50/60 Гц |
| Output | |
| Output voltage | 220/230/240 В АС ±10% |
| Output frequency | 47-53 Гц, 57-63 Гц |
| Sine wave shape | Апроксимированная синусоида |
| Switch-over time to battery | < 6 мс |
| Output connector type | IEC320 С13 |
| Number of output connectors | 4 с резервированием от АКБ/фильтрацией шумов |
| Cold start function | Yes |
Включение ИБП при восстановлении питания |
Yes |
| Battery | |
| Battery type | Встроенная, герметичная свинцово-кислотная батарея, защита от утечек. |
| Battery | 1 шт. х 7 Ач 12В |
| Runtime at full load | ≥ 6 минут |
| Recharge time | до 5 часов до 90% после полного разряда |
Защитные функции |
Защита от избыточного заряда, от глубокого разряда, от перегрузки |
Защита от короткого замыкания (автоматический предохранитель) |
Yes |
| Audible alarm | |
Режим АКБ |
Два коротких сигнала каждые 8 секунд |
| Low battery | Четыре коротких сигнала каждую секунду |
| Overload | Гудок. Беспрерывное звучание сигнала |
Ошибка |
Беспрерывное звучание сигнала |
| General characteristics | |
| Dimensions (LxWxH) | 315х100х141 мм |
| Environment | |
| Operating temperature | 0°С – 40°C |
| Noise level | < 40 дБ на расстоянии 1 метр |
| Relative humidity at 25°C | 0 – 95% (без конденсата) |
| Warranty | |
| UPS | 12 месяца |
| Battery | 12 месяцев |
