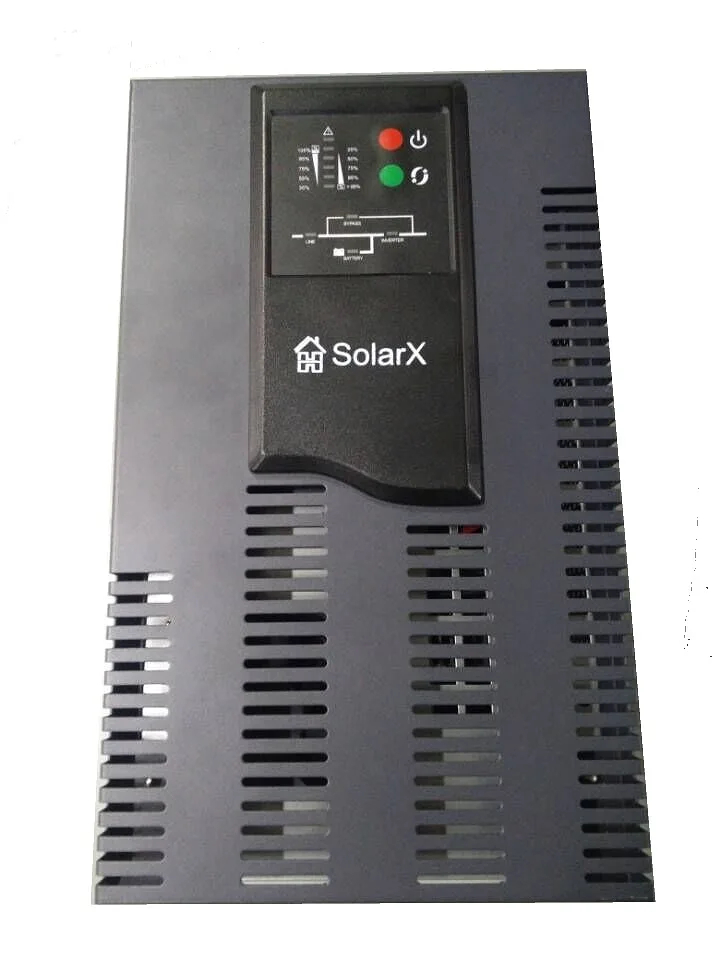

UPS SolarX SX-NE3000T
Specify the price at the manager
12 місяців
в Україні
поставка
підтримка
Extended protection
The online double-conversion design allows the UPS output to be a pure sine wave power source with frequency tracking, voltage stabilization, phase synchronization, and filtering of noise and interference from mains fluctuations. All this ensures complete protection of the connected load.
Control system
The control system has become more stable and reliable thanks to a digital processor and its performance. Even in poor electrical conditions, it can ensure stable, continuous operation. Thanks to its self-diagnostic function, it can detect hidden UPS faults in time and prevent them from occurring.
Improved characteristics
The wide input voltage range of 115V~300V AC avoids frequent switching to battery power during significant mains voltage fluctuations. This is suitable for areas with poor-quality power supply. At half load, the input voltage can be as low as 115V without switching to battery power. The input frequency range is 46～64 Hz, ensuring compatibility and stable operation with all types of fuel generators.
Intelligent management
The UPS is equipped with an RS232 interface, which allows convenient monitoring of its operation using the included local monitoring software. The UPS can additionally be equipped with an SNMP card.
Delivery «New Mail»
On average, delivery takes 1-2 days. If necessary, our managers can tell you the exact date and cost of delivery. This delivery method is suitable for people who want to quickly receive their order.
Delivery «New Mail» courier delivery
On average, delivery takes 1-2 days.
Pickup from the office
You can pick up an order from our office in the city of Kiev: st. Liteiny 7. Schedule: Mon – Fri from 9:00 to 18:00.
| Placement type | Tower (классический, напольный) |
| Architecture type | True On-line (двойное преобразование) |
| Input | |
| Rated input voltage | 220/230/240 В АС (50% - 125%) |
| Input voltage range | 115 - 300 В АС |
| Частота электросети |
50/60 Гц (автоопределение) |
| Input frequency range | 40 - 70 Гц |
| Number of phases, input/output | 1 фаза / 1 фаза |
| Фактор мощности |
≥ 0,98 |
| Output | |
| Мощность полная |
3000 ВА |
| Мощность полезная |
2700 Вт |
| Power factor | 0,9 |
| Output voltage | 220/230/240 В АС |
| Отклонение напряжения |
± 1% |
| Output frequency | 50/60 Гц |
| Выходная частота (режим АКБ) |
50/60 Гц ± 0,2% |
| КПД |
Работа от сети: 93% ECO режим: 99% Работа от Battery: 90% |
| Крест - фактор |
3: 1 |
| Гармонические искажения |
Линейная нагрузка:≤ 1,5% THD Нелинейное нагрузки:≤ 5% THD |
| Устойчивость к перегрузкам при работе от сети (до перехода на байпас) |
105% - 130%: 1 минута 150%: 30 секунд |
| Устойчивость к перегрузкам при работе от АКБ (до выключения) |
105% - 130% 30 секунд 150%: 5 секунд |
| Switch-over time to battery | 0 мс |
| Время переключения на байпас |
4 мс |
| Форма выходного сигнала |
Чистая синусоида |
| Battery | |
| Battery type | Внешняя свинцово - кислотная, герметичная, необслуживаемая батарея (технология AGM) |
| Voltage | 96 В |
| Maximum charge current | 4 - 8 А |
|
Индикация | |
| Information display | LED индикация / LCD дисплей |
|
Коммуникации (мониторинг и управление) | |
| RS - 232 |
Yes |
| USB | Да (опционально) |
| SNMP |
Да (опционально) |
| Плата сухих контактов |
Да (опционально) |
| General characteristics | |
| ECO - режим |
Yes |
| Short-circuit protection | Yes |
| Защита линии передачи данных (факс, модем, сеть) |
Yes |
| Стабилизация напряжения (AVR) |
Yes |
| Overload and voltage surge protection | Yes |
| High/low voltage protection | Yes |
| Overheat protection | Yes |
| Фильтрация электромагнитных помех |
Yes |
| Умная система охлаждения |
Yes |
| Cold start function | Yes |
| Размеры (ШхДхВ) |
190х426х318 мм |
| Weight | 11,5 кг |
| Operating temperature | 0 - 45 ° С |
| Влажность |
0 - 95% (без конденсации) |
| Noise level | <50 дБ на расстоянии 1 м |
| Warranty | |
| UPS | 12 месяцев |
