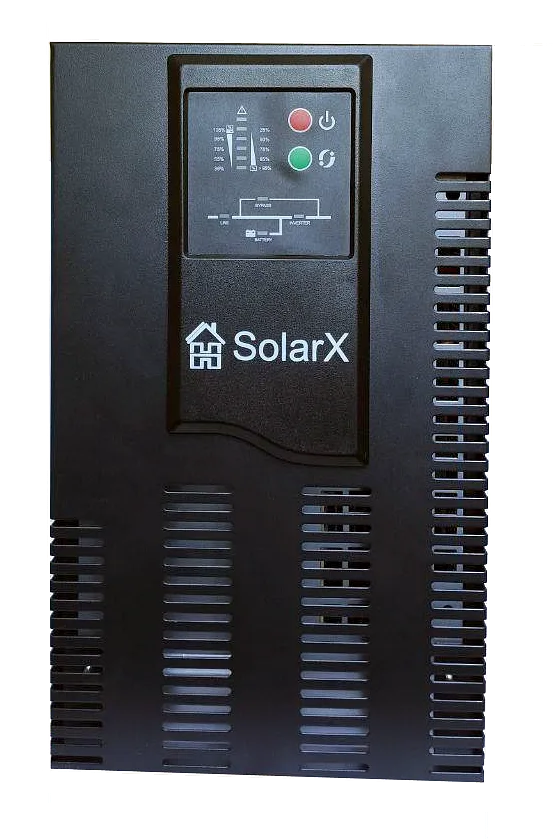

UPS SolarX SX-NB3000
Specify the price at the manager
12 місяців
в Україні
поставка
підтримка
Extended protection
The online double-conversion design allows the UPS output to be a pure sine wave power source with frequency tracking, voltage stabilization, phase synchronization, and filtering of noise and interference from mains fluctuations. All this ensures complete protection of the connected load.
Control system
The control system has become more stable and reliable thanks to a digital processor and its performance. Even in poor electrical conditions, it can ensure stable, continuous operation. Thanks to its self-diagnostic function, it can detect hidden UPS faults in time and prevent them from occurring.
Improved characteristics
The wide input voltage range of 115V~300V AC avoids frequent switching to battery power during significant mains voltage fluctuations. This is suitable for areas with poor-quality power supply. At half load, the input voltage can be as low as 115V without switching to battery power. The input frequency range is 46~64 Hz, ensuring compatibility and stable operation with all types of fuel generators.
Intelligent management
The UPS is equipped with an RS232 interface, which allows convenient monitoring of its operation using the included local monitoring software. The UPS can additionally be equipped with an SNMP card.
Delivery «New Mail»
On average, delivery takes 1-2 days. If necessary, our managers can tell you the exact date and cost of delivery. This delivery method is suitable for people who want to quickly receive their order.
Delivery «New Mail» courier delivery
On average, delivery takes 1-2 days.
Pickup from the office
You can pick up an order from our office in the city of Kiev: st. Liteiny 7. Schedule: Mon – Fri from 9:00 to 18:00.
| Model | NB3000 | |
| Type | Непрерывной действия (on-line VFI IEC 62040-3) |
|
| Исполнение |
Напольный (Tower) |
|
| Power | ||
| Мощность, кВА |
3000 |
|
| Мощность, кВт |
2700 |
|
| Input | ||
| Фазы |
1 фаза + заземление |
|
| Permissible voltage range | 110 ~ 300 В АС |
|
| Допустимый диапазон частоты |
45 -55 Гц |
|
| Фактор мощности |
≥ 0.99 при 100% нагрузке |
|
| Output | ||
| Фазы |
1 фаза + заземление |
|
| Output voltage | 200/208/220/230/240 VAC |
|
| Форма |
чистая синусоида |
|
| Точность напряжения |
± 1% |
|
| Выходная частота (Сетевой режим) |
48-52Гц |
|
| Выходная частота (Батт. Режим) |
50 Гц ± 0.2 Гц |
|
| Способность к перегрузке |
от сети |
101% ~ 125%: 1 мин .; 126% ~ 150%: 30 с .; > 150%: 1 с. |
| от батареи |
101% ~ 110%: 30 с .; 111% ~ 130%: 10 с .; > 130%: 1 с. |
|
| Crest factor | 3: 1 |
|
| Гармонические искажения выходного напряжения |
≤ 2% при 100% линейной нагрузке |
|
| ≤ 3% при 100% нелинейной нагрузке | ||
| Switch-over time | Сеть-Батарея |
0 мс |
| Сеть-Байпас |
<4 мс |
|
| Sine wave shape | чистая синусоида |
|
|
Эффективность | ||
| Сетевой режим |
≥ 88% |
|
| Батарейный режим |
≥ 83% |
|
|
Аккумуляторные батареи | ||
| Battery type | Встроенная VRLA AGM (свинцово-кислотная, герметичная, необслуживаемая) батарея 12 В / 9 Ач Срок службы до 10 лет |
|
| Напряжение заряда |
82.1 VDC |
|
| Количество АКБ |
6 шт. |
|
| Время зарядки после полного разряда |
4:00 до 90% емкости |
|
| Зарядный ток |
1.0 A ± 10% (Рекомендуемое) |
|
| Диагностика |
При каждом включении или принудительно кнопкой на лицевой панели |
|
|
Физические параметры | ||
| Размеры ДхШхВ |
400х193х327 мм |
|
| Weight | 23.2 кг |
|
| Выходной разъем |
3 шт. x Schuko (CEE 7/7) |
|
| General characteristics | ||
| Время автономной работы |
50% нагрузки |
≥ 14 минут |
| 100% нагрузки |
≥ 7 минут |
|
| Холодный старт |
Yes | |
| Индикация |
Светодиодная / ЖК-экран (опция) |
|
| Smart RS-232 / USB |
опция |
|
| Operating temperature | 0 ~ 40 ° C (срок службы АКБ уменьшается при t> 25 ° C) |
|
| Рабочая влажность |
20 ~ 95% (без конденсата) |
|
| Noise level | ≤ 50 дБ на расстоянии 1 м. |
|
| Protection | IP20 |
|
| Warranty | 12 месяцев |
|
|
Менеджмент | ||
| Сухие контакты |
сигналы исчезновения входного напряжения и предупреждения разряда батарей, команда выключения |
|
| Smart RS-232 или USB (определение разряда батарей, управление расписанием включения / выключения ИБП, мониторинг входного и выходного напряжения) |
Windows® 2000/2003 / XP / Vista / 2008/7, Linux, Unix, and MAC |
|
| SNMP (опционально) |
управления питанием от менеджера SNMP и веб-браузера |
|
|
Стандарты | ||
| Безопасность |
IEC / EN 62040-1 |
|
| EMI (электромагнитные помехи) | ||
| Кондуктивные помехи (излучение согласно IEC / EN 62040-2) |
категория C2 |
|
| Излучающие помехи (защищенность согласно IEC / EN 62040-2) |
категория C2 |
|
