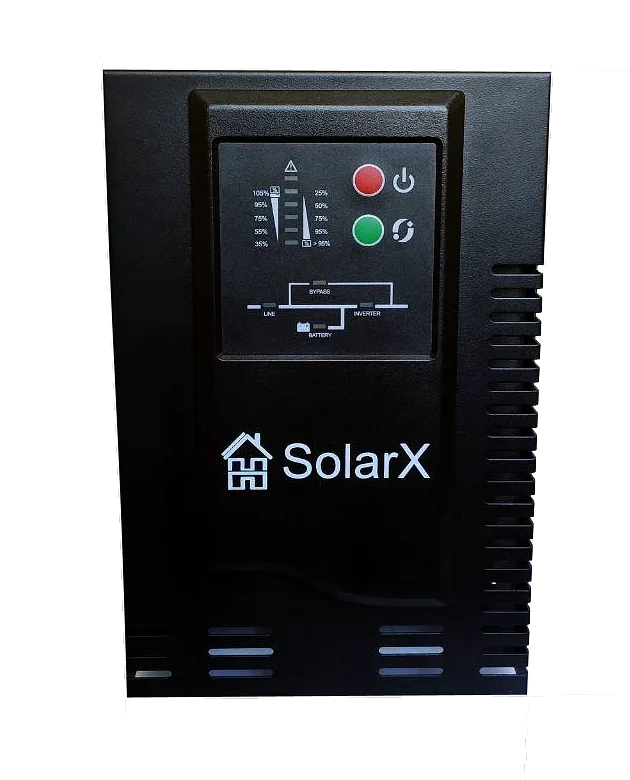

UPS SolarX SX-NB1000
Specify the price at the manager
12 місяців
в Україні
поставка
підтримка
Extended protection
The online double-conversion design allows the UPS output to be a pure sine wave power source with frequency tracking, voltage stabilization, phase synchronization, and filtering of noise and interference from mains fluctuations. All this ensures complete protection of the connected load.
Control system
The control system has become more stable and reliable thanks to a digital processor and its performance. Even in poor electrical conditions, it can ensure stable, continuous operation. Thanks to its self-diagnostic function, it can detect hidden UPS faults in time and prevent them from occurring.
Improved characteristics
The wide input voltage range of 115V~300V AC avoids frequent switching to battery power during significant mains voltage fluctuations. This is suitable for areas with poor-quality power supply. At half load, the input voltage can be as low as 115V without switching to battery power. The input frequency range is 46~64 Hz, ensuring compatibility and stable operation with all types of fuel generators.
Intelligent management
The UPS is equipped with an RS232 interface, which allows convenient monitoring of its operation using the included local monitoring software. The UPS can additionally be equipped with an SNMP card.
Delivery «New Mail»
On average, delivery takes 1-2 days. If necessary, our managers can tell you the exact date and cost of delivery. This delivery method is suitable for people who want to quickly receive their order.
Delivery «New Mail» courier delivery
On average, delivery takes 1-2 days.
Pickup from the office
You can pick up an order from our office in the city of Kiev: st. Liteiny 7. Schedule: Mon – Fri from 9:00 to 18:00.
| Design type | Классическое (Tower) |
| Architecture type | On-line (двойное преобразование) |
| Input | |
| Rated input voltage | 220 В |
Диапазон входного напряжения при работе от сети (AVR) |
110 - 300 В |
| Input frequency | 50/60 Гц |
| Output | |
| Apparent power | 1000 ВА |
| Useful power | 800 Вт |
| Output voltage waveform | Чистая (правильная) синусоида |
| Rated output voltage | 200/208/220/230/240 В ± 1% |
| Output frequency | 50/60 Гц |
Гармоничные возмущения (THD) |
≤ 2% при линейной нагрузке |
| Switch-over time to battery | 0 мс |
Время переключения на байпас |
4 мс |
| Type and number of outlets | 2 х евророзетки (Schuko CEE 7/7) с батарейной поддержкой и фильтрацией шумов |
| Battery | |
| Type | Встроенная герметичная, необслуживаемая, свинцово - кислотная батарея (VRLA AGM) |
| Voltage | 24 В |
Количество и емкость АКБ |
2 х 9 Ач 12 В |
| Runtime at full load | ≥ 9 мин. |
| Runtime at half load | ≥ 22 мин. |
| Battery charge time | До 5 часов до 90% заряда |
| General characteristics | |
Отображение состояния ИБП |
Контрольная LED панель |
Система звукового оповещения |
Yes |
| Communication ports | ● RS232 (опционально) |
| Short-circuit protection | Yes |
Стабилизация напряжения (AVR) |
Yes |
| Overload and voltage surge protection | Yes |
| High/low voltage protection | Yes |
| Overheat protection | Yes |
| Cold start function | Yes |
Самодиагностика ИБП |
Yes |
| Deep discharge protection | Yes |
| Dimensions | 146х227х360 мм |
| Weight | 5,2 кг |
| Housing material | Металл |
| Operating temperature range | 0 - 40 ° С |
| Relative humidity | 0 - 95% |
| Noise level | ≤ 50 дБ на расстоянии 1 метр |
| Warranty | |
| UPS | 24 месяца |
