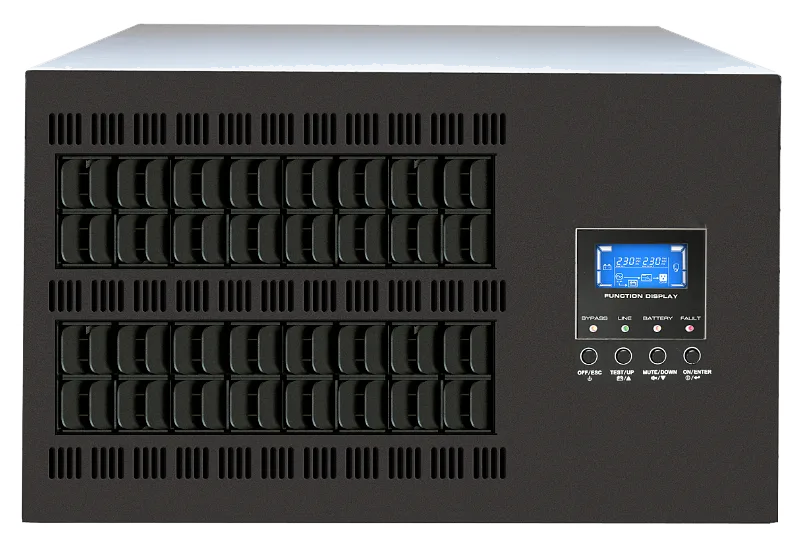

UPS SolarX SX-NE20KR01 + battery cabinet
330000 грн
12 місяців
в Україні
поставка
підтримка
UPS SolarX SX-NE20KR01 with a output pure sine wave and high conversion efficiency has a multi-stage fan for automatic internal temperature regulation, low maximum heating temperature during operation and a fairly low noise level. This UPS has a modern design and allows servicing without disconnecting the UPS load
- Guaranteed stable and safe operation
The UPS is equipped with protection against overload, overcharge and deep battery discharge, as well as a voltage regulator, guaranteeing safe use of both the UPS and the devices connected to it. The output ports feature noise filtering, so the uninterruptible power supply allows devices to be used even in areas with poor-quality electricity.
- Simple connection
To commission the UPS, you simply need to connect it to the mains and to the power consumers. It is so simple that connecting the UPS takes less than a minute.
- Safe and reliable automatic protection
In the event of a critical temperature rise due to UPS malfunction, voltage exceeding the set maximum or minimum values, overcharging, or deep battery discharge, automatic protection will trigger and break the UPS electrical circuit.
- Voltage stabilization
SolarX UPS units come with a built-in voltage stabilizer. This provides automatic voltage regulation, i.e. automatically raising low voltage and lowering high voltage to a level suitable for correct equipment operation within the permissible input voltage range, without switching to battery power. This protects boiler, network and medical equipment and many other technical devices for private and administrative use from failures and interruptions, as well as ensuring data integrity.
Delivery «New Mail»
On average, delivery takes 1-2 days. If necessary, our managers can tell you the exact date and cost of delivery. This delivery method is suitable for people who want to quickly receive their order.
Delivery «New Mail» courier delivery
On average, delivery takes 1-2 days.
Pickup from the office
You can pick up an order from our office in the city of Kiev: st. Liteiny 7. Schedule: Mon – Fri from 9:00 to 18:00.
| Model | SX-NE20KR01 |
| UPS type | On-line с двойным преобразованием |
| Rated power | 20000 ВА |
Активная выходная мощность |
18000 Вт |
| Input | |
| Rated input voltage | 380/400/415В (3Ph+N+PE) или 220/230/240В (L+N+PE) (настраивается) |
| Input voltage range | 208~478В или 120~276В |
Входящая частота |
50Гц: 45~55Гц, 60Гц: 54~66Гц |
Коэффициент мощности на выходе |
>0,99 |
Гармоническое искажение |
≤3% (при 100% нелинейной нагрузке) |
Количество фаз, вход/выход |
3/1 или 1/1 |
| Output | |
| Output voltage | 220/230/240В (L + N + PE) |
| Output frequency |
При автономной синхронизации: 50/60Гц+5Гц При синхронизации от сети: 1%, 2%, 5% (настраивается) |
Стабильность выходного напряжения |
1% |
Гармоническое искажение |
≤2% на линейной нагрузке, ≤5% на линейной нагрузке |
Коэффициент полезного действия в стандартном режиме |
0,95 |
Коэффициент полезного действия в эко режиме |
0,988 |
Допустимая перегрузка |
• 100-110% в течение 60 мин • 120-125% в течение 10 мин |
| Transfer time to battery | 0 мс |
Форма выходного сигнала |
Чистая синусоида |
| Bypass | |
Автоматический байпас |
Да (встроенный) |
Сервисный байпас |
Да (для проведения обслуживания) |
| Battery | |
| Battery type | Герметичные, свинцово-кислотные, необслуживаемые (VRLA AGM) |
Возможность добавления батарей для увеличения времени автономной работы |
Yes |
Количество и тип АКБ |
В зависимости от емкости батарей |
Встроенные АКБ |
Да(опционально) |
| Battery service life | 5 лет |
Зарядный ток |
10А |
| Alarm | |
| Low battery | При работе от АКБ и низком заряде четыре коротких сигнала каждую секунду и заряд АКБ |
| Overload | Гудок. Непрерывное звучание сигнала и уровень нагрузки на ИБП |
| Battery replacement error/indication | Непрерывное звучание сигнала и символа на экране |
| UPS control | |
| Control panel | ЖК-дисплей для управления и контроля состояния ИБП |
| Software | ПЗ для контролю ИБП |
| Communication ports | 1 последовательный порт RS232,Ethernet(опционально),SNMP(опционально) |
| General characteristics and functions | |
| Voltage stabilizer (AVR) | Yes |
| Cold start function | Yes |
Функция самодиагностики |
Yes |
Функция дистанционного аварийного отключения (EPO) |
Yes |
| Short-circuit protection | Yes |
| Overload and voltage surge protection | Yes |
| Overheat protection | Yes |
Защита от глубочайшего разряда АКБ |
Yes |
| UPS dimensions (LxWxH) | 668 х 438 х 266 мм |
| Weight | 45 кг |
| Environment | |
| Operating temperature | 0 ~ 40 °С |
| Relative humidity at 25°C | 0~95% (без образования конденсата) |
| Acoustic noise level | <58 дБ на расстоянии 1 метр |
| Protection rating | IP31 |
| Warranty | |
| UPS warranty | 12 месяцев |
Батерейный шкаф |
|
Батереи |
7Aч х 20-40шт. или 9Aч х 20-40шт. |
| Dimensions | 502х250х616 |
| Weight | До 112 кг или до 130 кг (в зависимости от количества АКБ) |
