UPS SolarX SX-NBR5000T01
Specify the price at the manager
12 місяців
в Україні
поставка
підтримка

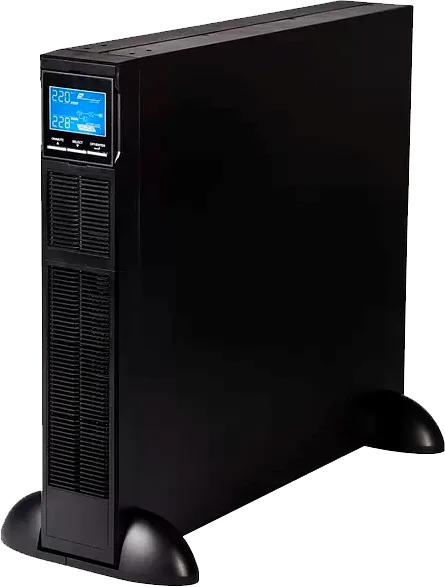

The SolarX SX-NBR5000T01 UPS with pure sine wave output and high conversion efficiency has a low maximum heating temperature during operation and a fairly low noise level. This UPS is an example of an affordable and versatile device. Thanks to the built-in battery, all you need to do to operate the UPS is connect it to the mains and connect your devices to the uninterruptible power supply.
Main features
Guaranteed stable and safe operation
The UPS is equipped with protection against overload, overcharge and deep discharge of the battery, which guarantees safe use of both the UPS and the devices connected to it. The output ports are equipped with a noise filtering function, so the uninterruptible power supply can be used even in places with poor-quality electricity.
Simple connection
To put the UPS into operation, it is enough to simply connect it to the mains and the consumers of electricity. This is so simple that connecting the UPS takes less than a minute.
Безопасная и надежная автоматическая защита
In case of critical temperature rise during improper operation of the inverter, voltage exceeding the set maximum and minimum values, overcharge, or deep battery discharge, automatic protection is triggered, which opens the UPS electrical circuit.
Уникальная конструкция
Thanks to its unique construction and well-thought-out design, the UPS does not take up much space and looks quite modern. This allows it to be placed in a visible spot where other UPS units simply would not fit. And thanks to the large number of output ports, the UPS guarantees uninterrupted power to all important devices.
Delivery «New Mail»
On average, delivery takes 1-2 days. If necessary, our managers can tell you the exact date and cost of delivery. This delivery method is suitable for people who want to quickly receive their order.
Delivery «New Mail» courier delivery
On average, delivery takes 1-2 days.
Pickup from the office
You can pick up an order from our office in the city of Kiev: st. Liteiny 7. Schedule: Mon – Fri from 9:00 to 18:00.
| Model | SX-NBR5000T01 |
| UPS type | Line-interactive (линейно-интерактивный) |
| Design type | Rack Mount (монтаж в стойку, коммуникационную шкаф) |
Максимальная мощность, полная / полезная |
5000 ВА / 4500 Вт |
| Input | |
| Input voltage | 230 В АС |
| Permissible voltage range | 160 - 286 В АС (при полной нагрузке) |
Сменный диапазон входного напряжения |
150 - 305 В АС |
| Grid frequency | 50/60 Гц ± 3 Гц (автоматическая настройка) |
| Output | |
| Output voltage | 220В / 230В / 240В АС |
| Output frequency | Синхронизирована с электросетью 47 - 53 Гц |
| Sine wave shape | Чистая синусоида |
Время переключения на АКБ (типичный / максимальный) |
2 мс / 4 мс |
Эффективность под полной нагрузкой |
96% |
Пик-фактор нагрузки |
3: 1 |
Количество и тип выходных разъемов |
8 IEC C13 с резервированием от АКБ / фильтрацией шумов |
Вутренний байпас |
Да (автоматическое / ручное включение) |
| Battery | |
| Battery type | Необслуживаемая герметичная свинцово-кислотная батарея с защитой от утечки. |
| Battery specifications | 16х7AH12V |
| Battery service life | 3 - 5 лет |
| Runtime at full load | ≥ 12 минут |
| Recharge time | До 4 ч. после полного разряда |
отображение информации | |
Многофункциональная консоль контроля и управления с ЖК-дисплеем |
Yes |
Интеллектуальное управление батареями |
Yes |
| Light indication | Yes |
Защиты | |
Защита от всплесков напряжения |
Yes |
Фильтрация шумов |
480 Дж |
| Overload protection | Yes |
| Short-circuit protection | Yes |
| Reverse polarity protection | Yes |
| Communications | |
| USB | В комплекті |
| Serial RJ45 | В комплекті |
SNMP плата, плата AP9630 |
В комплекті |
DB-9 RS-232 |
В комплекті |
Smart Slot |
В комплекті |
| General characteristics | |
| Dimensions (LxWxH) | 719х432х130 мм |
| Weight | 54.5 кг |
| Automatic fuse | Yes |
Автоматическая самодиагностика |
Yes |
| Software | Встроенное (централизованное, возможность обновления) |
Рейки для монтажа |
В комплекте |
| Environment | |
| Operating temperature | 0 ° С - 40 ° C |
| Noise level | <50 дБ на расстоянии 1 метр |
| Relative humidity at 25°C | 0 - 95% (без конденсата) |
| Warranty | |
ИБП (ремонт или замена) |
24 месяца |
| Battery | 24 месяца |
