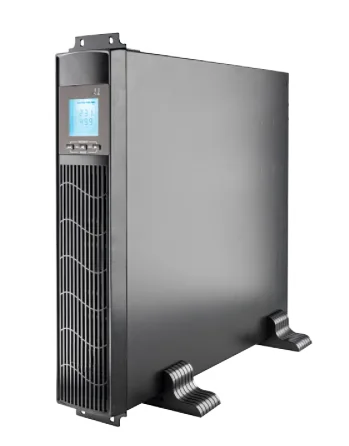

UPS SolarX SX-NBR2000 T02
18800 грн
12 місяців
в Україні
поставка
підтримка
UPS SolarX SX-NBR2000 T02 with a output pure sine wave and high conversion efficiency has a low maximum heating temperature during operation and a fairly low noise level. This UPS is an example of an affordable and versatile device. Thanks to the built-in battery, all you need to do to operate the UPS is connect it to the mains and connect your devices to the uninterruptible power supply.
Main features
Guaranteed stable and safe operation
The UPS is equipped with protection against overload, overcharge and deep discharge of the battery, which guarantees safe use of both the UPS and the devices connected to it. The output ports are equipped with a noise filtering function, so the uninterruptible power supply can be used in areas with poor-quality electricity.
Simple connection
To put the UPS into operation, it is enough to simply connect it to the mains and the consumers of electricity. This is so simple that connecting the inverter takes no more than 5 minutes.
Safe and reliable automatic protection
In case of critical temperature rise during improper inverter operation, voltage exceeding the set maximum and minimum values, overcharge, or deep battery discharge, automatic protection is triggered, which opens the UPS electrical circuit.
Pure sine wave
A pure sine wave is very important for devices that require high-quality electricity, such as server and telecommunications equipment, devices used in the medical field, etc. Also, for devices without a switching power supply, a pure sine wave UPS will significantly extend the service life of your devices.
Delivery «New Mail»
On average, delivery takes 1-2 days. If necessary, our managers can tell you the exact date and cost of delivery. This delivery method is suitable for people who want to quickly receive their order.
Delivery «New Mail» courier delivery
On average, delivery takes 1-2 days.
Pickup from the office
You can pick up an order from our office in the city of Kiev: st. Liteiny 7. Schedule: Mon – Fri from 9:00 to 18:00.
| Model | SX-NBR2000T02 |
| UPS type | On-line (с двойным преобразованием) |
| Design type | Rack Mount (монтаж в стойку) |
Мощность, полная / полезная |
2000 ВА / 1800 Вт |
| Input | |
| Input voltage | 230 В АС |
| Permissible voltage range | 110 – 285 В AC, Adjustable (half load), 160-280В |
| Grid frequency | 40-70 Гц |
| Output | |
| Output voltage | 230 В АС |
| Output frequency | Синхронизирована с электросетью 50 Гц ± 3Гц |
| Sine wave shape | Чистая синусоида |
| Switch-over time to battery | 0 мс |
Пик-фактор нагрузки |
3: 1 |
| Output connector type | IEC 60320 C13 |
| Number of output connectors | 8 с резервированием от АКБ / фильтрацией шумов |
Внутренний байпас |
Да (автоматическое / ручное включение) |
| Battery | |
| Battery type | Необслуживаемая герметичная свинцово-кислотная батарея с защитой от утечки. |
| Battery specifications | 4х9AH12V |
| Battery service life | 3 - 5 лет |
| Runtime at full load | ≥ 8 минут |
| Recharge time | 6 ч. после полного разряда |
| Information display | |
Многофункциональная консоль контроля и управления с ЖК-дисплеем |
Yes |
Интеллектуальное управление батареями |
Yes |
| Light indication | Yes |
| Protection | |
Защита от всплесков напряжения |
Yes |
фильтрация шумов |
600 Дж |
| Overload protection | Yes |
| Short-circuit protection | Yes |
| Reverse polarity protection | Yes |
| Audible alarm | |
Сигнал исчерпания заряда батарей |
При работе от АКБ и низком заряде четыре короткие |
Сигнал перегрузки |
Сигналы каждую секунду |
Сигнал перехода в режим работы от аккумуляторов |
Непрерывное звучание сигнала |
| Communications | |
| USB | В комплекте |
| Serial RJ45 | Опция |
SNMP плата |
Опция |
Кабель RS-232 |
Опция |
Компакт диск с ПО |
Опция |
| General characteristics | |
| Dimensions (LxWxH) | 660х486х88 (2U) мм |
| Weight | 18.5 кг |
| Housing material | черный металл |
| Automatic fuse | Yes |
Автоматическая самодиагностика |
Yes |
| Software | Встроенное (централизованное, возможность обновления) |
Рельсы для монтажа |
В комплекте |
| Environment | |
| operating temperature | 0 ° С - 40 ° C |
уровень шума |
<50 дБ на расстоянии 1 метр |
| Relative humidity at 25°C | 0 - 95% (без конденсата) |
