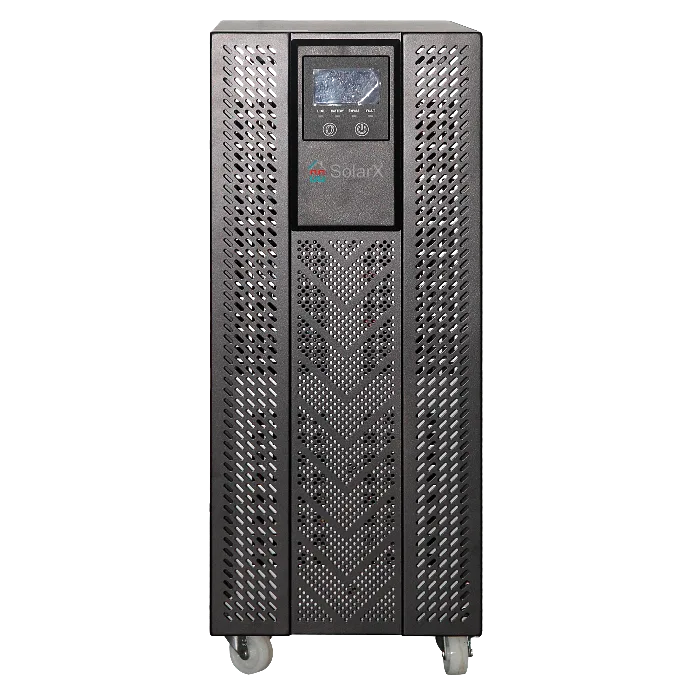

UPS SolarX SX-NB7500
Specify the price at the manager
12 місяців
в Україні
поставка
підтримка
Extended protection
The online double-conversion design allows the UPS output to be a pure sine wave power source with frequency tracking, voltage stabilization, phase synchronization, and filtering of noise and interference from mains fluctuations. All this ensures complete protection of the connected load.
Control system
The control system has become more stable and reliable thanks to the digital processor and its performance characteristics. Even in poor electrical conditions, it can ensure stable and continuous operation. Thanks to the self-diagnostic function, it can detect hidden UPS faults in time and prevent them from occurring.
Improved characteristics
The wide input voltage range of 115V~300V AC avoids frequent switching to battery power during significant mains voltage fluctuations. This is suitable for areas with poor-quality power supply. At half load, the input voltage can be as low as 115V without switching to battery power. The input frequency range is 46~64 Hz, ensuring compatibility and stable operation with all types of fuel generators.
Intelligent management
The UPS is equipped with an RS232 interface, which allows convenient monitoring of its operation using the included local monitoring software. The UPS can additionally be equipped with an SNMP card.
Delivery «New Mail»
On average, delivery takes 1-2 days. If necessary, our managers can tell you the exact date and cost of delivery. This delivery method is suitable for people who want to quickly receive their order.
Delivery «New Mail» courier delivery
On average, delivery takes 1-2 days.
Pickup from the office
You can pick up an order from our office in the city of Kiev: st. Liteiny 7. Schedule: Mon – Fri from 9:00 to 18:00.
| Model | SX-NB7500 |
| UPS type | On-line (С двойным преобразованием) |
| Design type | Tower |
| Power | |
Выходная мощность, полная / полезная |
7500 ВА / 7500 Вт |
Выходная мощность при работе от АКБ, полная / полезная |
7500 ВА / 6000 Вт |
| Power factor | 0.8 |
Коэффициент мощности (эко режим) |
1 |
| Input | |
| Input voltage | 200/208/220/230/240 В АС |
| Permissible voltage range | 180 – 260 В AC |
| Grid frequency | 50/60 Гц (Автоматически) |
| Output | |
| Output voltage | 200/208/220/230/240 В АС (По выбору) |
| Output frequency | 50/60 Гц ±2% |
форма синусоиды |
Чистая синусоїда |
| Switch-over time to battery | 0 мс |
| Crest factor | 3:1 |
| Output connector type | Клеммный терминал |
| Bypass | Да (автоматическое / ручное управление) |
| Battery | |
| Battery type | Необслуживаемая герметичная свинцово-кислотная батарея с защитой от утечки. |
| Battery specifications | 7Аг 12В |
| Battery service life | 3 – 5 лет |
| Runtime at full load | ≤ 10 минут |
| Recharge time | до 5 часов до 90% после полного разряда |
| Information display | |
ЖК-дисплей |
Yes |
| UPS control | Yes |
Сетовая индикация |
Yes |
| Audible alarm | Да (возможность отключения) |
| Protection | |
| Overload protection | Yes |
| Short-circuit protection | Yes |
| Reverse polarity protection | Yes |
| Overload and voltage surge protection | Yes |
| High/low voltage protection | Yes |
| Overheat protection | Yes |
Коммуникация | |
| USB | В комплекте |
| Serial RJ45 | В комплекте |
| General characteristics | |
| Dimensions (LxWxH) | 515х250х608 мм |
| Weight | 57 кг |
Тип предохранителя |
Automatic |
Наличие холодного старта |
Yes |
Интеллектуальный расчет замены АКБ |
Yes |
| Software | Встроенное (централизованное, возможность обновления) |
| Environment | |
| Operating temperature | 0 ° С - 45 ° C |
| Noise level | <50 дБ на расстоянии 1 метр |
| Relative humidity at 25°C | 20 - 95% (без конденсата) |
| Warranty | |
| UPS | 24 месяцев |
| Battery | 12 месяцев |
