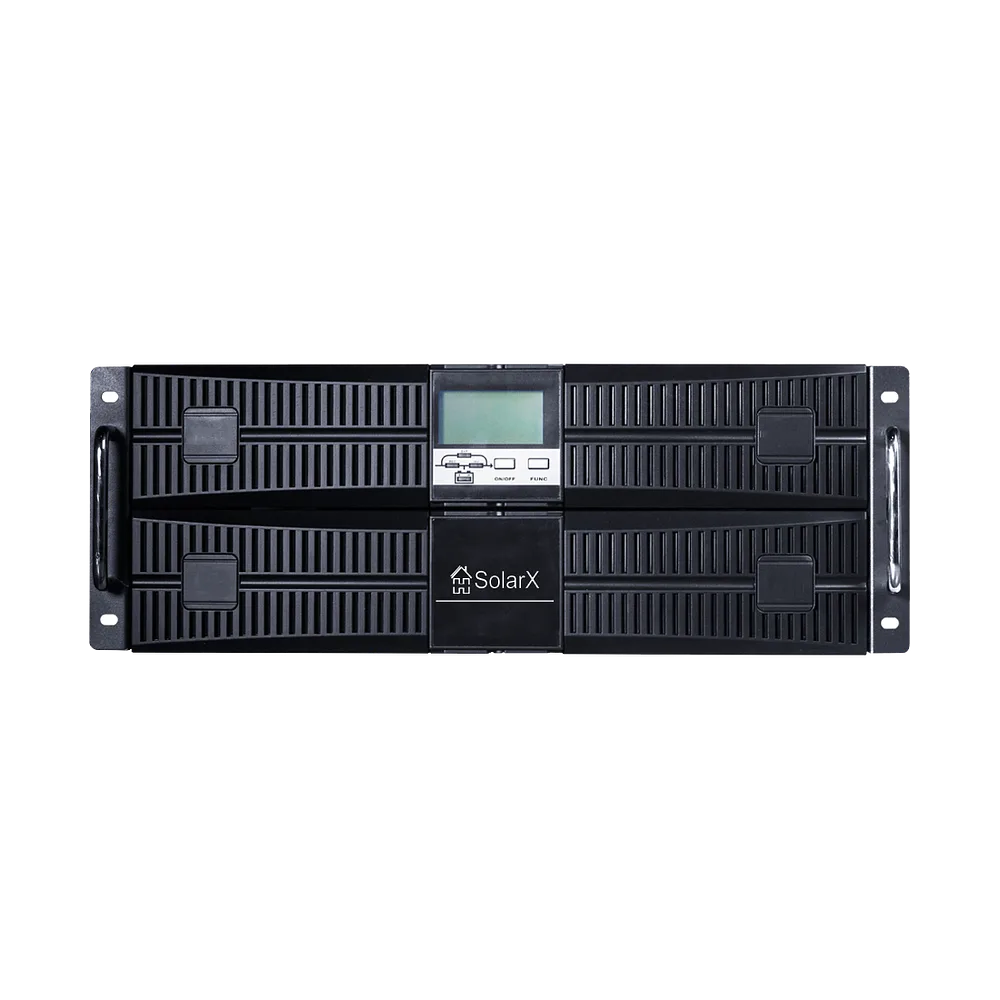

UPS SolarX SX-NB6000R02
Specify the price at the manager
12 місяців
в Україні
поставка
підтримка
Extended protection
The online double-conversion design allows the UPS output to be a pure sine wave power source with frequency tracking, voltage stabilization, phase synchronization, and filtering of noise and interference from mains fluctuations. All this ensures complete protection of the connected load.
Control system
The control system has become more stable and reliable thanks to the digital processor and its performance characteristics. Even in poor electrical conditions, it can ensure stable and continuous operation. Thanks to the self-diagnostic function, it can detect hidden UPS faults in time and prevent them from occurring.
Improved characteristics
The wide AC voltage range prevents frequent switching to battery power during significant mains voltage fluctuations. This is suitable for areas with poor-quality power supply networks. At half load, the input voltage can be up to 160 V without switching to battery power.
Intelligent management
The UPS is equipped with an RS232 interface, which allows convenient monitoring of its operation using the included local monitoring software. The UPS can additionally be equipped with an SNMP card.
Delivery «New Mail»
On average, delivery takes 1-2 days. If necessary, our managers can tell you the exact date and cost of delivery. This delivery method is suitable for people who want to quickly receive their order.
Delivery «New Mail» courier delivery
On average, delivery takes 1-2 days.
Pickup from the office
You can pick up an order from our office in the city of Kiev: st. Liteiny 7. Schedule: Mon – Fri from 9:00 to 18:00.
| Model | SX-NB6000R02 |
| UPS type | On-Line (непрерывного действия, двойное преобразование), однофазное |
Тип выполнение |
Rack Mount (для установки в 19 "шкаф) |
Максимальная мощность полная / полезная |
6000 ВА / 6000 Вт |
| Input | |
| Rated input voltage | 220 В (+/- 10%) |
| Input voltage range | 110В - 288В без перехода на батарею |
| Grid frequency | 40-70 Гц (автоматическая настройка) |
| Power factor | 1 |
| Output | |
Входящий напряжение |
220 В (+/- 10%) |
Входящий частота |
50/60 Гц ± 0.1 Гц (Синхронизированная с электросетью) |
Форма синусоиди |
чистая синусоида |
| Switch-over time to battery | 0 мс |
Искажение формы исходное напряжения |
Менее 2% |
Пик-фактор НАГРУЗКИ |
3: 1 |
| Output connector type | клеммная колодка |
Внутренний байпас |
да |
| Battery | |
| Battery type | Необслуживаемая герметичная свинцово-кислотная батарея с защитой от утечек. |
| Battery specifications | 16х7AH12V |
| Battery service life | 5 лет |
Возможность подключения внешнего батарейного блока |
Yes |
Время работы при полной нагрузке 100% |
≥ 5 минут |
Функция горячего замене АКБ |
Yes |
| Recharge time | 6-8 часов |
| Information display | |
| Control panel |
Информационный ЖК дисплей и светодиодные индикаторы с отображением информации о: входное напряжение, выходное напряжение, режим работы (от сети / от батарей), уровень нагрузки, уровень заряда аккумуляторов |
| Audible alarm | Yes |
Вветовая индикация |
Yes |
| Alarm | |
Низкая заряд АКБ |
При работе от АКБ и низком заряде четыре коротких сигнала каждую секунду и заряд АКБ |
| Overload | Гудок. Непрерывное звучание сигнала и уровень нагрузки на ИБП |
Ошибка или индикация замене батареи |
Непрерывное звучание сигнала и символ на экране |
Защиты | |
| Voltage stabilizer (AVR) | Yes |
| Cold start function | Yes |
Аварийное отключение питания ЕРО |
Yes |
Защита от высокие и низькои напряжения |
Yes |
| Overload protection | Yes |
| Short-circuit protection | Yes |
| Reverse polarity protection | Yes |
| Overheat protection | Yes |
| Deep discharge protection | Yes |
коммуникации | |
Интерфейсной порт |
RS-232(опционально), USB |
Аварийное Выключение питания (EPO) |
Yes |
| General characteristics | |
| Dimensions (LxWxH) | 800 х 590 х 435 |
| Weight | 57 кг |
| Automatic fuse | Yes |
Зарядное устройство |
В наличии |
Комплектация |
Источник бесперебойного питания, комплект крепления для монтажа в стойку 19 '', переходник с внешним блоком розеток с выходами Schuko |
| Environment | |
| Operating temperature | 0 ° С - 40 ° C |
| Noise level | <50 дБ на расстоянии 1 метр |
| Relative humidity at 25°C | 0 - 95% (без конденсата) |
| Warranty | |
| UPS warranty | 24 месяца |
