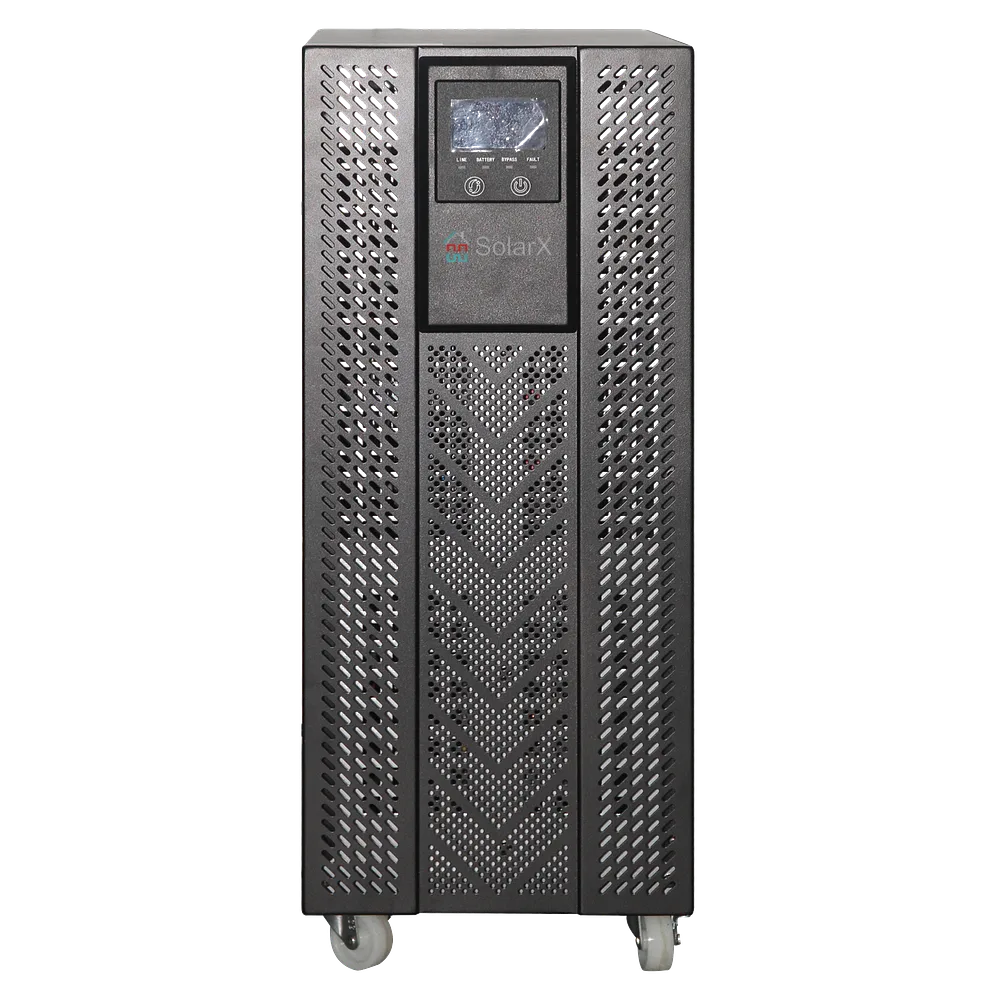

UPS SolarX SX-NB1110
Артикул: SXNB1110
Specify the price at the manager
12 місяців
в Україні
поставка
підтримка
ИБП SolarX SX-NB1110 with a pure sine wave and high conversion efficiency has a low maximum heating temperature during operation and a fairly low noise level. This inverter is an example of an affordable and versatile device. Thanks to the built-in battery, all you need to do to operate the UPS is connect it to the mains and connect your devices to the uninterruptible power supply.
Key advantages and product features:
- Guaranteed stable and safe operation
The UPS is equipped with protection against overload, overcharge and deep discharge of the battery, which guarantees safe use of both the UPS and the devices connected to it. The output ports are equipped with a noise filtering function, so the uninterruptible power supply can be used in areas with poor-quality electricity.
-Simple connection
To commission the UPS, you simply need to connect it to the mains and to the power consumers. It is so simple that connecting the inverter takes no more than 5 minutes.
-Safe and reliable automatic protection
In case of critical temperature rise during improper operation of the inverter, voltage exceeding the set maximum and minimum values, overcharge, or deep battery discharge, automatic protection is triggered, which opens the UPS electrical circuit.
-Pure sine wave
A pure sine wave is very important for devices that require high-quality electricity, such as: heating boilers, server and telecommunications equipment, devices used in the medical field, etc. Also, in the absence of a switching power supply in the devices, a pure sine wave inverter will significantly extend the life of your devices.
Delivery «New Mail»
On average, delivery takes 1-2 days. If necessary, our managers can tell you the exact date and cost of delivery. This delivery method is suitable for people who want to quickly receive their order.
Delivery «New Mail» courier delivery
On average, delivery takes 1-2 days.
Pickup from the office
You can pick up an order from our office in the city of Kiev: st. Liteiny 7. Schedule: Mon – Fri from 9:00 to 18:00.
| Model | SX-NB1110 |
|
| UPS type | On-line (непрерывного действия с двойным преобразованием) |
|
| Design type | Tower(башня) |
|
Мощность, полная / полезная |
10 000 ВА / 10 000 Вт |
|
Количество фаз (вход / выход) |
1/1 |
|
| Input | ||
| Input voltage | 200/208/220/230/240 В АС |
|
| Permissible voltage range | 110 – 300 В AC |
|
| Grid frequency | 50/60 Гц (автоматично) |
|
Диапазон сети |
46 ~ 54/56 ~ 64 Гц |
|
| Output | ||
| Output voltage | 200/208/220/230/240 В АС ± 1% (выбирается пользователем) |
|
| Output frequency | 50/60 Гц ± 3 Гц |
50/60 Гц ± 3 Гц |
50/60 Гц ± 0.1 Гц |
50/60 Гц ± 0.1 Гц |
|
| Sine wave shape | чистая синусоида |
|
| Switch-over time to battery | 0 мс |
|
| Crest factor | 3: 1 |
|
| Output connector type | клеммное |
|
| Battery | ||
| Battery | Встроенные (12В9Аг) |
|
| Battery type | Необслуживаемая герметичная свинцово-кислотная батарея с защитой от утечки. |
|
| Quantity | 16 шт. |
|
Напряжение питания АКБ |
192В |
|
Зарядное устройство АКБ |
Встроенный (2А) |
|
| Information display | ||
РК-дисплей |
Да (входящая и исходящая напряжение; режим работы (от сети / от батареи), уровень нагрузки, значение заряда аккумуляторов;) |
|
| Light indication | так |
|
| Audible alarm | Да (возможность отключения) |
|
Комуникации | ||
| USB | В комплекте |
|
| Serial RJ45 | опционально |
|
SNMP плата |
опционально |
|
Датчик температуры и влажности |
опционально |
|
| General characteristics | ||
| Protection | защита от короткого замыкания, перегрузки, высокого и низкого напряжения, защита батарей от глубокого разряда и перезаряда, защита от всплесков напряжения |
|
| Dimensions | 515 × 250 × 608 мм |
|
| Weight | 65 кг |
|
Интеллектуальный расчет замены АКБ |
так |
|
| Software | Встроенное (централизованное, возможность обновления) |
|
| Environment | ||
| Operating temperature | 0 ° С - 45 ° C |
|
| Noise level | <58 дБ на расстоянии 1 метр |
|
| Relative humidity at 25°C | 10 - 95% (без конденсата) |
|
| Warranty | ||
| UPS | 12 месяцев |
|
