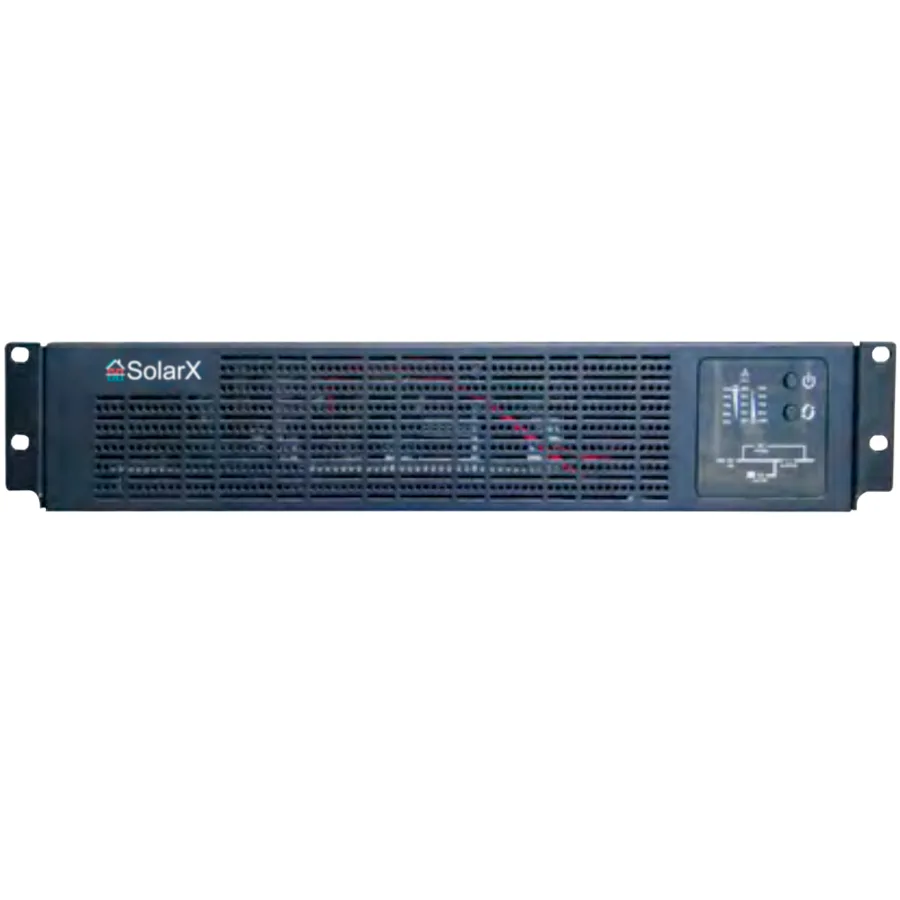

UPS SolarX SX-NB1102R
Specify the price at the manager
12 місяців
в Україні
поставка
підтримка
The SolarX SX-NB1102R UPS with pure sine wave output and high conversion efficiency has a low maximum heating temperature during operation and a fairly low noise level. This UPS is an example of an affordable and versatile device. Thanks to the built-in battery, all you need to do to operate the UPS is connect it to the mains and connect your devices to the uninterruptible power supply.
Main features
Guaranteed stable and safe operation
The UPS is equipped with protection against overload, overcharge and deep discharge of the battery, which guarantees safe use of both the UPS and the devices connected to it. The output ports are equipped with a noise filtering function, so the uninterruptible power supply can be used even in places with poor-quality electricity.
Simple connection
To put the UPS into operation, it is enough to simply connect it to the mains and the consumers of electricity. This is so simple that connecting the inverter takes no more than 5 minutes.
Safe and reliable automatic protection
In case of critical temperature rise during improper operation of the inverter, voltage exceeding the set maximum and minimum values, overcharge, or deep battery discharge, automatic protection is triggered, which opens the UPS electrical circuit.
Pure sine wave
A pure sine wave is very important for devices that require high-quality electricity, such as server and telecommunications equipment, devices used in the medical field, etc. Also, in the absence of a switching power supply in the devices, a UPS with a pure sine wave will significantly extend the life of your devices.
Delivery «New Mail»
On average, delivery takes 1-2 days. If necessary, our managers can tell you the exact date and cost of delivery. This delivery method is suitable for people who want to quickly receive their order.
Delivery «New Mail» courier delivery
On average, delivery takes 1-2 days.
Pickup from the office
You can pick up an order from our office in the city of Kiev: st. Liteiny 7. Schedule: Mon – Fri from 9:00 to 18:00.
| Placement type | Rack-mount (шкаф, стойка 19 '') |
| Architecture type | On-Line (непрерывного действия) |
| Input | |
| Диапазон напряжения без перехода на АКБ |
110 - 300 В |
| Grid frequency | 50/60 Гц (автонастройка) |
| Number of phases, input/output | 1/1 |
| Output | |
| Apparent power | 2000 ВА |
| Output power | 1800 Вт |
| Выходное напряжение при работе от АКБ |
200/208/220/230/240 В ± 1% |
| Output frequency | 50/60 Гц ± 0.1 Гц (автоматический выбор) |
| Импульсный защиту |
637 Дж |
| Transfer time to battery | 0 мс |
| Время перехода с инвертора на байпас |
4 мс |
| Sine wave shape | Чистая (правильная) синусоида |
| Number and type of outputs | 4 шт. х IEC320-C13 с батарейной поддержкой или 2 шт. х Schuko CEE 7/7 с батарейной поддержкой |
| Battery | |
| Battery type | Встроенная, герметичная необслуживаемая свинцово-кислотная батарея с загущенным электролитом и защитой от утечек (AGM). |
| Количество АКБ |
6 шт. |
| Voltage and capacity | 12 В 9 Ач |
| Срок службы АКБ (при температуре 20 ° С) |
10 лет |
| Runtime at 100% load | ≥ 12 мин. |
| Charge time | До 6 часов |
| Ток заряда АКБ |
6 А |
| UPS control | |
| Слот под SNMP-карты |
Да (1 слот) |
| Порт управления USB |
Да (1 порт) |
| Порт управления RS-232 (последовательный порт) |
Да (1 порт) |
| General characteristics and functions | |
| Information display | ЖК – экран |
| Voltage stabilizer (AVR) | Yes |
| Экономичный режим (ECO mode) |
Yes |
| Cold start function | Yes |
| Автоматический выключатель |
Yes |
| Short-circuit protection | Yes |
| Overload and voltage surge protection | Yes |
| Low/high voltage protection | Yes |
| Overheat protection | Yes |
| Deep discharge protection | Yes |
| Размеры (ШхГхВ) |
410х438х88 (2U) мм |
| Weight | 12 кг |
