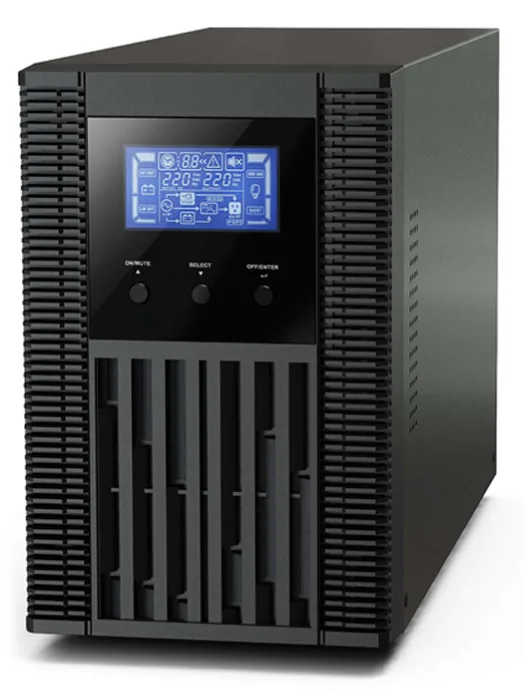

UPS SolarX SX-NB1000LCD-01
Specify the price at the manager
12 місяців
в Україні
поставка
підтримка
The SolarX SX-NB1000LCD-01 UPS with pure sine wave output and high conversion efficiency has a low maximum heating temperature during operation and a fairly low noise level. This UPS is an example of an affordable and versatile device. Thanks to the built-in battery, all you need to do to operate the UPS is connect it to the mains and connect your devices to the uninterruptible power supply.
Main features
Guaranteed stable and safe operation
The UPS is equipped with protection against overload, overcharge and deep discharge of the battery, which guarantees safe use of both the UPS and the devices connected to it. The output ports are equipped with a noise filtering function, so the uninterruptible power supply can be used even in places with poor-quality electricity.
Simple connection
To put the UPS into operation, it is enough to simply connect it to the mains and the consumers of electricity. This is so simple that connecting the inverter takes no more than 5 minutes.
Safe and reliable automatic protection
In case of critical temperature rise during improper operation of the UPS, voltage exceeding the set maximum and minimum values, overcharge, or deep battery discharge, automatic protection is triggered, which opens the UPS electrical circuit.
Pure sine wave
A pure sine wave is very important for devices that require high-quality electricity, such as server and telecommunications equipment, devices used in the medical field, etc. Also, in the absence of a switching power supply in the devices, a UPS with a pure sine wave will significantly extend the life of your devices.
Delivery «New Mail»
On average, delivery takes 1-2 days. If necessary, our managers can tell you the exact date and cost of delivery. This delivery method is suitable for people who want to quickly receive their order.
Delivery «New Mail» courier delivery
On average, delivery takes 1-2 days.
Pickup from the office
You can pick up an order from our office in the city of Kiev: st. Liteiny 7. Schedule: Mon – Fri from 9:00 to 18:00.
| Model | SX- NB1000LCD-01 |
| Placement type | Классический (tower) |
| Architecture type | On-Line (непрерывного действия, двойное преобразование) |
| Input | |
| Input voltage | 220/230/240 В |
| Input voltage range | 145-290 В |
| Grid frequency | 50 – 60 Гц |
| Number of phases, input/output | 1/1 |
| Output | |
| Apparent power | 1000 ВА |
| Output power | 900 Вт |
| Output voltage | 220 В |
| Output frequency | 50/60 Гц ± 0.1 Гц (автоматический выбор) |
| Transfer time to battery | 0 мс |
Импульсная защита |
2225 Дж |
| Sine wave shape | чистая синусоида |
| Number and type of outputs | 2 шт. х EURO F-type (отдельно управляемые с заземлением) с батарейной поддержкой и фильтрацией шумов |
| Battery | |
| Battery type | Встроенная, герметичная необслуживаемая свинцово-кислотная батарея с загущенным электролитом и защитой от утечек (VRLA AGM). |
Напряжение аккумуляторных батарей |
24 В |
Количество и емкость АКБ |
2 шт. х 7,5 Ач |
Ток заряда батареи |
1 А |
| Battery service life | 10 лет |
| Runtime at 50% load | ≥ 23 мин. |
| Runtime at 100% load | ≥ 9 мин. |
| Charge time | До 4 часов до 90% заряда |
| UPS control | |
Слот под SNMP-карты |
Да (1 слот, опционально) |
Порт RS-232 |
Да (1 порт) |
| General characteristics and functions | |
| Information display | ЖК - экран (LCD дисплей) |
Байпас (обходной режим) |
Yes |
Энергосберегающий режим |
Yes |
| Voltage stabilizer (AVR) | Yes |
| Cold start function | Yes |
| Short-circuit protection | Yes |
Защита от перегрузки и перенапряжения |
Yes |
| Low/high voltage protection | Yes |
Защита от избыточного заряда |
Yes |
| Deep discharge protection | Yes |
Размеры (ШхГхВ) |
397х145х220 мм |
| Weight | 12,5 кг |
Зарядное устройство |
В наличии |
| Environment | |
| Operating temperature | 0 ~ 40 °С |
| Relative humidity at 25°C | 20 ~ 95% (без конденсации) |
| Noise level | <50 дБ на расстоянии 1 метр |
| Warranty | |
| UPS warranty | 12 месяцев |
Гарантия на АКБ |
12 месяцев |
