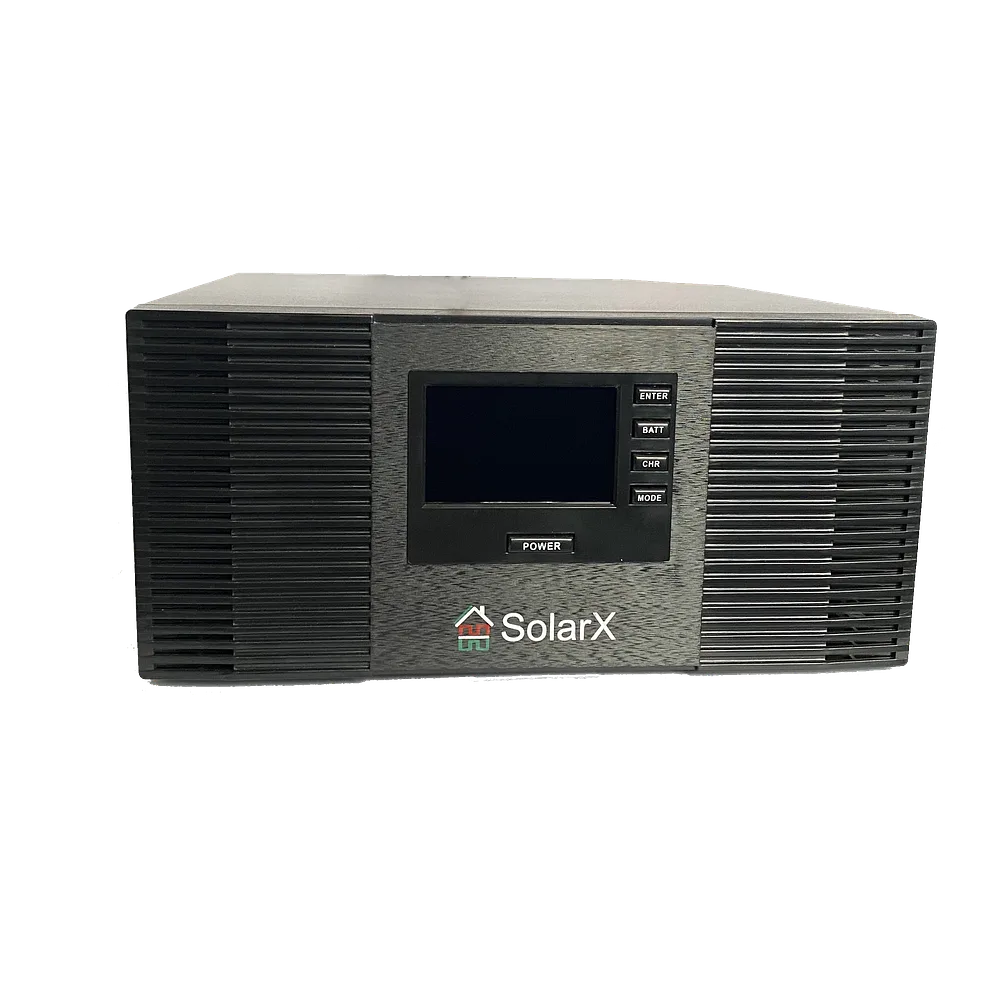

UPS SolarX SX-LET500
Specify the price at the manager
12 місяців
в Україні
поставка
підтримка
UPS SolarX SX-LET500 with a pure sine wave output and high conversion efficiency has a multi-stage fan for automatic internal temperature regulation, low maximum heating temperature during operation and a fairly low noise level. This UPS is an example of an affordable and versatile device. All you need to do is connect the UPS terminals to the batteries and AC devices to the pure sine wave output.
Key advantages and product features
Pure sine wave
A pure sine wave is very important for devices that require high-quality electricity, such as server and telecommunications equipment, devices used in the medical field, etc. Also, in the absence of a switching power supply in the devices, a UPS with a pure sine wave will significantly extend the life of your devices.
Simple connection
To put the UPS into operation, it is enough to simply connect it to the external battery and the electricity consumer. This is so simple that connecting the power source takes no more than 10 minutes.
Safe and reliable automatic protection
In case of critical temperature rise during improper operation of the UPS, or voltage exceeding the set maximum and minimum values, automatic protection is triggered, which opens the UPS electrical circuit.
Unique design
Thanks to its unique construction and well-thought-out design, the UPS does not take up much space and looks quite modern. This allows it to be placed in a visible spot where others simply would not fit. And thanks to the compact arrangement of external outputs, the controls are located remotely from the UPS power section, ensuring minimal connection time and comfortable, safe maintenance.
Delivery «New Mail»
On average, delivery takes 1-2 days. If necessary, our managers can tell you the exact date and cost of delivery. This delivery method is suitable for people who want to quickly receive their order.
Delivery «New Mail» courier delivery
On average, delivery takes 1-2 days.
Pickup from the office
You can pick up an order from our office in the city of Kiev: st. Liteiny 7. Schedule: Mon – Fri from 9:00 to 18:00.
| Placement type | Напольное (Tower) |
| Architecture type | Линейно-интерактивный |
| Input | |
| Input voltage range | 100 - 290 В |
| Input frequency | 50/60 Гц (Автоматическое определение) |
| Input frequency range | 45-65 Гц |
| Output | |
| Apparent power | 600 ВА |
| Useful power | 500 Вт |
| Output voltage waveform | Чистая синусоида |
| Rated output voltage | 220 В ± 10% |
| Output frequency | 50 Гц ± 0,5 Гц |
| Switch-over time to battery | ≤ 10 мс |
| Type and number of outlets | 2 шт. универсальные с резервным питанием от АКБ и защитой от всплесков напряжения |
| Battery | |
| Type | Внешние |
| Voltage | 12 В |
| Maximum charge current | 10А / 20А (настраивается) |
| Runtime at full load | Зависит от подключенных внешних АКБ |
| Additionally | Защита от глубокого разряда и перезаряда АКБ; |
| General characteristics | |
| Information display | ЖК - дисплей |
| Интерфейс связи |
USB (поддержка HID) |
| Short-circuit protection | Yes |
| Overload and voltage surge protection | Yes |
| High/low voltage protection | Yes |
| Overheat protection | Yes |
| Dimensions (LxWxH) | 290х257х123 мм |
| Operating temperature range | 0 - 40 ° С |
| Relative humidity | 20 - 90% (без конденсации) |
| Noise level | ≤ 40 дБ на расстоянии 1 метр |
| Warranty | |
| UPS | 12 месяцев |
