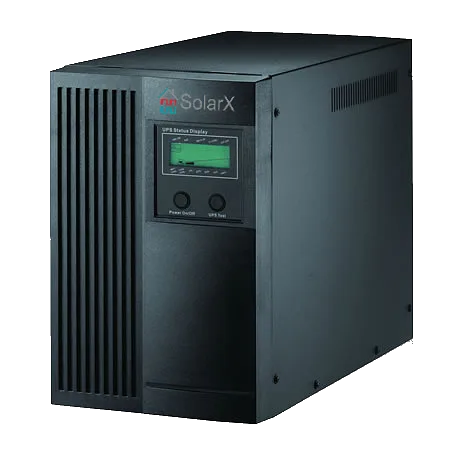

UPS SolarX SX-LBT3000
Specify the price at the manager
12 місяців
в Україні
поставка
підтримка
The SolarX SX-LBT3000 UPS with a pure sine wave output and high conversion efficiency has a low maximum operating temperature and a fairly low noise level. This UPS is an example of an affordable and versatile device. Thanks to the built-in battery, all you need to operate the UPS is to connect it to the mains and to connect your devices to the uninterruptible power supply.
Main features
Guaranteed stable and safe operation
The UPS is equipped with protection against overload, overcharge and deep battery discharge, guaranteeing safe use of both the UPS and the devices connected to it. The output ports feature noise filtering, so the uninterruptible power supply allows devices to be used even in areas with poor-quality electricity.
Simple connection
To commission the UPS, you simply need to connect it to the mains and to the power consumers. It takes less than a minute to connect the UPS.
Safe and reliable automatic protection
In the event of a critical temperature rise during improper inverter operation, voltage exceeding the set maximum or minimum values, overcharging, or deep battery discharge, automatic protection will trigger and break the UPS electrical circuit.
Unique design
Thanks to its unique design and well-thought-out styling, the UPS does not take up much space and looks quite modern. This allows it to be placed in a visible spot and installed where other UPS units simply would not fit. Also, thanks to its large number of output ports, the UPS guarantees uninterrupted power to all important devices.
Delivery «New Mail»
On average, delivery takes 1-2 days. If necessary, our managers can tell you the exact date and cost of delivery. This delivery method is suitable for people who want to quickly receive their order.
Delivery «New Mail» courier delivery
On average, delivery takes 1-2 days.
Pickup from the office
You can pick up an order from our office in the city of Kiev: st. Liteiny 7. Schedule: Mon – Fri from 9:00 to 18:00.
| Model | SX-LBT3000 |
| Placement type | Напольное (Tower) |
| Architecture type | Линейно-интерактивный |
| Input | |
| Input voltage | 230 В ± 5% |
| Диапазон напряжения без перехода на АКБ |
140 – 300 В |
| Grid frequency | 45 – 65 Гц |
| Output | |
| Apparent power | 3000 ВА |
| Output power | 2400 Вт |
| Output voltage | 230 В |
| Output frequency | 50 Гц |
| Автоматическое регулирование напряжения (AVR) |
Yes |
| Импульсная защита |
600 Дж |
| Transfer time to battery | 4 мс |
| Sine wave shape | Чистая синусоида |
| Number and type of outputs | 8 шт. х IEC 320 C13 и 1 шт. х IEC 320 C19 с батарейной поддержкой и фильтрацией шумов |
| Battery type | Встроенная герметичная, необслуживаемая, свинцово – кислотная батарея (AGM). |
| Voltage and capacity | 12 В 9 Ач |
| Battery service life | 10 лет |
| Время работы при нагрузке 50% |
≥ 7 минут |
| Charge time | 5 часов до 90% заряда |
|
Порты и разъемы | |
| USB | Опционально |
| Защита модема / телефонной линии RJ-45 |
Опционально |
| General characteristics and functions | |
| Information display | Индикаторы/ЖК-экран(опционально) |
| Звуковая индикация |
Yes |
| Cold start function | Yes |
| Short-circuit protection | Yes |
| Overload and voltage surge protection | Yes |
| Low/high voltage protection | Yes |
| Overheat protection | Yes |
| Deep discharge protection | Yes |
| Dimensions (LxWxH) | 390 х182 х 285 мм |
| Weight | 21.7 кг |
| Исполнение корпуса |
Металлический, черного цвета |
| Environment | |
| Operating temperature | -10 ~ 60 °С |
| Relative humidity at 25°C | 15 ~ 93% (без конденсации) |
| Noise level | < 40 дБ на расстоянии 1 метр |
| Warranty | |
| UPS | 24 месяца |
