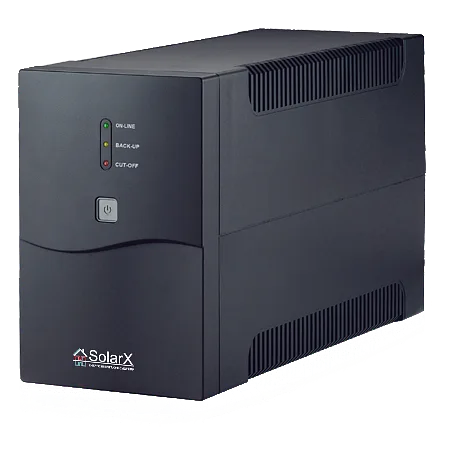

UPS SolarX SX-LBT1100
Specify the price at the manager
12 місяців
в Україні
поставка
підтримка
The SolarX SX-LBT1100 UPS with an approximated sine wave output and high conversion efficiency has a low maximum operating temperature and a fairly low noise level. This UPS is an example of an affordable and versatile device. Thanks to the built-in battery, all you need to operate the UPS is to connect it to the mains and to connect your devices to the uninterruptible power supply.
Main features
Guaranteed stable and safe operation
The UPS is equipped with protection against overload, overcharge and deep battery discharge, guaranteeing safe use of both the UPS and the devices connected to it. The output ports feature noise filtering, so the uninterruptible power supply allows devices to be used even in areas with poor-quality electricity.
Simple connection
To commission the UPS, you simply need to connect it to the mains and to the power consumers. It takes less than a minute to connect the UPS
Safe and reliable automatic protection
In the event of a critical temperature rise during improper inverter operation, voltage exceeding the set maximum or minimum values, overcharging, or deep battery discharge, automatic protection will trigger and break the UPS electrical circuit.
Unique design
Thanks to its unique design and well-thought-out styling, the UPS does not take up much space and looks quite modern. This allows it to be placed in a visible spot and installed where other UPS units simply would not fit. Also, thanks to its large number of output ports, the UPS guarantees uninterrupted power to all important devices.
Delivery «New Mail»
On average, delivery takes 1-2 days. If necessary, our managers can tell you the exact date and cost of delivery. This delivery method is suitable for people who want to quickly receive their order.
Delivery «New Mail» courier delivery
On average, delivery takes 1-2 days.
Pickup from the office
You can pick up an order from our office in the city of Kiev: st. Liteiny 7. Schedule: Mon – Fri from 9:00 to 18:00.
| Model | SX- LBT1100 |
| Placement type | Напольное (Tower) |
| Architecture type | Линейно-интерактивный |
| Input | |
| Rated input voltage | 230 В |
| Input voltage range on mains operation | 130 – 300 В |
| Input frequency | 50/60 Гц |
| Output | |
| Apparent power | 1100 ВА |
| Useful power | 660 Вт |
| Output voltage waveform | Аппроксимированная синусоида |
| Rated output voltage | 230 В |
| Output frequency | 50/60 Гц |
| Switch-over time to battery | 6 – 8 мс |
| Type and number of outlets | 4 х Schuko (CEE 7/7) с батарейной поддержкой и фильтрацией шумов |
| Импульсная защита |
273 Дж |
| Battery | |
| Type | Встроенная герметичная, необслуживаемая, свинцово - кислотная батарея (VRLA AGM) |
| Voltage | 12 В |
| Количество и емкость |
2 х 7 Ач |
| Runtime at full load | ≥ 6 минут |
| Runtime at half load | ≥ 15 минут |
| Battery charge time | До 6 часов до 90% заряда |
| General characteristics | |
| Information display | Индикаторы / ЖК – экран (опционально) |
| Short-circuit protection | Yes |
| Overload and voltage surge protection | Yes |
| High/low voltage protection | Yes |
| Overheat protection | Yes |
| Deep discharge protection | Yes |
| Защита линии передачи данных |
2 разъема RJ-11 |
| Dimensions (LxWxH) | 343х135х208 мм |
| Weight | 9,2 кг |
| Operating temperature range | 0 – 40 °С |
| Relative humidity | 0 – 95 % |
| Noise level | ≤ 40 дБ на расстоянии 1 метр |
| Warranty | |
| UPS | 24 месяца |
