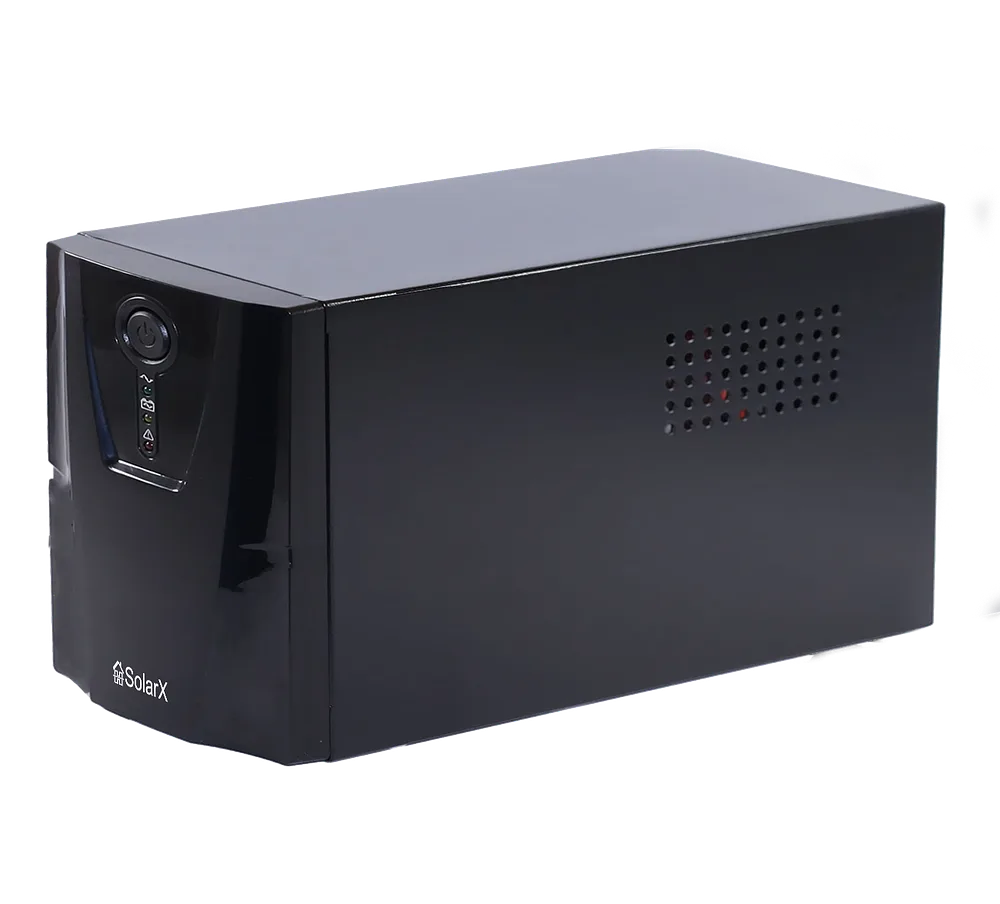

UPS SolarX SX-LBR850
Specify the price at the manager
12 місяців
в Україні
поставка
підтримка
Modern design
The SolarX series SX-LBR850 UPS units have a modern and practical design, making them suitable for both office and home use. Thanks to the built-in stabilizer, they can be used in networks with unstable voltage and poor-quality electricity.
Compact size
SolarX SX-LBR850 has a well-thought-out internal layout. Thanks to this, the UPS casing is compact and will not take up much space.
Reinforced perforation and silent operation
Due to the reinforced casing perforation, the heat-loaded parts of the UPS are effectively cooled, which reduces the load on components and extends the service life of the whole system. The increased radiator area and good heat dissipation made it possible to use a passive cooling system, making the UPS practically silent during operation.
Delivery «New Mail»
On average, delivery takes 1-2 days. If necessary, our managers can tell you the exact date and cost of delivery. This delivery method is suitable for people who want to quickly receive their order.
Delivery «New Mail» courier delivery
On average, delivery takes 1-2 days.
Pickup from the office
You can pick up an order from our office in the city of Kiev: st. Liteiny 7. Schedule: Mon – Fri from 9:00 to 18:00.
| Model | SX-LBR850 |
Мощность, полная / полезная |
850 ВА / 510 Вт |
| Input | |
| Input voltage | 161-284 В АС (настраивается) |
| Grid frequency | 50/60 Гц (рабочий диапазон 46 - 70 Гц) |
| Output | |
| Output voltage | 220 В / 230 В / 240 В (+15% -20% )В АС |
| Output frequency | 50/60 Гц ± 1% |
Общий выходной ток для всех розеток |
10 А max |
Потери тока |
0,4 мА |
| Sine wave shape | Чистая синусоида |
Количество фаз вход / выход |
1:1 |
| Output connector type | IEC C13 |
| Number of output connectors | 4 с резервным питанием от АКБ и защиты от досталась напряжения |
| Bypass | Да (автоматическое / ручное управление) |
| Battery | |
| Battery voltage | 24 В DC |
| Battery type | Необслуживаемая герметичная свинцово-кислотная батарея с защитой от утечки. |
| Battery specifications | 9AH12V |
| Battery service life | 5 лет |
| Runtime at full load | ≤ 10 минут |
Автоматическая проверка батареи |
Раз в неделю |
| Recharge time | До 4 ч. до 90% после полного разряда |
| Information display | |
| UPS control | Yes |
| Light indication | Yes |
| Audible alarm | Да (возможность отключения) |
Защиты | |
| Short-circuit protection | Yes |
| Overload and voltage surge protection | Да (соответствует стандарту IEC 61643-1) |
| Low/high voltage protection | Yes |
| Deep discharge protection | Yes |
Стандарты защиты |
IEC 60950-1, IEC 62040-1, CE certified |
| Communications | |
| USB | В комплекте |
| Serial RJ45 | В комплекте |
Телефонная защита от перенапряжения |
Tel, ISDN, ADSL, Ethernet |
| General characteristics | |
| Dimensions (LxWxH) | 282х142х220 мм |
| Weight | 4,5 кг |
Комплект монтажа в стойку 19 '' |
В комплекте |
| Automatic fuse | Yes |
| Software | Встроенное (централизованное, возможность обновления) |
| Environment | |
| Operating temperature | 0°С – 45°C |
| Storage temperature | -25°С – 55°C |
| Noise level | <50 дБ на расстоянии 1 метр |
| Relative humidity at 25°C | 0 - 95% (без конденсата) |
Рабочая высота |
0-2000 м |
| Warranty | |
| UPS | 24 месяца |
| Battery | 12 месяцев |
