UPS SolarX SX-LB850 T03
Specify the price at the manager
12 місяців
в Україні
поставка
підтримка

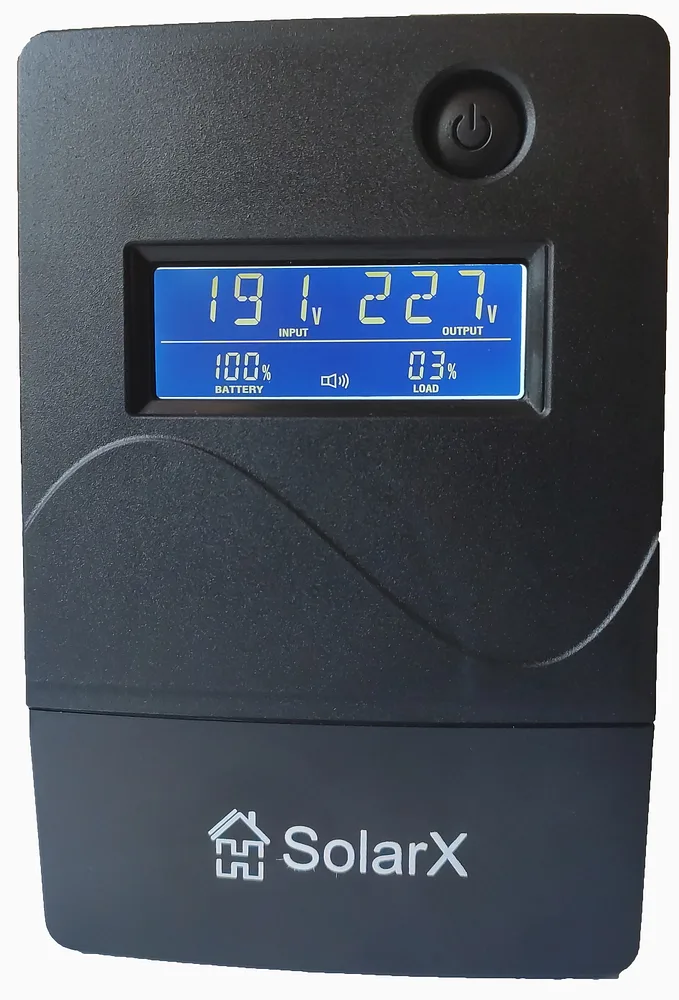

LCD дисплей
The SolarX SX-LB850 T03 has an updated LCD display with improved image clarity. During operation, it shows the frequency, input and output voltage, battery charge level and load. The UPS is also equipped with an audible alarm.
Modern design
The SolarX series SX-LB850 T03 UPS units have a modern and practical design, making them suitable for both office and home use. Thanks to the built-in stabilizer, they can be used in networks with unstable voltage and poor-quality electricity.
Compact size
SolarX SX-LB850 Т03 has a well-thought-out internal layout. Thanks to this, the UPS casing is compact and will not take up much space.
Reinforced perforation and silent operation
Due to the reinforced casing perforation, the heat-loaded parts of the UPS are effectively cooled, which reduces the load on components and extends the service life of the whole system. The increased radiator area and good heat dissipation made it possible to use a passive cooling system, making the UPS practically silent during operation.
Universal outlets
To reduce the number of adapters needed and increase ease of use, universal-type outlets are used as UPS outputs. They allow connecting devices with plugs of more than 12 standards to SX-LB850 T03 and are compatible with Schuko.
Delivery «New Mail»
On average, delivery takes 1-2 days. If necessary, our managers can tell you the exact date and cost of delivery. This delivery method is suitable for people who want to quickly receive their order.
Delivery «New Mail» courier delivery
On average, delivery takes 1-2 days.
Pickup from the office
You can pick up an order from our office in the city of Kiev: st. Liteiny 7. Schedule: Mon – Fri from 9:00 to 18:00.
| Placement type | Напольное (Tower) |
| Architecture type | Линейно-интерактивный |
| Input | |
| Input voltage range |
170В~280В |
| Input frequency | 50/60 Гц |
| Input frequency range | 45-65 Гц |
| Output | |
| Apparent power | 850 ВА |
| Useful power | 480 Вт |
| Output voltage waveform | Чиста синусоида |
| Rated output voltage | 220 В ± 10% |
| Output frequency | 50/60 Гц ± 10% |
| Switch-over time to battery | ≤ 4-8 мс |
| Type and number of outlets | 2 шт. Schuko |
| Battery | |
| Type | Встроенная герметичная свинцово-кислотная батарея с загущенным электролитом, защита от утечек (VRLA AGM) |
| Voltage | 12 В |
| Количество и емкость |
1 шт. х 9 Ач 12В |
| Срок службы батареи |
До 5 лет |
| Runtime at full load | ≥ 5 мин. |
| Runtime at half load | ≥ 15 мин. |
| Battery charge time | До 6 часов до 90% заряда |
| Additionally | Защита от глубокого разряда и перезаряда АКБ; |
| General characteristics | |
| Information display | ЖК - дисплей |
| Short-circuit protection | Yes |
| USB | Да , опционально |
| High/low voltage protection | Yes |
| Overheat protection | Yes |
| Dimensions (LxWxH) | 280х90х140 мм |
| Weight | 4,1 кг |
| Operating temperature range | 0 - 40 ° С |
| Relative humidity | 0 - 95% |
| Noise level | ≤ 40 дБ на расстоянии 1 метр |
| Warranty | |
| UPS | 24 месяцев |
