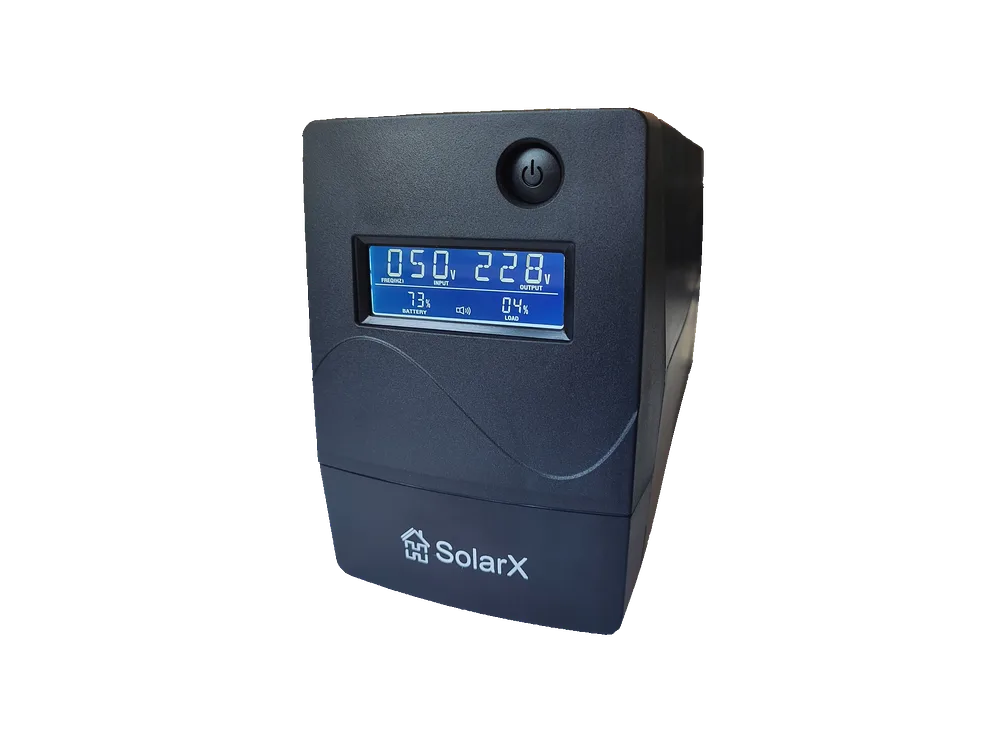

UPS SolarX SX-LB650T03
Specify the price at the manager
12 місяців
в Україні
поставка
підтримка
Modern design
The SolarX series SX-LB650Т03 UPS units have a modern and practical design, making them suitable for both office and home use. Thanks to the built-in stabilizer, they can be used in networks with unstable voltage and poor-quality electricity.
Compact size
SolarX SX-LB650Т03 has a well-thought-out internal layout. Thanks to this, the UPS casing is compact and will not take up much space.
Reinforced perforation and silent operation
Due to the reinforced casing perforation, the heat-loaded parts of the UPS are effectively cooled, which reduces the load on components and extends the service life of the whole system. The increased radiator area and good heat dissipation made it possible to use a passive cooling system, making the UPS practically silent during operation.
Universal outlets
To reduce the number of adapters needed and increase ease of use, universal-type outlets are used as UPS outputs. They allow connecting devices with plugs of more than 12 standards to SX-LB650Т03 and are compatible with Schuko.
LCD дисплей
The SolarX SX-LB650Т03 has an updated LCD display with improved image clarity. During operation, it shows the frequency, input and output voltage, battery charge level and load. The UPS is also equipped with an audible alarm.
Delivery «New Mail»
On average, delivery takes 1-2 days. If necessary, our managers can tell you the exact date and cost of delivery. This delivery method is suitable for people who want to quickly receive their order.
Delivery «New Mail» courier delivery
On average, delivery takes 1-2 days.
Pickup from the office
You can pick up an order from our office in the city of Kiev: st. Liteiny 7. Schedule: Mon – Fri from 9:00 to 18:00.
| Model | SX-LB650T03 |
| Placement type | Напольное (Tower) |
| Architecture type | Линейно-интерактивный (Line-interactive) |
| Input | |
| Input voltage range on mains operation | 180 - 270 В |
| Input frequency | 50-60 Гц |
| Input voltage | 220 В / 230 В (авторегулирования напряжения) |
Количество фаз вход / выход |
1/1 |
Тип розеток |
Schuko CEE 7 / 7P |
| Output | |
| Apparent power | 650 ВА |
| Useful power | 325 Вт |
| Output voltage waveform | аппроксимирована синусоида |
| Rated output voltage | 220 В / 230 В |
| Output frequency | 50-60 Гц |
Время переключения на АКБ (типичный / макс.) |
4 мс / 6 мс |
Максимальный КПД |
97% |
Импульсный защиту |
160 Дж |
| Type and number of outlets | 2 шт. Schuko CEE 7 с резервным питанием от АКБ и защитой от всплесков напряжения |
| Bypass | отсутствует |
Акб | |
| Type | Встроенная герметичная свинцово-кислотная батарея |
| Voltage | 12 В |
Количество и емкость |
1 шт. х 7 Ач 12В |
Срок службы батареи |
10 лет |
| Runtime at full load | ≥ 8 мин. |
| Runtime at half load | ≥ 20 мин. |
Максимальный ток |
5 А |
| Battery charge time | До 4 часов |
| Additionally | Защита от глубокого разряда и перезаряда АКБ |
| General characteristics | |
| Information display | ЖК-дисплей (LCD) |
Отображение состояния работы ИБП |
Да (ЖК-дисплей) |
| Cold start function | Yes |
Предохранитель |
Так, плавкий |
| Short-circuit protection | Yes |
| Overload and voltage surge protection | Yes |
| High/low voltage protection | Yes |
| Overheat protection | Yes |
Фильтрация помех |
Yes |
| Audible alarm | Yes |
Размеры (дхшхв) |
280х85х140 мм |
| Weight | 4,1 кг |
| Operating temperature range | 0 - 40 ° С |
| Relative humidity | 0 - 95% |
| Noise level | ≤ 40 дБ на расстоянии 1 метр |
| Warranty | |
Ибп |
24 месяца |
