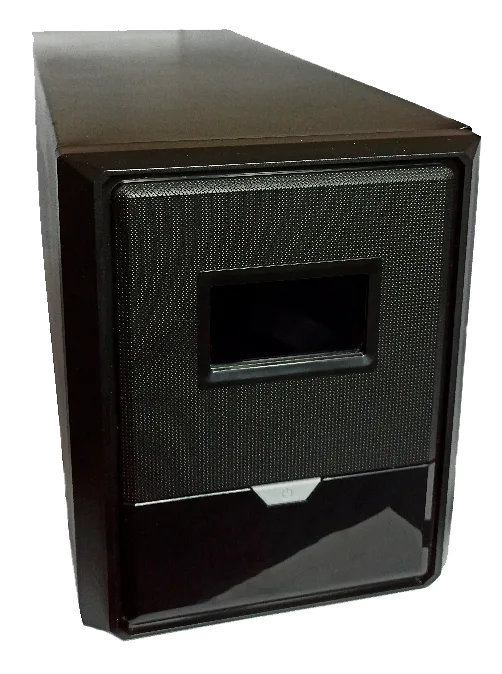

UPS SolarX SX-LBT650 S4
Specify the price at the manager
12 місяців
в Україні
поставка
підтримка
Modern design
The SolarX series SX-LBT650 S4 UPS units have a modern and practical design, making them suitable for both office and home use. Thanks to the built-in stabilizer, they can be used in networks with unstable voltage and poor-quality electricity.
Compact size
SolarX SX-LBT650 S4 has a well-thought-out internal layout. Thanks to this, the UPS casing is compact and will not take up much space.
Reinforced perforation and silent operation
Due to the reinforced casing perforation, the heat-loaded parts of the UPS are effectively cooled, which reduces the load on components and extends the service life of the whole system. The increased radiator area and good heat dissipation made it possible to use a passive cooling system, making the UPS practically silent during operation.
Universal outlets
To reduce the number of adapters needed and increase ease of use, universal-type outlets are used as UPS outputs. They allow connecting devices with plugs of more than 12 standards to SX-LBT650 S4 and are compatible with Schuko.
LCD дисплей
The SolarX SX-LBT650 S4 has an updated LCD display with improved image clarity. During operation, it shows the frequency, input and output voltage, battery charge level and load. The UPS is also equipped with an audible alarm.
Delivery «New Mail»
On average, delivery takes 1-2 days. If necessary, our managers can tell you the exact date and cost of delivery. This delivery method is suitable for people who want to quickly receive their order.
Delivery «New Mail» courier delivery
On average, delivery takes 1-2 days.
Pickup from the office
You can pick up an order from our office in the city of Kiev: st. Liteiny 7. Schedule: Mon – Fri from 9:00 to 18:00.
| Model | SX-LBT650 S4 |
|
| UPS type | Линейно-интерактивный (Line-Interactive) |
|
| Design type | Напольное (Tower) |
|
| Power | ||
Выходная мощность, полная / полезная |
650 ВА / 390 Вт |
|
| Power factor | 0.6 |
|
| Input | ||
| Input voltage | 230 В АС |
|
| Input voltage range on mains operation | 140 – 300 В AC |
|
| Grid frequency | 45-65 Гц |
|
| Output | ||
| Output voltage | 230 АС |
|
| Output frequency | 47-63 Гц |
|
| Output voltage waveform | ступенчатая аппроксимация синусоиды |
|
Время переключения на АКБ (станд. / Макс.) |
5 мс / 8 мс |
|
| Crest factor | 3: 1 |
|
Тип и количество выходных разъемов |
3 х Schuko CEE 7 (батарейное резервное питание) и 1 х Schuko CEE 7 (защита от всплесков напряжения) |
|
| Battery | ||
| Battery type | Необслуживаемая герметичная свинцово-кислотная батарея с загущенным электролитом и защитой от утечек |
|
| Battery specifications | 7,2 Ач 12В |
|
| Battery service life | 3 - 5 лет |
|
| Runtime at full load | ⩾ 5 минут |
|
Время работы при нагрузке 50%: |
⩾ 11 минут |
|
вВемя перезарядки |
около 5 часов до 90% после полного разряда |
|
| Information display | ||
| Control panel | Светодиодный дисплей с индикацией режимов работы (напряжение, частота, работа от сети / батарей, степень заряда батареи, нагрузки) |
|
Звуковой сигнал |
||
Переход в режим работы от аккумуляторов |
Звуковой сигнал один раз в десять секунд |
|
Исчерпания заряда батарей |
При работе от АКБ и низком заряде четыре коротких сигнала каждую секунду |
|
Сигнал перегрузки |
Непрерывное звучание сигнала |
|
| Protection | ||
| Overload protection | Yes | |
| Short-circuit protection | Yes | |
| Reverse polarity protection | Yes | |
Защита от всплесков напряжения |
286 Дж |
|
| Overheat protection | Yes | |
коммуникации | ||
| USB | В комплекте |
|
общие характеристики | ||
| Dimensions (LxWxH) | 347х122х160 мм |
|
| Weight | 5,7 кг |
|
Длина кабеля |
1,5 м |
|
Наличие холодного старта |
Yes | |
| Voltage stabilizer (AVR) | Yes | |
| Software | встроенное |
|
| Environment | ||
| Operating temperature | 0 ° С - 45 ° C |
|
| Noise level | <50 дБ на расстоянии 1 метр |
|
| Relative humidity at 25°C | 20 - 95% (без конденсата) |
|
| Warranty | ||
| UPS | 24 месяца |
|
| Battery | 12 месяцев |
|
