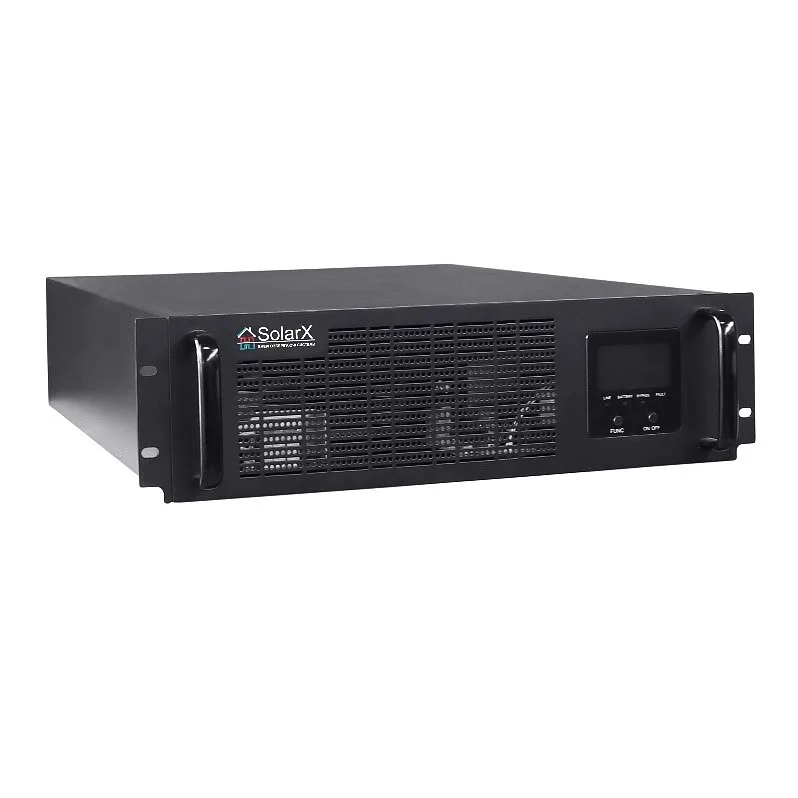

UPS SolarX SX-LB1500R01
Specify the price at the manager
12 місяців
в Україні
поставка
підтримка
UPS SolarX SX-LB1500R01 with a output pure sine wave and high conversion efficiency has a low maximum heating temperature during operation and a fairly low noise level. This UPS is an example of an affordable and versatile device. Thanks to the built-in battery, all you need to do to operate the UPS is connect it to the mains and connect your devices to the uninterruptible power supply.
Main features
Guaranteed stable and safe operation
The UPS is equipped with protection against overload, overcharge and deep discharge of the battery, which guarantees safe use of both the UPS and the devices connected to it. The output ports are equipped with a noise filtering function, so the uninterruptible power supply can be used even in places with poor-quality electricity.
Simple connection
To put the UPS into operation, it is enough to simply connect it to the mains and the consumers of electricity. This is so simple that connecting the UPS takes less than a minute. The UPS is connected to the computer via USB and RS232 interfaces.
Safe and reliable automatic protection
In case of critical temperature rise during improper operation of the inverter, voltage exceeding the set maximum and minimum values, overcharge, or deep battery discharge, automatic protection is triggered, which opens the UPS electrical circuit.
Voltage stabilization
SolarX UPS units come with a built-in voltage stabilizer. This provides automatic voltage regulation, i.e. automatically raising low voltage and lowering high voltage to a level suitable for correct equipment operation within the permissible input voltage range, without switching to battery power. This protects boiler, network and medical equipment and many other technical devices for private and administrative use from failures and interruptions, as well as ensuring data integrity.
Delivery «New Mail»
On average, delivery takes 1-2 days. If necessary, our managers can tell you the exact date and cost of delivery. This delivery method is suitable for people who want to quickly receive their order.
Delivery «New Mail» courier delivery
On average, delivery takes 1-2 days.
Pickup from the office
You can pick up an order from our office in the city of Kiev: st. Liteiny 7. Schedule: Mon – Fri from 9:00 to 18:00.
| Model | SX-LB 1500R01 |
| Placement type | Установка в 19 "коммутационную шкаф (rack mount) |
| Architecture type | Линейно-интерактивный (line-interactive), однофазные источник бесперебойного питания |
| Rated power | 1500В |
Эффективная исходное мощность |
1000 Вт |
| Input | |
| Rated input voltage | 220/230 В / 240 В |
| Input voltage range | 150-305 В |
| Input frequency | 50/60 Гц +/- 3 Гц (автоматическое определение) |
| Number of phases, input/output | 1/1 |
| Output | |
Входящий напряжение |
220/230 в / 240 в (конфигурируемый) |
Входящий частота |
50/60 гц +/- 3 гц синхронизирована с электросетью |
Искажение формы исходное сигнала |
менее 5% |
| Efficiency coefficient | 90% |
Transfer time to battery: типов / максимальный |
2 мс / 4 мс |
Количество и тип выходе |
6 ШТ. Х IEC 320-C13 |
Форма синусоиди |
Чистая синусоида |
| Battery | |
| Battery type | Герметичные, свинцово-кислотные, необслуживаемые (VRLA AGM). Срок службы 5 лет |
| Battery placement | Встроенные |
| Voltage and capacity | 12 в 9Аг х 4 шт. |
Время работы от батареи при 100% нагрузке |
≥ 8 мин. |
Время работы от батареи при 50% нагрузке |
≥ 15 мин |
| Battery recharge time | До 4 часов |
| Alarm | |
Низкая заряд АКБ |
При работе от акб и низком заряде четыре коротких сигнала каждую секунду и заряд акб |
| Overload | Гудок. Непрерывное звучание сигнала и уровень нагрузки на ибп |
Ошибка или индикация замене батареи |
Непрерывное звучание сигнала и символ на экране |
| UPS control | |
| Control panel | ЖК дисплей с индикаторами on line (работы от сети): on battery (работы от батарей): replace battery (необходимости замены батареи) и overload (перегрузка), многофункциональная консоль контроля и управления с жк-индикатором |
| Software | Да (для мониторинга состояния ИБП) |
| Communication ports | RS-232, RJ-45 10/100 BASE-T, RJ-45 SERIAL, SMARTSLOT, USB |
| General characteristics and functions | |
Стабилизатор напряжения (avr) |
Yes |
| Cold start function | Yes |
| Short-circuit protection | Yes |
| Overload protection | Yes |
Защита от прыжка напряжения |
Yes |
| Overheat protection | Yes |
Защита от глубокого разряда акб |
Yes |
Размеры ибп (дхшхв) |
630×438×88(2u) |
| Weight | 30 кг |
| Environment | |
| Operating temperature | 0 ~ 40 ° с |
Относительная влажность, при 25 ° с |
0 ~ 95% (без образования конденсата) |
| Acoustic noise level | <45 дб на расстоянии 1 метр |
| Storage temperature | -15 ~ 45 ° с |
| Warranty | |
Гарантия на ИБП и компоненты |
24 месяца |
Гарантия на АКБ |
12 месяцев |
