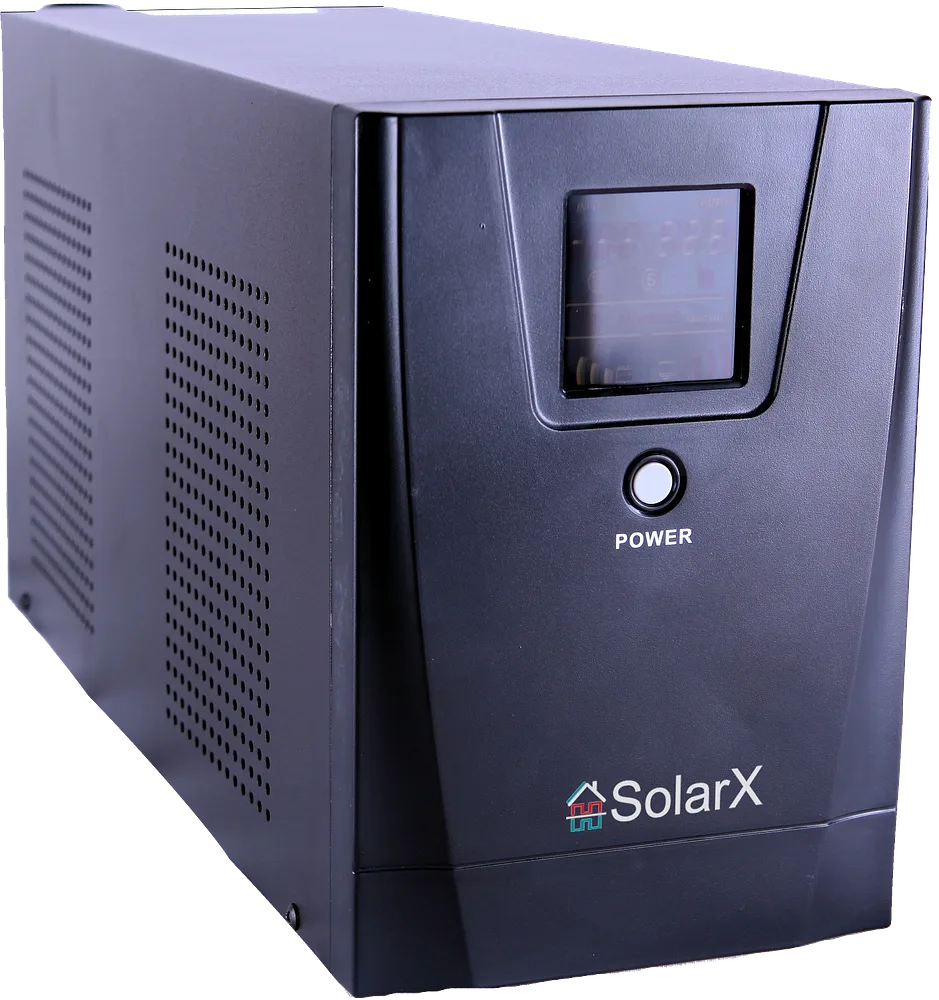

UPS SolarX SX-LB1000T01
Specify the price at the manager
12 місяців
в Україні
поставка
підтримка
UPS SolarX SX-LB1000T01 with a output pure sine wave and high conversion efficiency has a low maximum heating temperature during operation and a fairly low noise level. This UPS is an example of an affordable and versatile device. Thanks to the built-in battery, all you need to do to operate the UPS is connect it to the mains and connect your devices to the uninterruptible power supply.
Main features
Guaranteed stable and safe operation
The UPS is equipped with protection against overload, overcharge and deep discharge of the battery, which guarantees safe use of both the UPS and the devices connected to it. The output ports are equipped with a noise filtering function, so the uninterruptible power supply can be used even in places with poor-quality electricity.
Simple connection
To put the UPS into operation, it is enough to simply connect it to the mains and the consumers of electricity. This is so simple that connecting the UPS takes less than a minute. The UPS is connected to the computer via USB and RS232 interfaces.
Safe and reliable automatic protection
In case of critical temperature rise during improper operation of the inverter, voltage exceeding the set maximum and minimum values, overcharge, or deep battery discharge, automatic protection is triggered, which opens the UPS electrical circuit.
Voltage stabilization
SolarX UPS units come with a built-in voltage stabilizer. This provides automatic voltage regulation, i.e. automatically raising low voltage and lowering high voltage to a level suitable for correct equipment operation within the permissible input voltage range, without switching to battery power. This protects boiler, network and medical equipment and many other technical devices for private and administrative use from failures and interruptions, as well as ensuring data integrity.
Delivery «New Mail»
On average, delivery takes 1-2 days. If necessary, our managers can tell you the exact date and cost of delivery. This delivery method is suitable for people who want to quickly receive their order.
Delivery «New Mail» courier delivery
On average, delivery takes 1-2 days.
Pickup from the office
You can pick up an order from our office in the city of Kiev: st. Liteiny 7. Schedule: Mon – Fri from 9:00 to 18:00.
| Model | SX-LB 1000T01 |
| Placement type | Підлогове (Tower) |
| Architecture type | Лінійно-інтерактивний (line-interactive), однофазне джерело безперебійного живлення |
| Rated power | 1000ВА |
| Effective output power | 600 Вт |
| Input | |
| Rated input voltage | 230В |
| Input voltage | 220В/230 В/240В |
| Input voltage range | 170-300 В |
| Input frequency | 50/60 Гц +/- 3 Гц (автоматичне визначення) |
Тип вхідного з’єднання |
IEC 320-C14 |
| Number of phases, input/output | 1/1 |
| Output | |
| Rated output voltage | 230В |
| Output voltage | 220В/230 В/240В (конфігурується) |
| Output frequency | 50/60 Гц +/- 3 Гц синхронізована з електромережею |
Спотворення форми вихідного сигналу |
Менше 5% |
Transfer time to battery: типовий/максимальний |
2 мс /4 мс |
| Number and type of outputs | 8 шт. х IEC 320-C13 |
| Sine wave shape | Чиста синусоїда |
| Battery | |
| Battery type | Герметичні, свинцево-кислотні , необслуговувані (VRLA AGM). Термін служби 5 років |
| Battery placement | Вбудовані |
Напруга та ємність |
12 В 9Аг х 2 шт. |
Час роботи від батареї при 100% навантаженні |
≥ 7 хв. |
Час роботи від батареї при 50% навантаженні |
≥ 18 хв |
| Battery recharge time | До 3 годин |
| Alarm | |
| Low battery | При роботі від АКБ і низькому заряді чотири короткі сигнали кожну секунду та заряд АКБ |
| Overload | Гудок. Безперервне звучання сигналу та рівень навантаження на ДБЖ |
| Battery replacement error/indication | Безперервне звучання сигналу та символ на екрані |
| UPS control | |
| Control panel | Багатофункціональна консоль контролю і управління з жк-індикатором |
| Software | Так (для моніторингу стану джерела безперебійного живлення) |
| Communication ports | RS-232, USB |
| General characteristics and functions | |
| Voltage stabilizer (AVR) | Yes |
| Cold start function | Yes |
Фільтрація |
Повнополюсна багатополюсна фільтрація шуму: 0,3% пропускна спроможність IEEE: нульовий час відгуку затискача |
| Short-circuit protection | Yes |
| Overload protection | Yes |
Захист відстрибків напруги |
Yes |
| Overheat protection | Yes |
