- Battery SolarX SXMG 18-12

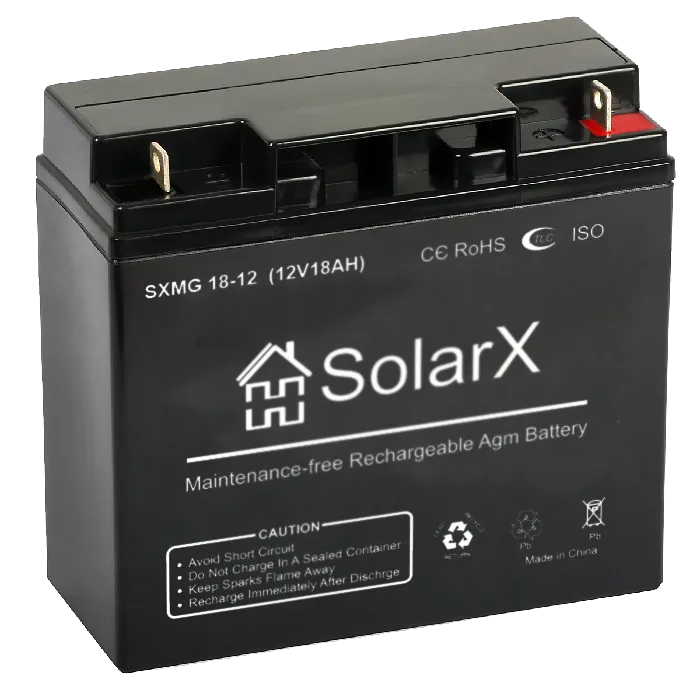

Battery SolarX SXMG 18-12
Specify the price at the manager
12 місяців
в Україні
поставка
підтримка
Области применения:
- telecommunications
- electronic equipment
- security alarm systems
- emergency lighting systems
- IT industry
- medicine
- wide use of uninterruptible power supply systems in alternative energy.
Main advantages:
- Long service life (for high-capacity SXA-SXG series) of 12-15 years in float mode.
- Only virgin raw materials are used in production.
- Technical quality control at every stage, from production to shipment to the customer (completely eliminates the risk of defective products).
- No harmful impact on the environment or human life.
- The heat-resistant material of the sealed casing ensures maximum safety when using SolarX batteries.
- A wider operating temperature range and support for higher discharge current expand the range of applications.
- The high-density gel electrolyte improves battery efficiency, significantly extending the service life of SolarX batteries and making their use safer. If the casing is damaged, the electrolyte will not leak, so it will not harm the environment.
Delivery «New Mail»
On average, delivery takes 1-2 days. If necessary, our managers can tell you the exact date and cost of delivery. This delivery method is suitable for people who want to quickly receive their order.
Delivery «New Mail» courier delivery
On average, delivery takes 1-2 days.
Pickup from the office
You can pick up an order from our office in the city of Kiev: st. Liteiny 7. Schedule: Mon – Fri from 9:00 to 18:00.
| Type | Аккумуляторная батарея свинцово-кислотная, |
||
| Number of cells | 6 |
||
| Rated voltage | 12 В |
||
Буферный режим (при 25°C) |
13,6-13,8 В |
||
Циклический режим (при 25°C) |
14,4-15,0 В |
||
| Capacity | 20 ч. (1.75 В/ел) |
18 Ач |
|
| 5 hr (1.75 V/cell) | 16,4 Ач |
||
| 1 hr (1.6 V/cell) | 11,1 Ач |
||
| Dimensions | Глубина |
180 мм ± 1 |
|
| Height | 75 мм ± 1 |
||
| Width | 165 мм ± 1 |
||
Ширина с клеммами |
165 мм ± 1 |
||
| Weight | 5,6 ± 3% |
||
| Terminal type | болтовое соединение(Т3/Т8) |
||
| Internal resistance (at full charge) | ≤12mΩ |
||
| Self-discharge | 6 месяцев |
82% |
|
| 9 months | 73% |
||
| 12 months | 64% |
||
| Rated operating temperature | 25 ± 3 °С |
||
| Operating temperature range | Разряд |
От -20°С до 60°С |
|
| Charge | От -20°С до 60°С |
||
| Storage | От -20°С до 60°С |
||
| Maximum charge current | 5,4 А |
||
| Terminal material | Медь |
||
| Housing material | ABS (UL94-HB) / Огнеупорный ABS (UL94-V0) |
||
| Maximum discharge current | 270 А |
||
| Service life | 10 лет |
||
