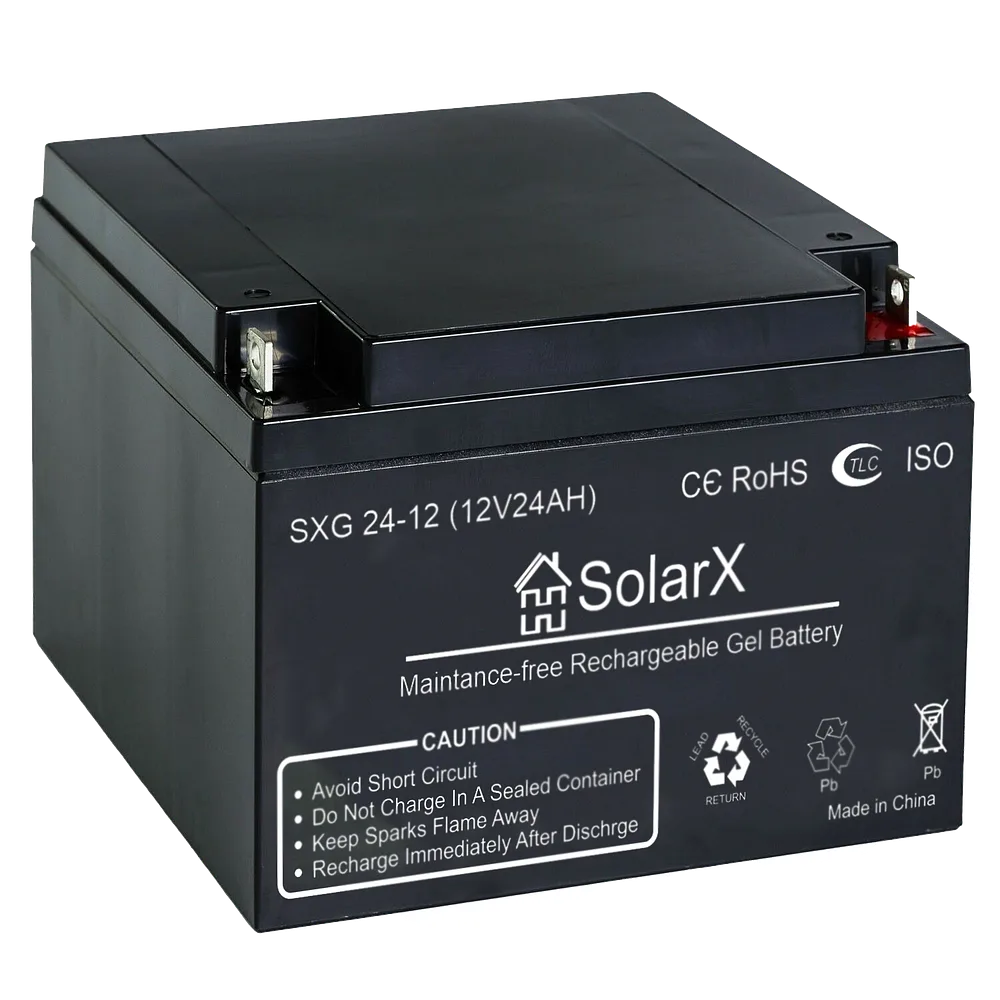

Battery SolarX SXG 24-12
Specify the price at the manager
12 місяців
в Україні
поставка
підтримка
Application area of SolarX batteries.
Designed for accumulating, storing and transmitting electrical energy in the following fields:
- telecommunications
- electronic equipment
- security alarm systems
- emergency lighting systems
- IT industry
- medicine
- wide use of uninterruptible power supply systems in alternative energy.
Main advantages:
- Long service life (for high-capacity SXA-SXG series) of 12-15 years in float mode.
- Only virgin raw materials are used in production.
- Technical quality control at every stage, from production to shipment to the customer (completely eliminates the risk of defective products).
- No harmful impact on the environment or human life.
- The heat-resistant material of the sealed casing ensures maximum safety when using SolarX batteries.
- A wider operating temperature range and support for higher discharge current expand the range of applications.
- The high-density gel electrolyte improves battery efficiency, significantly extending the service life of SolarX batteries and making their use safer. If the casing is damaged, the electrolyte will not leak, so it will not harm the environment.
Delivery «New Mail»
On average, delivery takes 1-2 days. If necessary, our managers can tell you the exact date and cost of delivery. This delivery method is suitable for people who want to quickly receive their order.
Delivery «New Mail» courier delivery
On average, delivery takes 1-2 days.
Pickup from the office
You can pick up an order from our office in the city of Kiev: st. Liteiny 7. Schedule: Mon – Fri from 9:00 to 18:00.
| Type | Аккумуляторная батарея свинцово-кислотные, |
||
| Application | для источников бесперебойного питания |
||
| Number of cells | 6 |
||
| Rated voltage | 12 В |
||
| Float charge at 25°C | 13,5-13,8 B |
||
Циклический заряд25℃ |
14,5 - 14,9 B |
||
Номинальная емкость |
При С20 (1.75 В/ел) |
24 Ач |
|
При С5 (1.75 В/ел) |
22,2 Ач |
||
| At C1 (1.6 V/cell) | 15,3 Ач |
||
| Dimensions | Длина |
166 мм ±2 |
|
| Width | 175 мм ±2 |
||
| Height | 125 мм ±2 |
||
| Total height | 125 мм ±2 |
||
| Weight | 9,7 кг |
||
| Terminal type | Bolt-nut M5/12 (Т3) /Bolt M5 (Т8) |
||
| Internal resistance | ≤ 16 mΩ |
||
| Maximum discharge current | 390 А |
||
| Operating temperature range | от -20°С до +60°С |
||
| Rated operating temperature | 25 ± 3 °С |
||
| Self-discharge | 6 месяцев |
85% |
|
| 9 months | 78% |
||
| 12 months | 70% |
||
| Maximum charge current | 7,8 A |
||
| Housing material | ABS (UL94-HB) / Огнестойкий ABS (UL94-V0) |
||
| Service life in float mode | 10 лет |
||
* Производитель оставляет за собой право вносить изменения в характеристики изделия без дополнительного уведомления
