Battery SolarX SXG 130-12
Specify the price at the manager
12 місяців
в Україні
поставка
підтримка

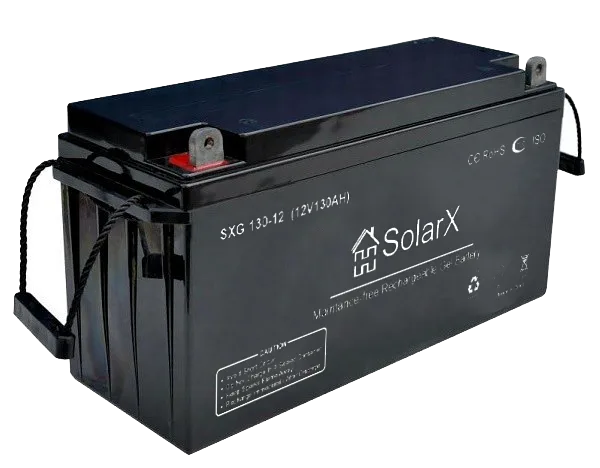

Gel battery SolarX SXG130-12 (12V 130Ah)
Battery using gel electrolyte (GEL)
Application area of SolarX batteries.
Designed for accumulating, storing and transmitting electrical energy in the following fields:
- communication equipment, telecommunications
- electronic equipment
- security alarm systems
- emergency lighting systems
- IT industry
- medicine
- wide use of uninterruptible power supply systems in alternative energy.
Main advantages:
- Long service life (for high-capacity SXA-SXG series (100-200 Ah)) of 12-15 years in float mode.
- Only virgin raw materials are used in production.
- Technical quality control at every stage, from production to shipment to the customer (completely eliminates the risk of defective products).
- No harmful impact on the environment or human life.
- The heat-resistant material of the sealed casing ensures maximum safety when using SolarX batteries.
- A wider operating temperature range and support for higher discharge current expand the range of applications.
- The high-density gel electrolyte improves battery efficiency, significantly extending the service life of SolarX batteries and making their use safer. If the casing is damaged, the electrolyte will not leak, so it will not harm the environment.
- Number of working cycles - from 500 to 1900. Service life depends on the battery discharge level
Delivery «New Mail»
On average, delivery takes 1-2 days. If necessary, our managers can tell you the exact date and cost of delivery. This delivery method is suitable for people who want to quickly receive their order.
Delivery «New Mail» courier delivery
On average, delivery takes 1-2 days.
Pickup from the office
You can pick up an order from our office in the city of Kiev: st. Liteiny 7. Schedule: Mon – Fri from 9:00 to 18:00.
| Type | Аккумуляторная батарея свинцово-кислотная, |
||
| Number of cells | 6 |
||
| Rated voltage | 12 В |
||
| Float mode | 13,5-13,8 |
||
| Cyclic mode | 14,4-15.0 |
||
| Capacity (at 20°C) | С20 (1.75 В/ел) |
130 Ач |
|
| C10 (1.75 V/cell) | 122 Ач |
||
| C1 (1.6 V/cell) | 108 Ач |
||
| Dimensions | Длина |
410 мм ± 1 |
|
| Width | 176 мм ± 1 |
||
| Height | 222 мм ± 1 |
||
| Total height | 222 мм ±1 |
||
| Weight | 39,5±3% |
||
| Terminal type | T11(под болт М8)/Т14 (Под болт и гайку М8) |
||
| Internal resistance | ≤ 2,5mΩ |
||
| Self-discharge | 6 месяцев |
88% |
|
| 9 months | 82% |
||
| 12 months | 76% |
||
| Rated operating temperature | 25 ± 3 °C |
||
| Operating temperature range | Разряд |
от -20°C до 60°C |
|
| Charge | от -20°C до 60°C |
||
| Storage | от -20°C до 60°C |
||
| Maximum charge current | 40 A |
||
| Terminal material | Медь |
||
| Housing material | ABS (UL94-HB) / Огнестойкий ABS (UL94-V0) |
||
| Maximum discharge current | 1100 A |
||
| Service life | 15 лет |
||
