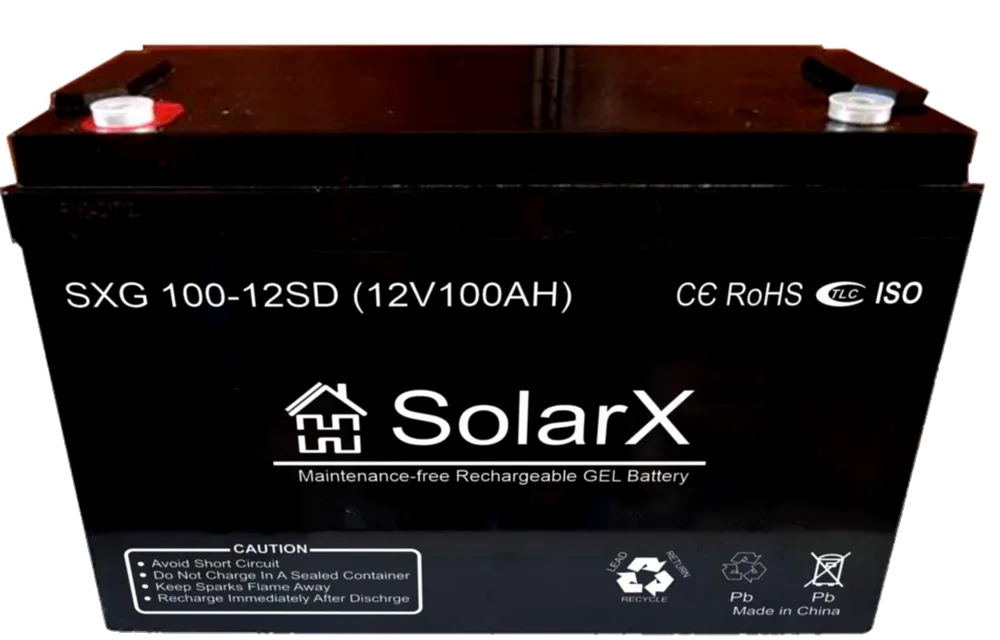

Battery SolarX SXG 100-12SD
Specify the price at the manager
Гарантія
12 місяців
12 місяців
Сервіс
в Україні
в Україні
Швидка
поставка
поставка
Технічна
підтримка
підтримка
Application area of SolarX batteries.
Designed for accumulating, storing and transferring electrical energy, and supplying the load during external power supply interruptions in such fields as:
- communication equipment, telecommunications
- electronic equipment
- security alarm systems
- emergency lighting systems
- IT industry
- medicine
- widespread use of uninterruptible power supply systems in alternative energy, connection in parallel with a rectifier and a load.
Main advantages:
- Long service life (for the SXA-SXG series of large capacity (100-200 Ah)) 12-15 years in float mode, 500 full charge-discharge cycles at 100% discharge.
- Only virgin raw materials are used in production.
- Technical quality control at every stage, from production to shipment to the customer (completely eliminates the risk of defective products).
- No harmful impact on the environment or human life.
- The heat-resistant material of the sealed casing ensures maximum safety when using SolarX batteries.
- A wider operating temperature range and support for higher discharge current expand the range of applications.
Delivery «New Mail»
On average, delivery takes 1-2 days. If necessary, our managers can tell you the exact date and cost of delivery. This delivery method is suitable for people who want to quickly receive their order.
Delivery «New Mail» courier delivery
On average, delivery takes 1-2 days.
Pickup from the office
You can pick up an order from our office in the city of Kiev: st. Liteiny 7. Schedule: Mon – Fri from 9:00 to 18:00.
| Type | Аккумуляторная батарея свинцово-кислотная, герметичная, необслуживаемая (VRLA GEL) |
||
| Number of cells | 6 |
||
| Rated voltage | 12 В |
||
| Float charge (at 25°C) | 13,6 - 13,8 B |
||
| Cyclic charge (at 25°C) | 14,5 - 14,9 B |
||
| Capacity (at 20°C) | 20 ч. (1.75 В / эл) |
100 Ач |
|
| 5 hr (1.75 V/cell) | 78 Ач |
||
| 1 hr (1.6 V/cell) | 58,2 Ач |
||
| Dimensions | Длина |
328 мм ± 2 мм |
|
| Width | 169 мм ± 2 мм |
||
| Height | 210 мм ± 2 мм |
||
| Total height | 210 мм ± 2 мм |
||
| Weight | 30 кг ± 3% |
||
| Terminal type | T9 |
||
| Internal resistance (at full charge) | ≤ 7,5mΩ |
||
| Self-discharge | 6 месяцев |
85% |
|
| 9 months | 78% |
||
| 12 месяца |
70% |
||
| Rated operating temperature | 25 ° C ± 3 ° C |
||
| Operating temperature range | Разряд |
от -20 ° C до 60 ° C |
|
| Charge | от -20 ° C до 60 ° C |
||
| Storage | от -20 ° C до 60 ° C |
||
| Maximum charge current | 20 A |
||
| Terminal material | Медь |
||
| Housing material | ABS (UL94-HB) / Огнестойкий ABS (UL94-V0) |
||
| Максимальный ток разряда (5 сек.) |
800 A |
||
| Service life in float mode | 15 лет |
||
