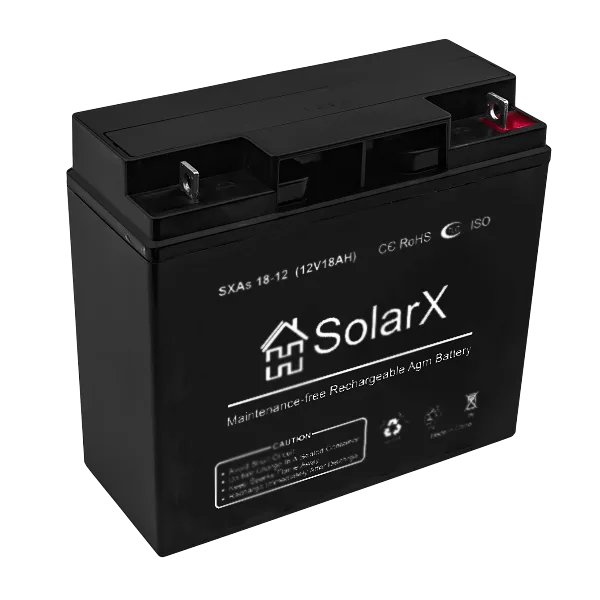

Battery SolarX SXAs 18-12 12V 18Ah

Battery SolarX SXAs 18-12 (12V 18Ah) is made using AGM technology.

Application area of SolarX batteries.

Designed for accumulating, storing and transmitting electrical energy in the following fields:

communication equipment, telecommunications
electronic equipment
security alarm systems
emergency lighting systems
IT industry
medicine
wide use of uninterruptible power supply systems in alternative energy.

Main advantages:

Long service life (SXA-SXG большой емкости (100-200 А/ч) of 12-15 years in float mode.
Only virgin raw materials are used in production.
Technical quality control at every stage, from production to shipment to the customer (completely eliminates the risk of defective products).
No harmful impact on the environment or human life.
The heat-resistant material of the sealed casing ensures maximum safety when using SolarX batteries.
A wider operating temperature range and support for higher discharge current expand the range of applications.
The terminal lugs feature high conductivity and maximum resistance to twisting
One-way valves release excess gas pressure and prevent oxygen ingress

Standards:

1. IEC 60896 parts 21-22

2. EUROBAT - «STANDARD COMMERCIAL»

Production is certified in accordance with ISO 9001, 14001, 45001 standards

Delivery «New Mail»

On average, delivery takes 1-2 days. If necessary, our managers can tell you the exact date and cost of delivery. This delivery method is suitable for people who want to quickly receive their order.

Delivery «New Mail» courier delivery

On average, delivery takes 1-2 days.

Pickup from the office

You can pick up an order from our office in the city of Kiev: st. Liteiny 7. Schedule: Mon – Fri from 9:00 to 18:00.

Type		Аккумуляторная батарея свинцово-кислотная, герметичная, необслуживаемая (VRLA AGM)
Number of cells		6
Rated voltage		12 В
Float charge at 25°C		13,6 - 13,8 B
Cyclic charge at 25°C		14,5-14,9 B
Capacity (at 25°C)	20 ч. (1.75 В/ел)	18 Ач
	5 hr (1.75 V/cell)	16,7 Ач
	1 hr (1.6 V/cell)	11,7 Ач
Dimensions	Длина	181 мм ±2
	Width	76 мм ±1
	Height	167 мм ±2
	Total height	167 мм ±2
Weight		5,7±3%
Terminal type		Т3( клемма диаметром 5,5)/Т8
Internal resistance (at full charge)		≤ 10,5mΩ
Self-discharge	6 месяцев	82%
	9 months	73%
	12 months	64%
Rated operating temperature		25 ± 3 °C
Operating temperature range	Разряд	от -20°C до 60°C
	Charge	от -20°C до 60°C
	Storage	от -20°C до 60°C
Струм краткого замыкания		540 A
Terminal material		Медь
Housing material		ABS- пластик (UL94-HB) / Огнестойкий ABS (UL94-V0)
Режим постоянного подзаряда		Uе=2,27 В/ел
Service life in float mode		10 лет
