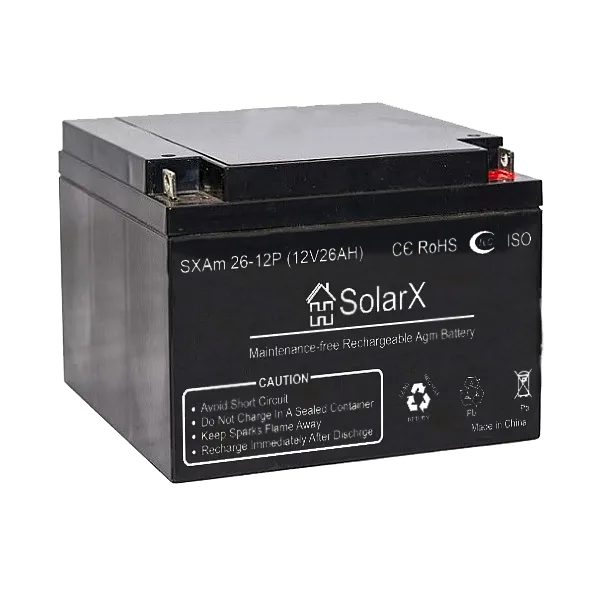

Battery SolarX SXAm 26-12P
Specify the price at the manager
12 місяців
в Україні
поставка
підтримка
SolarX SXAm series 12P batteries are deep-cycle traction batteries for electric motors installed in electric wheelchairs for people with disabilities. They are also approved for use in emergency power systems, communication equipment, alarm systems, telecommunications systems, automatic telephone exchanges, marine equipment, wheelchairs, electric vehicles, uninterruptible power supplies, medical equipment, fire and security systems, in any position.
Application area of SolarX batteries.
Designed for accumulating, storing and transmitting electrical energy in the following fields:
- communication equipment, telecommunications
- electronic equipment
- security alarm systems
- emergency lighting systems
- IT industry
- medicine
- wide use of uninterruptible power supply systems in alternative energy.
Main advantages:
- Long service life (for high-capacity SXA-SXG series (100-200 Ah)) of 12-15 years in float mode.
- Only virgin raw materials are used in production.
- Technical quality control at every stage, from production to shipment to the customer (completely eliminates the risk of defective products).
- No harmful impact on the environment or human life.
- The heat-resistant material of the sealed casing ensures maximum safety when using SolarX batteries.
- A wider operating temperature range and support for higher discharge current expand the range of applications.
- The high-density gel electrolyte improves battery efficiency, significantly extending the service life of SolarX batteries and making their use safer. If the casing is damaged, the electrolyte will not leak, so it will not harm the environment.
Complies with the following standards:
- GB/T 19639.1-2005
- IEC60896-21/22:2004
- IEC61056-1/2 :2002
- BS 6290-4:1997
- JIS C 8702-1/2 :2009
Delivery «New Mail»
On average, delivery takes 1-2 days. If necessary, our managers can tell you the exact date and cost of delivery. This delivery method is suitable for people who want to quickly receive their order.
Delivery «New Mail» courier delivery
On average, delivery takes 1-2 days.
Pickup from the office
You can pick up an order from our office in the city of Kiev: st. Liteiny 7. Schedule: Mon – Fri from 9:00 to 18:00.
| Battery type | AGM |
Номинальное напряжение Udc |
12 В |
| Capacity | 26 Ач |
| Weight | 9.7 кг± 3% |
| Dimensions (LxWxH) | 175±2 x 166±2 x 125±2 мм |
| Total height | 125±2 мм |
| Maximum charge current | 7.8 А |
| Maximum discharge current | 390 А (5 сек) |
Напряжение подзаряда |
13,5 - 13,8 В |
Напряжение заряда при циклическом режиме |
14,5 - 15.0 В |
| Self-discharge | 3% |
| Terminal material | Медь |
Полярность клемм |
Евро (плюсовая клемма с правой стороны) |
Внутренне сопротивление |
12 мОм |
| Terminal type | Т8(под болт)/Т3( под болт и гайку) |
| Operating temperature | 25±3 °С |
| Operating temperature range | -20...+60 °С |
Температура заряда |
-20...+60 °С |
| Storage temperature | -20...+60 °С |
| Housing material | ABS (UL94-HB) /Огнестойкий ABS(UL94-V0) |
Срок эксплуатации в буферном режиме (20 °С) |
10 лет |
