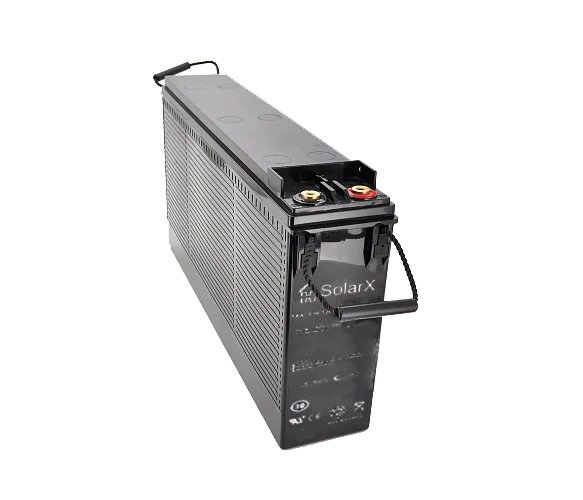

Battery SolarX SXAf 100-12LL
Specify the price at the manager
12 місяців
в Україні
поставка
підтримка
Battery SolarX SXAf 100-12LL is made using AGM technology.
The batteries are designed for use in uninterruptible power supplies with a nominal voltage of series-connected batteries of 192V. SolarX batteries are compatible with APC UPS units, in particular APC Symmetra PX, Eaton, SolarX, Borri, INVT and others.
Application area of SolarX batteries.
Designed for accumulating, storing and transferring electrical energy in such fields as:
- communication equipment, telecommunications
- electronic equipment
- security alarm systems
- emergency lighting systems
- IT industry
- medicine
- wide use of uninterruptible power supply systems in alternative energy.
Main advantages:
- Long service life in float mode.
- Only virgin raw materials are used in production.
- Technical quality control at every stage, from production to shipment to the customer (completely eliminates the risk of defective products).
- No harmful impact on the environment or human life.
- The heat-resistant material of the sealed casing ensures maximum safety when using SolarX batteries.
- A wider operating temperature range and support for higher discharge current expand the range of applications.
- The number of charge-discharge cycles is 600
8.Design life according to Eurobat is 15 years (VERY LONG LIFE).
Delivery «New Mail»
On average, delivery takes 1-2 days. If necessary, our managers can tell you the exact date and cost of delivery. This delivery method is suitable for people who want to quickly receive their order.
Delivery «New Mail» courier delivery
On average, delivery takes 1-2 days.
Pickup from the office
You can pick up an order from our office in the city of Kiev: st. Liteiny 7. Schedule: Mon – Fri from 9:00 to 18:00.
| Type | Аккумуляторная фронт-терминальная батарея свинцово-кислотная, |
||
| Number of cells | 6 |
||
| Rated voltage | 12 В |
||
Номинальное напряжение содержание аккумуляторов (20 ° C) |
13,7 - 13,9 B |
||
Циклический режим (20 ° C) |
14,5 - 14,8 B |
||
Номинальная емкость |
100 Ач |
||
| Capacity (at 20°C) | 20 ч. (1.75 В/ел) |
100 Ач |
|
5 ч. (1.8 В/ел) |
87 Ач |
||
1 ч. (1.75 В/ел) |
71 Ач |
||
| Dimensions | Длинна |
565 мм ±1 |
|
| Width | 110 мм ±1 |
||
| Height | 227 мм ±1 |
||
| Total height | 235 мм ±1 |
||
| Weight | 36,5кг±3% |
||
| Terminal type | T11(під болт М8) |
||
| Internal resistance (at full charge) | ≤ 4mΩ |
||
| Self-discharge | 6 месяцев |
82% |
|
| 9 months | 73% |
||
| 12 months | 64% |
||
| Rated operating temperature | 25 ± 5 °C |
||
| Operating temperature range | Разряд |
от -40°C до 60°C |
|
| Charge | от -40°C до 60°C |
||
| Storage | от -40°C до 60°C |
||
| Maximum charge current | 40 A |
||
| Terminal material | Медь |
||
| Housing material | ABS (UL94-HB) / Огнеупорный ABS (UL94-V0) |
||
| Maximum discharge current | 1200 A |
||
Классификация в соответствии до Eurobat |
Very Long Life |
||
Срок эксплуатации в соответствии до Eurobat |
15 лет |
||
