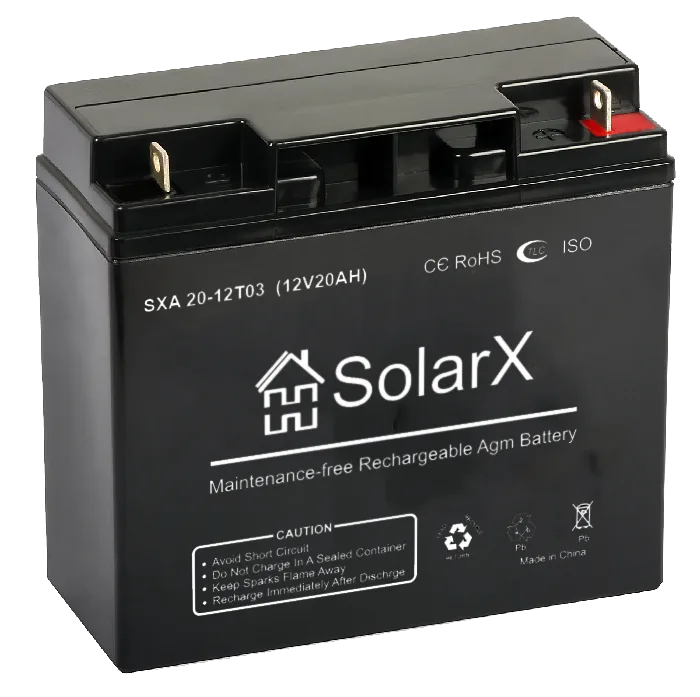

Battery SolarX SXA 20-12T03
Specify the price at the manager
12 місяців
в Україні
поставка
підтримка
Application area of SolarX batteries.
Designed for accumulating, storing and transmitting electrical energy in the following fields:
- communication equipment, telecommunications
- electronic equipment
- security alarm systems
- emergency lighting systems
- IT industry
- medicine
- wide use of uninterruptible power supply systems in alternative energy.
Main advantages:
- Long service life (for high-capacity SXA-SXG series (100-200 Ah)) of 12-15 years in float mode.
- Only virgin raw materials are used in production.
- Technical quality control at every stage, from production to shipment to the customer (completely eliminates the risk of defective products).
- No harmful impact on the environment or human life.
- The heat-resistant material of the sealed casing ensures maximum safety when using SolarX batteries.
- A wider operating temperature range and support for higher discharge current expand the range of applications.
- The high-density gel electrolyte improves battery efficiency, significantly extending the service life of SolarX batteries and making their use safer. If the casing is damaged, the electrolyte will not leak, so it will not harm the environment.
Delivery «New Mail»
On average, delivery takes 1-2 days. If necessary, our managers can tell you the exact date and cost of delivery. This delivery method is suitable for people who want to quickly receive their order.
Delivery «New Mail» courier delivery
On average, delivery takes 1-2 days.
Pickup from the office
You can pick up an order from our office in the city of Kiev: st. Liteiny 7. Schedule: Mon – Fri from 9:00 to 18:00.
| Type | Аккумуляторна батарея свинцево-кислотная, герметична, необслуговуваная (AGM) |
|
| Number of cells | 6 |
|
| Rated voltage | 12 В |
|
Буферный заряд режим |
13,5 - 13,8 B |
|
| Cyclic mode | 14,4-15,0 B |
|
| Capacity (at 20°C) | С20 (1.75 В/ел) |
20 Ач |
С5 (1.75 В/ел) |
17,8 Ач |
|
| C1 (1.6 V/cell) | 13,2 Ач |
|
| Dimensions | Длина |
181 мм ±1 |
| Width | 76 мм ±1 |
|
| Height | 166 мм ±1 |
|
| Total height | 166 мм ±1 |
|
| Weight | 6,55±3% |
|
| Terminal type | В1 |
|
| Internal resistance (at full charge) | ≤ 11mΩ |
|
| Self-discharge | 6 месяцев |
82% |
| 9 months | 73% |
|
| 12 months | 64% |
|
| Rated operating temperature | 25 ± 3 °C |
|
| Operating temperature range | Разряд |
от -20°C до 60°C |
| Charge | от -20°C до 60°C |
|
| Storage | от -20°C до 60°C |
|
| Maximum charge current | 6 A |
|
| Terminal material | Медь |
|
| Housing material | Газонепроницаемая пластмаса ABS (UL94-HB) / Огнестойкий ABS (UL94-V0) |
|
| Maximum discharge current | 200 A |
|
| Service life | 10 лет |
|
| Warranty | 18 месяцев |
|
