Battery SolarX SXA 1.3-12T01
Specify the price at the manager
12 місяців
в Україні
поставка
підтримка
SolarX batteries are universal, have a sealed design and are approved for use in emergency power systems, communication and laboratory equipment, security and telecommunication systems, marine equipment, wheelchairs, electric vehicles, uninterruptible power supplies, medical equipment, fire and security systems, in any position. Each cell of the battery is equipped with a valve system to protect the battery from pressure rise.
The number of charge-discharge cycles is 400 full cycles (100% discharge).

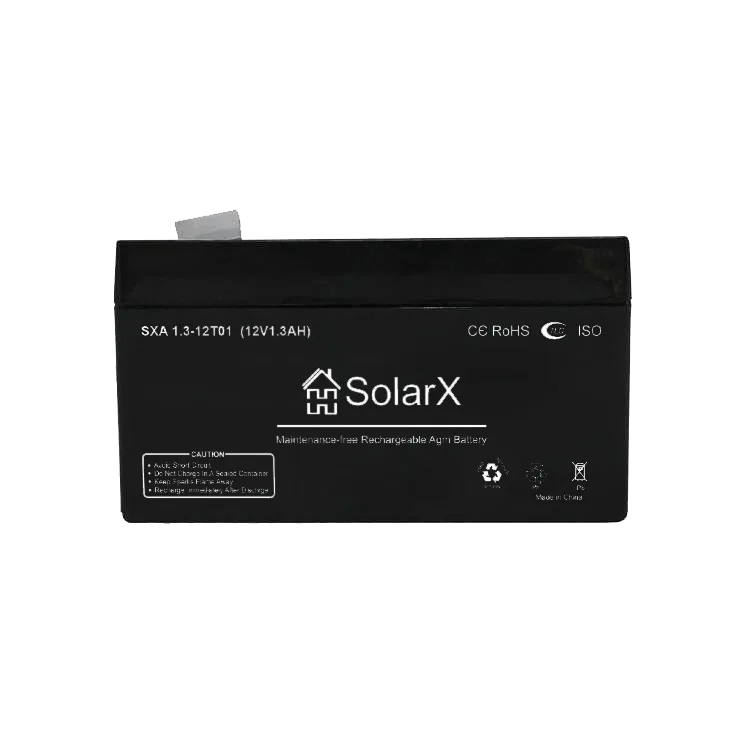

Battery SolarX SXA 1.3-12T01 (12V 1.3Ah) is made using AGM technology.
Application area of SolarX batteries.
Designed for accumulating, storing and transferring electrical energy in such fields as:
- communication equipment, telecommunications
- electronic equipment
- security alarm systems
- emergency lighting systems
- IT industry
- medicine
- wide use of uninterruptible power supply systems in alternative energy.
Main advantages:
- Long service life (SXA-SXG большой емкости (100-200 А/ч) of 12-15 years in float mode.
- Only virgin raw materials are used in production.
- Technical quality control at every stage, from production to shipment to the customer (completely eliminates the risk of defective products).
- No harmful impact on the environment or human life.
- The heat-resistant material of the sealed casing ensures maximum safety when using SolarX batteries.
- A wider operating temperature range and support for higher discharge current expand the range of applications.
Delivery «New Mail»
On average, delivery takes 1-2 days. If necessary, our managers can tell you the exact date and cost of delivery. This delivery method is suitable for people who want to quickly receive their order.
Delivery «New Mail» courier delivery
On average, delivery takes 1-2 days.
Pickup from the office
You can pick up an order from our office in the city of Kiev: st. Liteiny 7. Schedule: Mon – Fri from 9:00 to 18:00.
| Type | Аккумуляторная батарея свинцово-кислотная, |
||
| Number of cells | 6 |
||
| Rated voltage | 12 В |
||
| Float charge (at 25°C) | 13,6 – 13,8 B |
||
| Cyclic charge (at 25°C) | 14,5 – 14,9 B |
||
| Capacity | 20 ч. (1.75 В/ел) |
1,3 Ач |
|
| 5 hr (1.75 V/cell) | 1,2 Ач |
||
| 1 hr (1.6 V/cell) | 0,89 Ач |
||
| Dimensions | Длинна |
96 мм ±1 |
|
| Width | 42 мм ±1 |
||
| Height | 48 мм ±1 |
||
| Total height | 53 мм ±1 |
||
| Weight | 0,6±3% |
||
| Terminal type | T1(F1)/T2(F2) |
||
| Internal resistance (at full charge) | ≤ 53mΩ |
||
| Self-discharge | 6 месяцев |
82% |
|
| 9 months | 73% |
||
| 12 months | 64% |
||
| Rated operating temperature | 25°C ± 3 °C |
||
| Operating temperature range | Разряд |
от -20°C до 60°C |
|
| Charge | от -20°C до 60°C |
||
| Storage | от -20°C до 60°C |
||
Ток заряда |
0,13 A |
||
| Terminal material | Медь |
||
| Housing material | ABS (UL94-HB) / Огнеупорный ABS (UL94-V0) |
||
| Maximum discharge current | 18 A |
||
| Service life | 10 лет |
||
* Производитель оставляет за собой право вносить изменения в конструкцию изделия без дополнительного уведомления.
